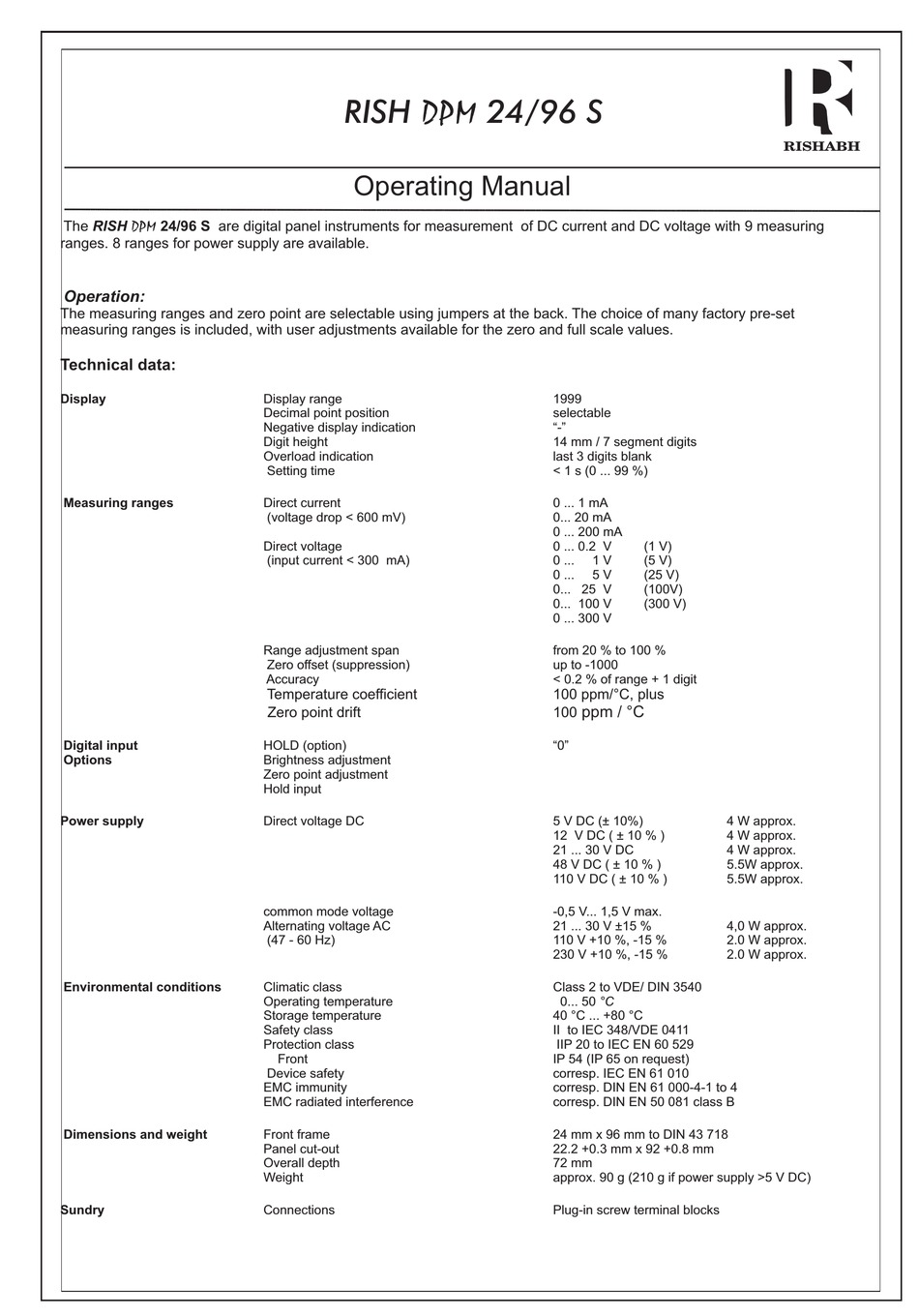

Rishabh RISH DPM 24/96 S Operating Manual

The RlSH DPM 24/96 S are digital panel instruments for measurement of DC current and DC voltage with 9 measuring
ranges. 8 ranges for power supply are available.
Operation:
The measuring ranges and zero point are selectable using jumpers at
measuring ranges is included, with user adjustments available for the zero and full scale values.
Technical data:
Display
Measuring ranges
Digital input
Options
Power supply
Environmental conditions
Dimensions and weight
Sundry
RISH DPM 24/96 S
Operating Manual
Display range
Decimal point position
Negative display indication
Digit height
Overload indication
Setting time
Direct current
(voltage drop < 600 mV)
Direct voltage
(input current < 300 mA)
Range adjustment span
Zero offset (suppression)
Accuracy
Temperature coefficient
Zero point drift
HOLD (option)
Brightness adjustment
Zero point adjustment
Hold input
Direct voltage DC
common mode voltage
Alternating voltage AC
(47 - 60 Hz)
Climatic class
Operating temperature
Storage temperature
Safety class
Protection class
Front
Device safety
EMC immunity
EMC radiated interference
Front frame
Panel cut-out
Overall depth
Weight
Connections
the back. The choice of many factory pre-set
1999
selectable
"-"
14 mm / 7 segment digits
last 3 digits blank
< 1 s (0 ... 99 %)
0 ... 1 mA
0... 20 mA
0 ... 200 mA
0 ... 0.2 V (1 V)
0 ... 1 V (5 V)
0 ... 5 V (25 V)
0... 25 V (100V)
0... 100 V (300 V)
0 ... 300 V
from 20 % to 100 %
up to -1000
< 0.2 % of range + 1 digit
100 ppm/°C, plus
ppm / °C
100
"0"
5 V DC ( 10%) ±
12 V DC ( ± 10 % )
21 ... 30 V DC
48 V DC ( ± 10 % )
110 V DC ( ± 10 % )
-0,5 V... 1,5 V max.
21 ... 30 V ±15 %
110 V +10 %, -15 %
230 V +10 %, -15 %
Class 2 to VDE/ DIN 3540
0... 50 °C
40 °C ... +80 °C
II to IEC 348/VDE 0411
IIP 20 to IEC EN 60 529
IP 54 (IP 65 on request)
corresp. IEC EN 61 010
corresp. DIN EN 61 000-4-1 to 4
corresp. DIN EN 50 081 class B
24 mm x 96 mm to DIN 43 718
22.2 +0.3 mm x 92 +0.8 mm
72 mm
approx. 90 g (210 g if power supply >5 V DC)
Plug-in screw terminal blocks
4 W approx.
4 W approx.
4 W approx.
5.5W approx.
5.5W approx.
4,0 W approx.
2.0 W approx.
2.0 W approx.
