OPERATING MANUAL

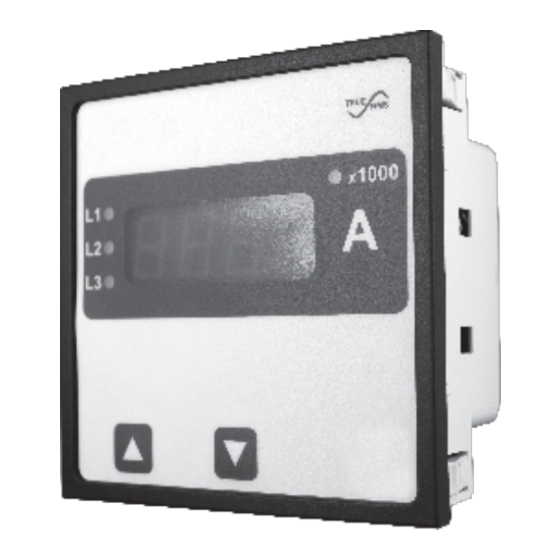

Rish Eine
Size: 48 x 96
Size: 96 x 96
DMAN-00IM-0637 Rev_B 12/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rish Eine and is the answer not in the manual?

Questions and answers

Related Manuals for Rishabh Rish Eine

Summary of Contents for Rishabh Rish Eine

  • Page 1 OPERATING MANUAL Rish Eine Size: 48 x 96 Size: 96 x 96 DMAN-00IM-0637 Rev_B 12/2017...

  • Page 2: Table Of Contents

    Rish Eine PROGRAMMABLE DPM V/A AC Volt Meter (3 ) : Eine - 3V Φ AC Ammeter (3 ) : Eine - 3A Φ AC Volt Meter (1 ) : Eine - V Φ AC Ammeter (1 ) : Eine - A Φ...

  • Page 3: Introduction

    Available Models : 1. Eine 3V 2. Eine 3A 3. Eine V TRUE TRUE TRUE RISH 1000 1000 1000 1000 1000 1000 1. Introduction 4. Eine A The Eine Series is a panel mounted 96 x 96mm Digital Panel TRUE Meters for the measurement of AC Voltage and current in three phase or single phase systems.

  • Page 4: Measurement Reading Screens

    TABLE 1: Parameters Displayed TABLE 2: Parameters Displayed with Eine 3V model with Eine 3A models Measured Parameters Unit of measurement Measured Parameters Unit of measurement Ampere L1 Voltage L1 Current volt Ampere L2 Voltage L2 Current volt L3 Current L3 Voltage Ampere volt...
  • Page 5 A. Display Screens of Eine 3V Models : Screen 1 : Voltage L1 Screen 2 : System Voltage (value displayed after “Sys” flashing on Display) TRUE TRUE 1000 1000 1000 1000 B. Screens of EINE 3A Models : Screen 1 : L1 Current Screen 2 : System Current (Value displayed after “Sys”...

  • Page 6: Set Up Screens

    C. Display Screens of Eine V/A Models : TRUE TRUE 1000 1000 1000 1000 3. Programming The following sections comprise step by step procedures for configuring the EINE 3A/ A and EINE 3V/V for individual user requirements. To access the set-up screens press and hold the “...
  • Page 7 System Type Confirmation This screen will only appear following the edit of system type. TRUE If system type is to be edit again, Pressing the “ up” key will scroll between “3“ for 3 phase 1000 1000 3 Wire and “4” for 3 Phase 4 Wire. Pressing the “...
  • Page 8 pressing the “ ” key will advance to the “Potential transformer TRUE Primary Value Confirmation” screen. For Eine 3 V: When PT primary is set < 100VLL then meter shows”Err” & again goes to PT 1000 1000 primary edit stage with the minimum PT primary value i.e. 100VLL Eine -V: When PT primary is set less than 57.5 VLN then meter shows “Err”...
  • Page 9 Current Transformer Primary value Edit TRUE Pressing the “ ” key will scroll the value of the most significant digit. 1000 1000 Pressing the “ ” key accepts the present value at the cursor position and advances the cursor to the next Less significant digit. When the least significant digit has been set, pressing the “...
  • Page 10 Pressing the “ ” key accepts the present value and advances TRUE to the “Auto scroll” selection menu(See Section 3.1.6) for 3V. In case of Eine V it will exit from set up menu. 1000 1000 Pressing the “ ” key will enter the “Potential transformer Secondary Value Most significant digit Selection.
  • Page 11 Current transformer Secondary confirmation screen: TRUE When " " down key is pressed , set message screen will appear, if again down key is pressed value is accepted. 1000 1000 If CT secondary value is to be edit once again,pressing " " up key user can scroll between ''5'' for CT secondary 5A and "1"...

  • Page 12: Installation

    4. Installation Mounting of EINE is featured with easy “Clip- in” mounting. Push the meter in panel slot (size 92 x92 mm), it will click fit into panel with the four integral retention clips on two sides of meter. If required Additional support is provided with swivel screws (optional) as shown in figure. As the front of the enclosure conforms to IP 50.

  • Page 13: Emc Installation Requirements

    Caution 1. In the interest of safety and functionality this product must be installed by a qualified engineer, abiding by any local regulations. 2. Voltages dangerous to human life are present at some of the terminal connections of this unit. Ensure that all supplies are de-energised before attempting any connection disconnection.

  • Page 14: Case Dimensions And Panel Cut-Out

    4.2 Case Dimensions and Panel Cut Out 4.2.1 for 96X96 models 27 mm 96 mm 92mm+0.8 Front Display Area Panel Cutout 6 mm 35 mm MAX PANEL THICKNESS 0.18”,5mm 4.2.2 for 48X96 models Mounting Position Installation Cutout...

  • Page 15: Wiring

    4.3 Wiring Input connections are made directly to screw-type terminals with indirect wire pressure. Numbering is clearly marked on the connector. Choice of cable should meet local regulations. Terminal for inputs will accept up to 4mm (12 AWG) or 2.5mm (12AWG)Standard Note : 1) It is recommended to use wire with lug for connection with meter.
  • Page 16 Connections for EINE 3A 96X96 AUX SUPPLY AUX SUPPLY 3-PHASE 3-WIRE UNBALANCED LOAD 3-PHASE 4-WIRE UNBALANCED LOAD DIGITAL PANEL METER (External Aux.) DIGITAL PANEL METER (External Aux.) Connections For EINE A 96X96 Connections For EINE V 96X96 AUX SUPPLY AUX SUPPLY SINGLE PHASE 2-WIRE SINGLE PHASE 2-WIRE DIGITAL PANEL METER (External Aux.)
  • Page 17 5.2 For 48x96 DPM Connections for EINE 3V 48 x 96mm AUX SUPPLY AUX SUPPLY 3-PHASE 4-WIRE UNBALANCED LOAD 3-PHASE 3-WIRE UNBALANCED LOAD DIGITAL METERING SYSTEM DIGITAL METERING SYSTEM (WITH EXTERNAL AUX.) (WITH EXTERNAL AUX.) Connections for EINE 3A 48 x 96mm AUX SUPPLY AUX SUPPLY 3-PHASE 3-WIRE UNBALANCED LOAD...

  • Page 18: Specifications

    Connections For EINE V 48 x 96mm Connections For EINE A 48 x 96mm AUX SUPPLY AUX SUPPLY SINGLE PHASE 2-WIRE SINGLE PHASE 2-WIRE DIGITAL PANEL METER (External Aux.) DIGITAL PANEL METER (External Aux.) 6. Specifications : Input voltage (3V /V) : Nominal Input Voltage Ranges Line - Neutral Line - Line...
  • Page 19 Input current (3A / A) : Nominal Input Current Ranges 1A and 5A AC RMS System CT Primary values 1A to 999kA Programmable onsite Max continuous input current 120% of rated value Nominal input current burden <0.2VA approx. per phase Overload Indication : “-oL-”...
  • Page 20 Reference conditions for Accuracy : 20...100% of Nominal Value Voltage Range 10...100% of Nominal Value Current Range Accuracy + 0.5% of Nominal value. Voltage (3V / V) + 0.5% of Nominal value. Current (3A / A) Measurement error is normally much less than errors specified in the above. Variation due to influence quantity is less than twice the error allowed for reference condition.
  • Page 21 Environmental conditions Operating temperature 0 to 50 C Storage temperature -25 to 70 C Relative humidity 0 .. 90 % (Non condensing) Warm up time Minimum 3 minute Shock 15g in 3 planes Vibration 10 .. 55 Hz, 0.15mm amplitude Enclosure Front IP50...
