Rishabh RISH Master 3440 Operating Manual

Multi-function digital meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Manual
RISH Master 3440
%THD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RISH Master 3440 and is the answer not in the manual?

Questions and answers

Related Manuals for Rishabh RISH Master 3440

Summary of Contents for Rishabh RISH Master 3440

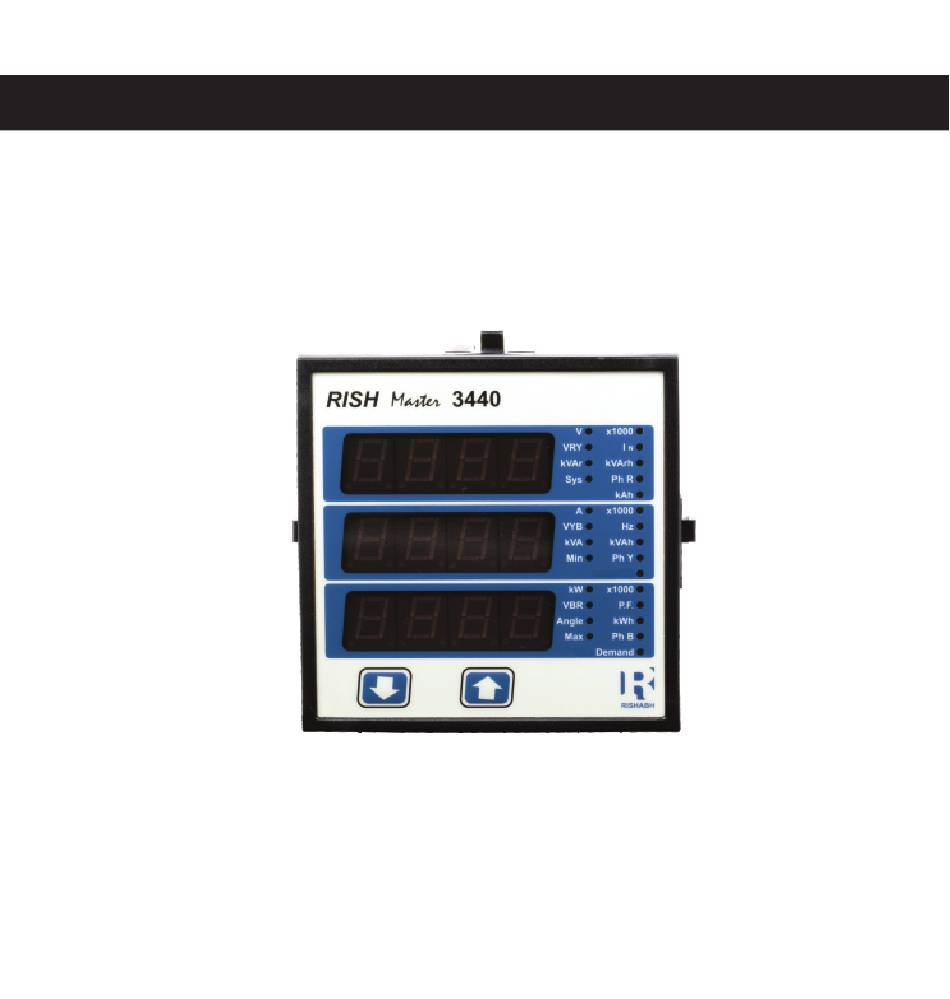

  • Page 1 Operating Manual RISH Master 3440 %THD...

  • Page 3: Table Of Contents

    INDEX Multi-function Digital Meter Installation & Operating Instructions Section Contents Introduction Measurement Reading Screens Programming 3.1 Password Protection 3.2 Menu selection 3.2.1 System Parameter selection screen 3.2.1.1 System type 3.2.1.2 Potential transformer Primary value 3.2.1.3 Potential transformer secondary value 3.2.1.4 Current transformer Primary value 3.2.1.5 Current transformer Secondary value 3.2.1.6 Demand integration time 3.2.1.7 Auto Scrolling...
  • Page 4 3.2.3 Reset Parameter selection screen 3.2.3.1 Resetting Parameter 3.2.4 Output Option selection screen (menu) 3.2.4.1 Conguration of Output 3.2.4.1.1 Relay 1 output selection menu 3.2.4.1.1.1 Pulse output 3.2.4.1.1.1.1 Assignment of Energy to Pulse (Relay 1) 3.2.4.1.1.1.2 Pulse Duration Selection 3.2.4.1.1.1.3 Pulse Rate 3.2.4.1.1.2 Limit output 3.2.4.1.1.2.1 Assignment of Limit Output1 to Parameter 3.2.4.1.1.2.2 Limit Conguration...
  • Page 5 RS 485 (Modbus) output User Assignable modbus Registers Phaser Diagram Installation 11.1 EMC Installation Requirements 11.2 Case Dimensions and Panel Cut-out 11.3 Wiring 11.4 Auxiliary Supply 11.5 Fusing 11.6 Earth / Ground Connections Connection Diagrams Specication Connection for Optional Pulse output / RS 485 / Analog / Ethernet Output...

  • Page 6: Introduction

    1. Introduction The 3440 is a panel mounted 96 x 96mm DIN Quadratic Digital metering system for the measurement important electrical parameters like AC voltage, AC Current, Frequency, Power, Energy(Active / Reactive / Apparent) . The instrument integrates accurate measurement technology (All Voltages & Current measurements are True RMS upto 15th Harmonic) with 3 line 4 digits Ultra high brightness LED display.
  • Page 7 TABLE 1: Units of Measured Parameters Measurement Volts System Voltage Amps System Current Volts Voltage VL1-N(4wire only) Volts Voltage VL2-N(4wire only) Volts Voltage VL3-N(4wire only) ( for 3 / 4 wire) Volts Voltage VL1-L2 ( for 3 / 4 wire) Volts Voltage VL2-L3 ( for 3 / 4 wire)
  • Page 8 Units of Measured Parameters Measurement Current Demand Amps KVA Demand KW Import Demand KW Export Demand Amps Max Current Demand Max kVA Demand Max KW Import Demand Max KW Export Demand Hours Run Hour On Hour Hours Counts Number of Interruptions Phase Reversal Indication ( 4 wire only ) ( for 3 / 4 wire) V1 THD*...

  • Page 9: Measurement Reading Screens

    Measurement Reading Screens In normal operation the user is presented with one of the measurement reading screens out of several screens. These screens may be scrolled through one at a time in incremental order by pressing the “ Up key” and in decremental order by pressing “...
  • Page 10 Parameter Screens 3 Phase Phase Power Factor R* System Voltage Reactive Phase Power Factor Y* System Current Energy Hour Phase Power Factor B* System Active Power Export R Phase V L-N* Current Apparent Y Phase V L-N* Demand Energy Hour B Phase V L-N* VRY V L-L No.

  • Page 12: Programming

    3. Programming The following sections comprise step by step procedures for configuring the 3440 for individual user requirements. To access the set-up screens press and hold the “ Down” and “ Up” Key simultaneously for 5 seconds. This will take the User into the Password Protection Entry Stage (Section 3.1).
  • Page 13 x1000 KVAr KVArh Ph R x1000 KVAh Ph Y %THD x1000 P.F. Angle Ph B Demand Enter Password, second digit entered, prompt for third x1000 digit. KVAr KVArh (* Denotes that decimal point will be flashing). Ph R x1000 Use the “ Down”...
  • Page 14 Enter Password, fourth digit entered, awaiting x1000 verification of the password. KVAr KVArh Ph R x1000 KVAh Ph Y %THD x1000 P.F. Angle Ph B Demand x1000 KVAr KVArh Ph R x1000 Password confirmed. KVAh Ph Y %THD Pressing “ Down”...
  • Page 15 New / Change Password x1000 (*Decimal point indicates that this will be flashing). KVAr KVArh Ph R Pressing the “ Down” key will scroll the value of the x1000 first digit from 0 through to 9, the value will wrap from 9 KVAh Ph Y round to 0.

  • Page 16: Menu Selection

    New / Change Password, third digit entered, prompting for fourth digit. (* denotes that decimal point will be x1000 KVAr KVArh flashing). Ph R Pressing the “ Down” key will scroll the value of the x1000 fourth digit from 0 through to 9, the value will wrap from KVAh Ph Y 9 round to 0.

  • Page 17: Reset Parameter Selection Screen

    3.2.2 Communication Parameter selection screen. This screen is used to select the different communication x1000 parameters like “Address selection”,”RS485 Parity selection”, KVAr KVArh Ph R ”Rs485 baud rate” x1000 Pressing the “ Up” key allows the user to set different KVAh Ph Y %THD...

  • Page 18: System Type

    3.2.5 Quit screen. x1000 Pressing the “ Up” key will allow the user to Quit KVAr KVArh Ph R from menu & return to measurement screen. x1000 KVAh Ph Y %THD x1000 P.F. Angle Ph B Demand 3.2.1 System parameters Selection 3.2.1.1 System Type x1000 This screen is used to set the system type .

  • Page 19: Potential Transformer Primary Value

    System Type Confirmation This screen will only appear following the edit of x1000 system type. If system type is to be Downed again, KVAr KVArh Ph R Pressing the “ Up” key sets the displayed value and x1000 will advance to “Potential Transformer Primary Value KVAh Ph Y %THD...
  • Page 20 Potential Transformer Primary Digit Edit x1000 Pressing the “ Down” key will scroll the value of KVAr KVArh Ph R the most significant digit from 0 through to 9 unless x1000 the presently displayed Potential Transformer Primary KVAh Ph Y Value together with the Current Transformer Primary %THD x1000...

  • Page 21: Potential Transformer Secondary Value

    Potential Transformer Primary Value Confirmation This screen will only appear following an edit of the x1000 KVAr KVArh Potential Transformer Primary Value. Ph R x1000 If the scaling is not correct, pressing the “ Down” KVAh key will return to the “Potential Transformer Primary Ph Y %THD Value Edit”...

  • Page 22: Current Transformer Primary Value

    Note : the flashing decimal point indicates the cursor position, a steady decimal point will be present to identify the scaling of the number until the cursor position coincides with the steady decimal point position. At this stage the decimal point will flash. When the least significant digit has been set pressing the “...
  • Page 23 Primary Value results in a maximum power of x1000 greater than 666.6 MVA in which case the digit KVAr KVArh range will be restricted, the value will wrap. Ph R Example: If primary value of PT is set as x1000 KVAh 692.8kV L-L (max value) then primary value Ph Y...

  • Page 24: Current Transformer Secondary Value

    3.2.1.5 Current Transformer Secondary Value This screen is used to set the secondary value for Current Transformer. Secondary value “5” for 5A or x1000 KVAr KVArh “1” for 1A can be selected. Pressing “ Up” key Ph R accepts the present value and advances to the x1000 Demand integration Time (See Section 3.2.1.6) KVAh...

  • Page 25: Auto Scrolling

    . P ressing the “ Down” key will scroll through the Folliowing Options 8,15,20,30. x1000 KVAr KVArh Ph R Pressing the “ Up” key will advance to Demand x1000 Integration confirmation screen. KVAh Ph Y %THD x1000 P.F. x1000 Angle Ph B KVAr KVArh...

  • Page 26: Low Current Noise Cutoff

    3.2.1.8 Low Current noise cutoff. This screen allows the user to set Low noise current cutoff in mA. Low current cutoff Edit. x1000 Pressing “ Up” key accepts the present value and KVAr KVArh Ph R advance to Energy Display on Modbus. (See section 3.2.1.9) x1000 KVAh...

  • Page 27: Energy Digit Reset Count

    Pressing the “ Down” key will enter the “Energy Display On Modbus Edit” mode and scroll the value x1000 through the values 1,2 & 3 wrapping back to 1 KVArh KVAr Ph R 1 : Energy In Wh x1000 x1000 2 : Energy in KWh KVAh KVAh...

  • Page 28: Communication Parameter Selection Screen

    Pressing the “ Up” key sets the displayed value and will jump back to the system parameter selection x1000 x1000 (See Section 3.2.1) KVArh KVArh KVAr KVAr Ph R Ph R Pressing the “ Down” key will enter the Energy digit x1000 x1000 reset count edit mode.
  • Page 29 The range of allowable address is 1 to 247 . x1000 KVAr KVArh Enter Address, prompt for first digit. Ph R x1000 (* Denotes that decimal point will be flashing). KVAh Ph Y %THD Press the “ Down” key to scroll the value of the first digit x1000 P.F.

  • Page 30: Rs 485 Baud Rate

    3.2.2.2 RS 485 Baud Rate : This screen allows the user to set Baud Rate of RS 485 port. x1000 The values displayed on screen are in kbaud .. KVAr KVArh Ph R Pressing “ Up” key accepts the present value and x1000 advance to the Parity Selection (See Section 3.2.2.3) KVAh...

  • Page 31: Resetting Parameter

    RS 485 Parity confirmation : x1000 KVAr KVArh Ph R Pressing “ Down” key will be re-enter into Parity Edit mode. x1000 KVAh Ph Y Pressing the “ Up” key will set the value. %THD x1000 P.F. Pressing the “ Up”...
  • Page 32 Reset ALL Confirmation. x1000 KVAr KVArh Ph R Pressing the “ Down” key will re-enter the Reset option Select mode. x1000 KVAh Ph Y %THD Pressing “ Up” key will jump back to the x1000 P.F. Reset Parameter selection screen (see section 3.2.3). Angle Ph B Demand...
  • Page 33 Reset option select, (Resets all Energies) x1000 KVAr KVArh The user has scrolled through to the “E” Energy Ph R value. x1000 KVAh Ph Y %THD Pressing “ Up” key will select the value and x1000 P.F. advance to the “Reset Energy Confirmation” Mode. Angle Ph B &...
  • Page 34 Reset hI (Max) Confirmation. x1000 x1000 KVAr KVAr KVArh KVArh Ph R Ph R Pressing the “ Down” key will re-enter the x1000 x1000 “Reset option Select mode. KVAh KVAh Ph Y Ph Y Demand %THD Pressing “ Up” key will jump back to the x1000 x1000 P.F.
  • Page 35 Reset hr Confirmation x1000 x1000 KVAr KVAr KVArh KVArh Pressing the “ Down” key will re-enter the Ph R Ph R “Reset option Select mode. x1000 x1000 KVAh KVAh Ph Y Ph Y Pressing “ Up” key will jump back to the Demand %THD x1000...

  • Page 36: ConGuration Of Output

    3.2.4. Output Option selection menu 3.2.4.1 Configuration of Output This screen applies to the Relay1 Output option Selection . x1000 x1000 KVAr KVAr KVArh KVArh Ph R Ph R Pressing “ Up” key will select the x1000 x1000 KVAh KVAh (See section 3.2.4.1.1) Relay1 output selection menu Ph Y...

  • Page 37: Relay1 Output Selection Menu

    This screen allows the user to quit the output option x1000 KVAr KVArh Ph R Pressing “ Up” key will advance to the x1000 Output Parameter selection (See section 3.2.4) KVAh Ph Y %THD Pressing the “ Down” key will go back to x1000 P.F.

  • Page 38: Assignment Of Energy To Pulse (Relay 1)

    3.2.4.1.1.1.1 Assignment of Energy to pulse output (Relay 1) : This screen allows the user to assign pulse output to energy (for Relay 1) Pressing “ Up” key accepts the present setting and advance to “Pulse duration selection” x1000 KVAr KVArh (see section 3.2.4.1.1.1.2).

  • Page 39: Pulse Rate

    Pulse Duration Edit. x1000 Pressing “ Up” key accepts the present value and KVAr KVArh Ph R advance to pulse rate selection menu x1000 (see section 3.2.4.1.1.1.3). KVAh Ph Y %THD Pressing the “ Down” key will enter the “Pulse Duration x1000 P.F.
  • Page 40 Pressing “ Up” key accepts the presents value x1000 and advances to the “Configuration of Output” KVAr KVArh Ph R (See section 3.2.4.1). x1000 Pressing the “ Down” key will enter the “Pulse rate KVAh Ph Y %THD divisor Edit” mode and scroll the value through the values x1000 P.F.
  • Page 41 Pressing “ Up” key accepts the present value and advance to the Limit1 configuration select screen. x1000 x1000 KVAr KVAr KVArh KVArh (see section 3.2.4.1.1.2.2 ). Ph R Ph R x1000 x1000 Pressing the “ Down” key will enter the “ Limit1 KVAh KVAh Ph Y...

  • Page 42: Trip Point Selection

    Pressing the “ Down” key will enter the Limit1 configuration edit mode and scroll through the x1000 x1000 KVAr KVAr KVArh KVArh Modes available . Ph R Ph R x1000 x1000 KVAh KVAh Pressing the “ Up” key advances to the Limit1 Ph Y Ph Y %THD...
  • Page 43 The first digit entered, prompt for second digit (* Denotes that decimal point will be flashing). x1000 x1000 KVAr KVAr KVArh KVArh Ph R Ph R Use the “ Down” key to scroll the value of the second digit x1000 x1000 KVAh KVAh...

  • Page 44: Hysteresis Selection

    3.2.4.1.1.2.4 Hysteresis selection : This screen applies to the Hysteresis selection. x1000 x1000 This screen allows the user to set Hysteresis KVAr KVAr KVArh KVArh Ph R Ph R for relay1 output x1000 x1000 The allowable range is 0.5% to 50 % of Trip point . KVAh KVAh Ph Y...

  • Page 45: Energizing Delay Time

    Entered value for third digit . x1000 x1000 KVAr KVAr KVArh KVArh Ph R Ph R Press the “ Up” key to advance to Hysteresis x1000 x1000 confirmation Screen. KVAh KVAh Ph Y Ph Y Demand %THD x1000 x1000 P.F. P.F.

  • Page 46: De-Energizing Delay Time

    Energizing delay time Confirmation. x1000 x1000 This screen will appear only after edit mode of KVAr KVAr KVArh KVArh Energizing delay time Ph R Ph R x1000 x1000 pressing the “ Down” key will re-enter the “Energizing KVAh KVAh Ph Y Ph Y delay Edit”...

  • Page 47: Relay 2 Output Selection Menu

    3.2.4.1.2 Relay 2 Output Selection : Configuration of Relay 2 for Pulse or Limit Output is same as Relay 1. If you Select the Pulse output option for Relay 1 same setting will be applicable for Relay 2 except assignment of energy to Pulse output (i.e. Energy assignment of both relay can be different.) 3.2.4.1.3 Analog Output 3.2.4.1.3.1 Parameter setting for Analog Output 1 (Optional) This screen is for analog output 1 only .
  • Page 48 3.2.4.1.3.2 Parameter setting Analog Output 2 ( Optional ) This screen is for analog output 2 only . It allows the user to set analog output 2 to corresponding measured parameter . Refer table2 “ Parameter for Analog & Limit output “. Pressing “...

  • Page 49: Phase Rotation Error Screen

    4.Phase Rotation Screen : Meter shows phase rotation error if the phase sequence R-Y-B (L1-L2-L3) is not maintained This screen indicates that Phase sequence is incorrect. x1000 KVAr KVArh User must check this screen in order to get correct readings Ph R When meter is connected.

  • Page 50: Number Of Interruption

    6. Number of Interruption : This Screen Displays the total no. of times the Axillary x1000 Supply was Interrupted. Even if the Auxiliary supply is KVAr KVArh interrupted count will be maintained in internal memory. Ph R x1000 To reset No of Interruption manually see section KVAh Ph Y Resetting Parameter 3.2.3.1...
  • Page 51 Diagram 1 : ( 4 -20 mA ) 0 (12 mA) 270 (8 mA) 90 (16 mA) 181 (4 mA) 180 (20 mA) Diagram 2 : ( 0 - 1 mA ) 0 (0.5 mA) 270 (0.25 mA) 90 (0.75 mA) 181 (0 mA) 180 (1 mA)
  • Page 52 TABLE 2 : Parameter for Analog & Limit Output Range Parameter 3P 4W 3P 3W 1P 2W Analog Output Limit Output   None  – –   INPUT VOLTAGE L1 0 - 100 % 10 - 120 % ...

  • Page 53: Relay Output

    Range Parameter 1P 2W 3P 4W 3P 3W Analog Output Limit Output   10 - 120 % 27 ACTIVE POWER SUM  0 - 120 %  0 - 120 % 29 APPARENT POWER SUM   10 - 120 % ...
  • Page 54 This instrument’s pulse output can be congured to any of the following parameter through setup parameter screen 1) Active Energy (Import) 4)Reactive Energy (Export) 2) Active Energy (Export) 5)Apparent Energy 3)Reactive Energy (Import) 6)Ampere hour Energy Pulse Rate Divisor TABLE 3 : 1.For Energy Output in Wh 2.

  • Page 55: Limit Switch

    Divisors 10 CT secondary = 1A Max pulse rate 3600 pulses per 10Ah ** CT secondary = 5A Max pulse rate 720 pulses per 10Ah ** Divisors 100 CT secondary = 1A Max pulse rate 3600 pulses per 100Ah ** CT secondary = 5A Max pulse rate 720 pulses per 100Ah ** Divisors 1000 CT secondary = 1A Max pulse rate 3600 pulses per 1000Ah **...
  • Page 56 Trip point: Trip point can be set in the range of 10% to 120 % of nominal value for Hi-Alarm & 10% to 100 % of nominal value for Lo-Alarm. Hysteresis: Hysteresis can be set in the range of 0.5% to 50 % of set trip point . If Hi-alarm Energized or Hi-alarm De-energized is selected then relay will get De-energized or Energized respectively, if set parameter value is less than Hysteresis Similarly if Lo-alarm Energized or Lo-alarm De-Energized.

  • Page 57: Rs 485 (Modbus) Output

    9. RS 485 ( ModBus ) Output : This instrument supports MODBUS (RS485) RTU protocol( 2-wire ) . Connection should be made using twisted pair shielded cable. All "A" and "B" connections are daisy chained together. The screens should also be connected to the “Gnd” terminal. To avoid the possibility of loop currents, an Earth connection should be made at one point on the network.Loop (ring) topology does not require any termination load.
  • Page 58 The each byte in RTU mode has following format: 8-bit binary, hexadecimal 0-9, A-F 2 hexadecimal characters contained in each 8-bit eld of the message Format of Data Bytes 4 bytes (32 bits) per parameter. Floating point format ( to IEEE 754) Most signicant byte rst (Alternative least signicant byte rst) Error Checking Bytes 2 byte Cyclical Redundancy Check (CRC)
  • Page 59 This function code is not supported by the instrument. Illegal function Attempt to access an invalid address or an attempt to read Illegal Data or write part of a oating point value Address Attempt to set a oating point variable to an invalid value Illegal Data Value Accessing 3 X register for reading measured values:...
  • Page 60 Number of register Hi : Most signicant 8 bits of Number of registers requested. Number of register Lo : Least signicant 8 bits of Number of registers requested. (Note : Two consecutive 16 bit register represent one parameter.) Response: Volt3 (219.25V) 43 (Hex) 5B (Hex) 01 (Hex) 04 (Hex) 04 (Hex)
  • Page 61 Address Parameter Modbus Start Address Hex 1P 2W 3P 4W 3P 3W High Byte (Register) Low Byte  30015     30017     30019    30021    30023   30025 VAR1 ...
  • Page 62 Address Parameter Modbus Start Address Hex 1P 2W 3P 4W 3P 3W High Byte (Register) Low Byte 30067 Phase Angle Ave    30069 Phase Angle Sum    30071 Freq    30073 Wh Import  ...
  • Page 63 Address Parameter Modbus Start Address Hex 3P 4W 3P 3W 1P 2W High Byte (Register) Low Byte 30119 Ampere Hour    Overow Count    30133 Volts Ave Max    30135 Volts Ave Min Current Ave Max 30141 ...
  • Page 64 30221    System Current THD( % )   30225  I neutral 30227  Run Hour      30229 On Hour    30231 No. Of Interrupts Note : Parameters 1,2,3 are L-N Voltage for 3P 4W & L-L Voltage for 3P 3W . Accessing 4 X register for Reading &...
  • Page 65 Response: System Type ( 3phase 4 wire = 3 ) 01 (Hex) Device Address 03 (Hex) Function Code Byte Count 04 (Hex) Data Register1 High Byte 40 (Hex) Data Register1Low Byte 40 (Hex) Data Register2 High Byte 00 (Hex) Data Register2 Low Byte 00(Hex) EE (Hex) CRC Low...
  • Page 66 Byte Count 04 (Hex) Data Register-1High Byte 40 (Hex) Data Register-1 Low Byte 00(Hex) Data Register-2 High Byte 00(Hex) Data Register-2 Low Byte 00(Hex) 66 (Hex) CRC Low CRC High 10 (Hex) Byte Count : Total number of data bytes received. Data register 1 High Byte : Most signicant 8 bits of Data register 1 of the parameter requested.
  • Page 67 Start Address High : Most signicant 8 bits of starting address of the parameter requested. Start Address low :Least signicant 8 bits of starting address of the parameter requested. Number of register Hi : Most signicant 8 bits of Number of registers requested. Number of register Lo : Least signicant 8 bits of Number of registers requested.
  • Page 68 Parameter Modbus Start Address Hex Address Parameter Read / Write (Register) High Byte Low Byte 40037 System Power R/Wp Energy digit reset count 40039 40041 Register Order/Word Order R/Wp 40043 CT Secondary R/Wp 40045 PT Secondary R/Wp 40047 Relay1 output select R/Wp R/Wp 40049...
  • Page 69 Modbus Start Address Parameter Address Read / Parameter (Register) Write High Byte Low Byte 40089 40091 40093 40095 40097 40099 40101 40103 40105 40107 Wh Import Start Count R/Wp R/Wp 40109 Wh Export Start Count Varh Import Start Count R/Wp 40111 40113 Varh Export Start Count...
  • Page 70 Explanation for 4 X register : Address Parameter Description 40001 Demand Reset Demand Reset is used to reset the Demand parameter. A value of zero must be Written to this register to reset the Demand period. Writing any other value will return an error. 40003 Demand Period Demand period represents demand time in minutes.
  • Page 71 Address Parameter Description 40017 Run/On Hour & This address is used to reset the Run/On hour & number Interruption of Interruption . Write zero value to this register to reset reset the Run/On hour & number of Interruption. Writing any other value will return an error. 40019 Rs485 Set-up This address is used to set the baud rate, Parity, Number of...
  • Page 72 Address Parameter Description 40031 Analog Out 2- This address is used to set the parameter for Analog Output 2.. Para Set Write one of the parameter no. As per the options given in Table 2 for Analog & Limit Output Parameters. Writing any other value will return an error.
  • Page 73 Address Parameter Description This address is used to read and write the CT secondary value CT secondary 40043 write one of the following values to this address. 1=1A CT secondary 5=5A CT secondary writing any other value will return an error. 40045 PT secondary This address is used to read and write the PT secondary value.
  • Page 74 Address Parameter Description 40059 Relay 2 This address is used to select the Relay 2 operation as output select pulse or Limit. write one of the following values to this address. 0 = Pulse output on Relay 2 128 (decimal) = Limit output on Relay 2 writing any other value will return an error.
  • Page 75 Address Parameter Description 4) If password lock is present & to modify 4X parameter rst send valid password to this location so that 4X parameter will be accessible for modication. 5) If for in any of the above case invalid password is send then meter will return exceptional error 2.
  • Page 76 Address Parameter Description 40089 40105 The user can set respective energy starting count in these 40107 Energy registers (before the user can write values to these locations Start user needs to check register 40005 i.e Energy on RS485 and Count 40117 register 40036 i.e Energy digit reset count).
  • Page 77 Table 6 : RS 485 Set-up Code Parity Decimal value Baud Rate Stop Bit 19200 NONE 19200 NONE 19200 EVEN 19200 9600 NONE 9600 NONE EVEN 9600 9600 4800 NONE 4800 NONE 4800 EVEN 4800 2400 NONE 2400 NONE 2400 EVEN 2400 NOTE :...

  • Page 78: User Assignable Modbus Registers

    Table 7 : Pulse1 & Pulse2 Conguration Table 8 :Limit1 & Limit2 Conguration Conguration Code Conguration Code Import Active Energy Hi- alarm & Energized relay Export Active Energy Hi- alarm & De-energized relay Import Reactive Energy Lo- alarm & Energized relay Export Reactive Energy Lo- alarm &...
  • Page 79 Address Parameter Modbus Start Address (Hex) Assignable Register High Byte Low Byte (Register) Number. Assignable Reg 7 30525 Assignable Reg 8 30527 30529 Assignable Reg 9 30531 Assignable Reg 10 30533 Assignable Reg 11 30535 Assignable Reg 12 Assignable Reg 13 30537 Assignable Reg 14 30539...
  • Page 80 Address Parameter Modbus Start Address (Hex) Mapping Register High Byte Low Byte (Register) Number. 40521 Mapped Add for register #0x0210 40522 Mapped Add for register #0x0212 40523 Mapped Add for register #0x0214 40524 Mapped Add for register #0x0216 40525 Mapped Add for register #0x0218 40526 Mapped Add for register #0x021A Mapped Add for register #0x021C...
  • Page 81 Byte Count 04 (Hex) Voltage 2 * Data Register-1High Byte 00 (Hex) (3X Address 0x0002) Data Register-1 Low Byte 02 (Hex) Power Factor 1 * Data Register-2 High Byte 00 (Hex) (3X Address 0x001E) Data Register-2 Low Byte 1E (Hex) CB (Hex) CRC lOW CRC High...
  • Page 82 Query: 01 (Hex) Device Address 04 (Hex) Function Code Start Address High 02 (Hex) 00 (Hex) Start Address Low Number of Registers Hi 00 (Hex) Number of Registers Lo 04 (Hex) ** F0 (Hex) CRC Low CRC High 71 (Hex) Start Address High : Most signicant 8 bits of starting address of User assignable register.
  • Page 83 Data Register-3 High Byte 3F (Hex) Data Register-3 Low Byte 80 (Hex) Power Factor 1Data Data Register-4 High Byte 00 (Hex) Data Register-4 Low Byte 00 (Hex) 79 (Hex) CRC Low CRC High 3F (Hex) User Assignable mapping Registers User Assignable Data Registers (Starting (Starting ( 4X Registers Table10 )
  • Page 84 To get the data through User assignable Register use following steps: 1) Assign starting addresses(Table3) of parameters of interest to a “User assignable mapping registers” in a sequence in which they are to be accessed (see section “Assigning parameter to user assignable registers”) 2) Once the parameters are mapped data can be acquired by using “User assignable data register “...

  • Page 85: Installation

    Sign of Sign of Sign of Inductive / Connections Quadrant Active Reactive Power Capacitive Power ( P ) Power ( Q ) Factor ( PF ) Import Import Export Export Inductive means Current lags Voltage Capacitive means Current leads Voltage When the instrument displays Active power ( P )with “...

  • Page 86: Emc Installation Requirements

    As the front of the enclosure conforms to IP54 it is protected from water spray from all directions, additional protection to the panel may be obtained by the use of an optional panel gasket. The terminals at the rear of the product should be protected from liquids. The instrument should be mounted in a reasonably stable ambient temperature and where the operating temperature is within the range -10 to 55 C .

  • Page 87: Case Dimensions And Panel Cut-Out

    3. To protect the product against permanent damage, surge transients must be limited to 2kV pk. It is good EMC practice to suppress differential surges to 2kV at the source. The unit has been designed to automatically recover in the event of a high level of transients.

  • Page 88: Auxiliary Supply

    11.4 Auxiliary Supply instrument should ideally be powered from a dedicated supply, however it may be powered from the signal source, provided the source remains within the limits of the chosen auxiliary voltage. 11.5 Fusing It is recommended that all voltage lines are tted with 1 amp HRC fuses. 11.6 Earth/Ground Connections For safety reasons, CT secondary connections should be grounded in accordance with local regulations.
  • Page 89 3-PHASE 4-WIRE UNBALANCED LOAD DIGITAL METERING SYSTEM 13 14 2 5 8 11 1 3 4 6 7 9 SUPPLY P1 S1 P1 S1 SINGLE PHASE DIGITAL METERING SYSTEM SUPPLY P1 S1...

  • Page 90: SpeciCation

    13. Specication : System 3 Phase 3 Wire / 3 phase 4 Wire programmable at site 1 Phase 2 Wire as per order Inputs Nominal input voltage (AC RMS) Phase-Neutral 57.7 - 346 V Line-Line 100 - 600 V Max continuous input voltage 120% of Rated Value Max short duration input voltage 2 x Rated Value...
  • Page 91 Operating Measuring Ranges Voltage 10 .. 120 % of Rated Value Current 5 .. 120 % of Rated Value Frequency 40 .. 70 Hz 0.5 Lag ... 1 ... 0.8 Lead Power Factor Accuracy Accuracy 1: Voltage  0.5 % of range ...
  • Page 92  0.5 % of range Re - Active Energy  0.5 % of range Apparent Energy  1 % of Unity Power Factor  1 % of range Angle  1 % of Output end value Analog Output  1 % Total Harmonic Distortion Neutral Current ...
  • Page 93 Current Range 10... 100% of Nominal Value. 20... 100% of Nominal Value for THD. cosØ / sinØ = 1 Power For Active / Reactive Power & Energy 10... 100% of Nominal Current & 50... 100% of Nominal Voltage. Power Factor / Phase Angle 40...
  • Page 94 Standards EMC Immunity IEC 61326 10V/m min-Level 3 industrial low level electromagnetic radiation environment IEC 61000-4-3. IEC 61010-1 , Year 2001 Safety IP for water & dust IEC 60529 Isolation Dielectric voltage withstand 2.2 kV RMS 50 Hz for 1 minute test between circuits and between all electrical circuits accessible surfaces...
  • Page 95 Pulse output Option ( 1 or 2 Relay ) : Relay 1NO + 1NC Switching Voltage & Current Switching Voltage & Current 240VDC , 5Amp. Default Pulse rate Divisor 1 per Wh (up to 3600W), 1 per kWh (up to 3600kW), 1 per MWh (above 3600 kW) Programmable on site Pulse rate Divisors...
  • Page 96 14. Connection for Optional Pulse Output / RS 485 / Analog Output / Ethernet ( rear view of the instrument ) : 1. RS 485 Output + One Pulse (One Limit) + Two Analog Output N/O N/C COM A1 A2 Gnd RS 485 Relay 2 0 - 1mA...
  • Page 97 The Information contained in these installation instructions is for use only by installers trained to make electrical power installations and is intended to describe the correct method of installation for this product. It is the user's responsibility to determine the suitability of the installation method in the user’s eld conditions.
