Summary of Contents for GKD 3RCI

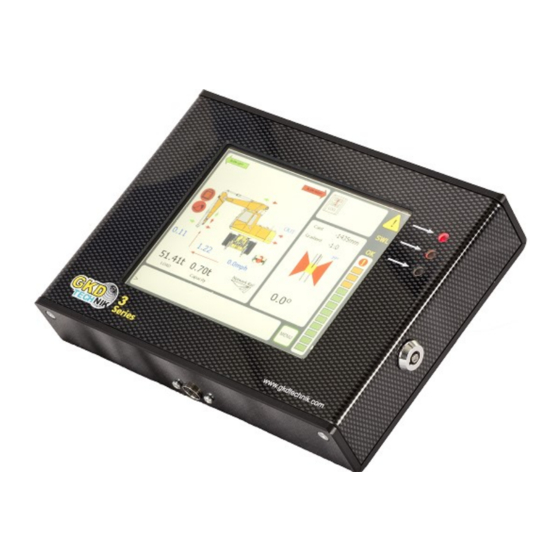

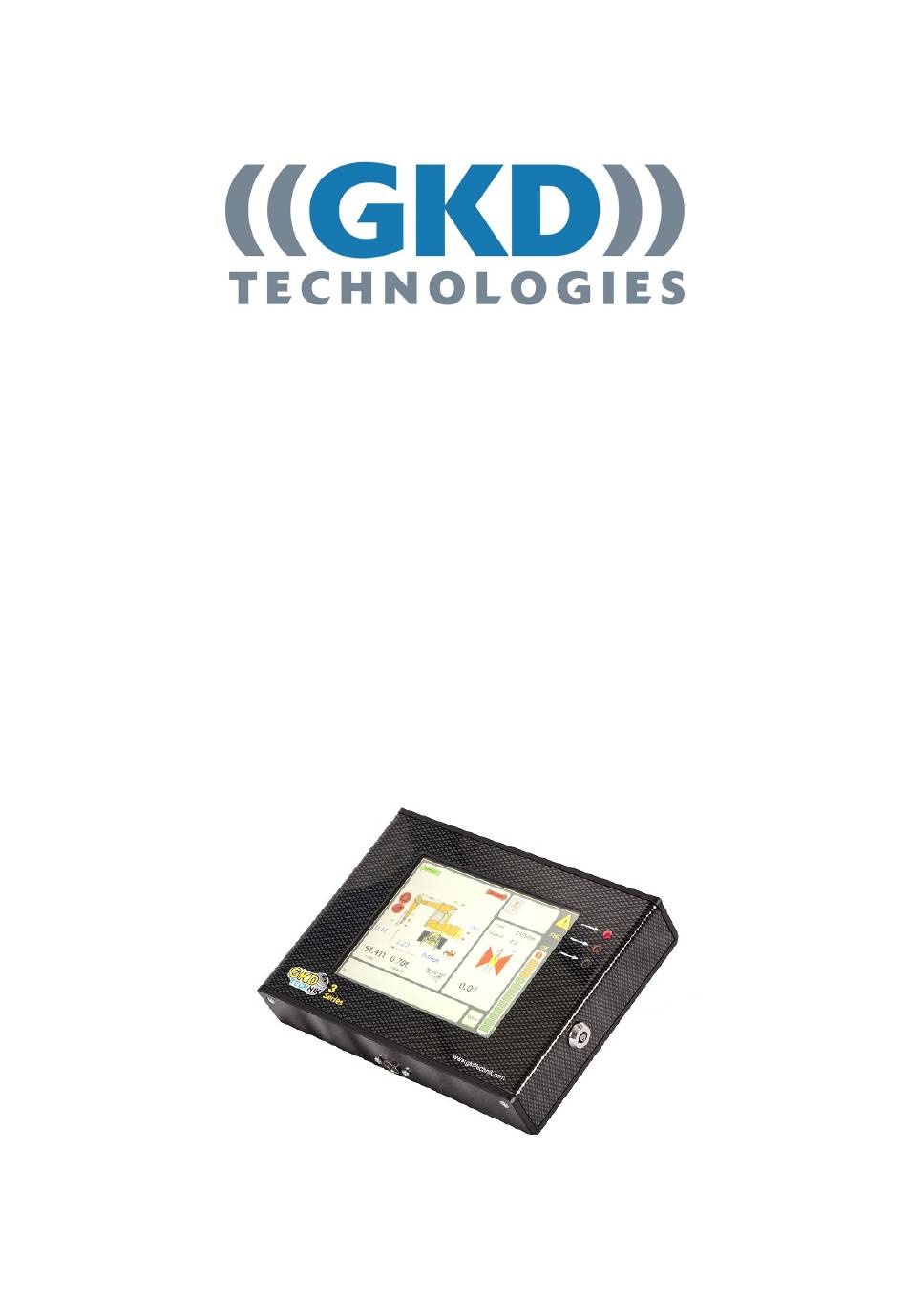

- Page 1 3RCI Quick Start Guide Covering both Standard and SpaceGuard Systems - V6 to V8 software only M3000004 v1.2...
- Page 2 LED Rated Capacity AMBER LED illuminates to show when the machine is approaching the rated ca- warning LED pacity and overload condition. System power GREEN LED flashes continuously to indicate power and system operation. Comms OK M3000004 GKD Technik Ltd...
- Page 3 Operator Display Guide continued... 3RCI SpaceGuard Systems that are certified to work Adjacent Line Open will show the symbol “ALO √”, 3RCI systems that are not certified to work Adjacent Line ALO Symbol Open, or approved systems without operational slew limits or virtual walls, will show “ALO...
- Page 4 4) Logging symbol with red cross - Log is inoperative or card full. Movement These arrows indicate the safe direction each piece of equipment can be moved. indicators GREEN indicates movement is safe. indicates movement is unsafe. M3000004 GKD Technik Ltd...
- Page 5 System Start - Up The 3RCI system should automatically start up when the ignition is turned on. Initially a green LED on the front panel will blink on and off to indicate that the system is booting up, and then the screen will power up.
- Page 6 The RCI will inhibit travel under the following conditions: When the machine is in an overload state. When the axle is locked. When a height limit has been reached. When the air pressure is detected as being low (air brakes). M3000004 GKD Technik Ltd...
- Page 7 Services that cause machine movement away from the height limit will always be allowed. To turn off a set height limit press [MENU] and the [HEIGHT LIMIT IS ON]. The height limit will be turned off. M3000004 GKD Technik Ltd...
- Page 8 To turn off a set slew limit press [MENU] and then [SLEW ANGLE IS ON]. The slew limits will be turned off. When a slew limit is set, you will see the following on the operator main screen. Current counter Current clockwise clockwise limit. limit. M3000004 GKD Technik Ltd...
- Page 9 RIS1530 rev4 and above the blue RCI indicator lamp on the cab will blink on and off at 2 second intervals. To turn Tandem Lift mode OFF press [MENU] and then [Tandem is ON]. Tandem Lift mode will be turned off and the machine lift capacity will return to standard lift duties. M3000004 GKD Technik Ltd...
- Page 10 [MORE] tab will bring up a list of all detected errors on the system. Below is a link to the GKD Knowledge base where you can find definitions of all the error codes for the 3RCI System including SpaceGuard.
