3RCI User Manual
Covering both Standard and SpaceGuard Systems
M3000001 v1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3RCI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GKD 3RCI

Summary of Contents for GKD 3RCI

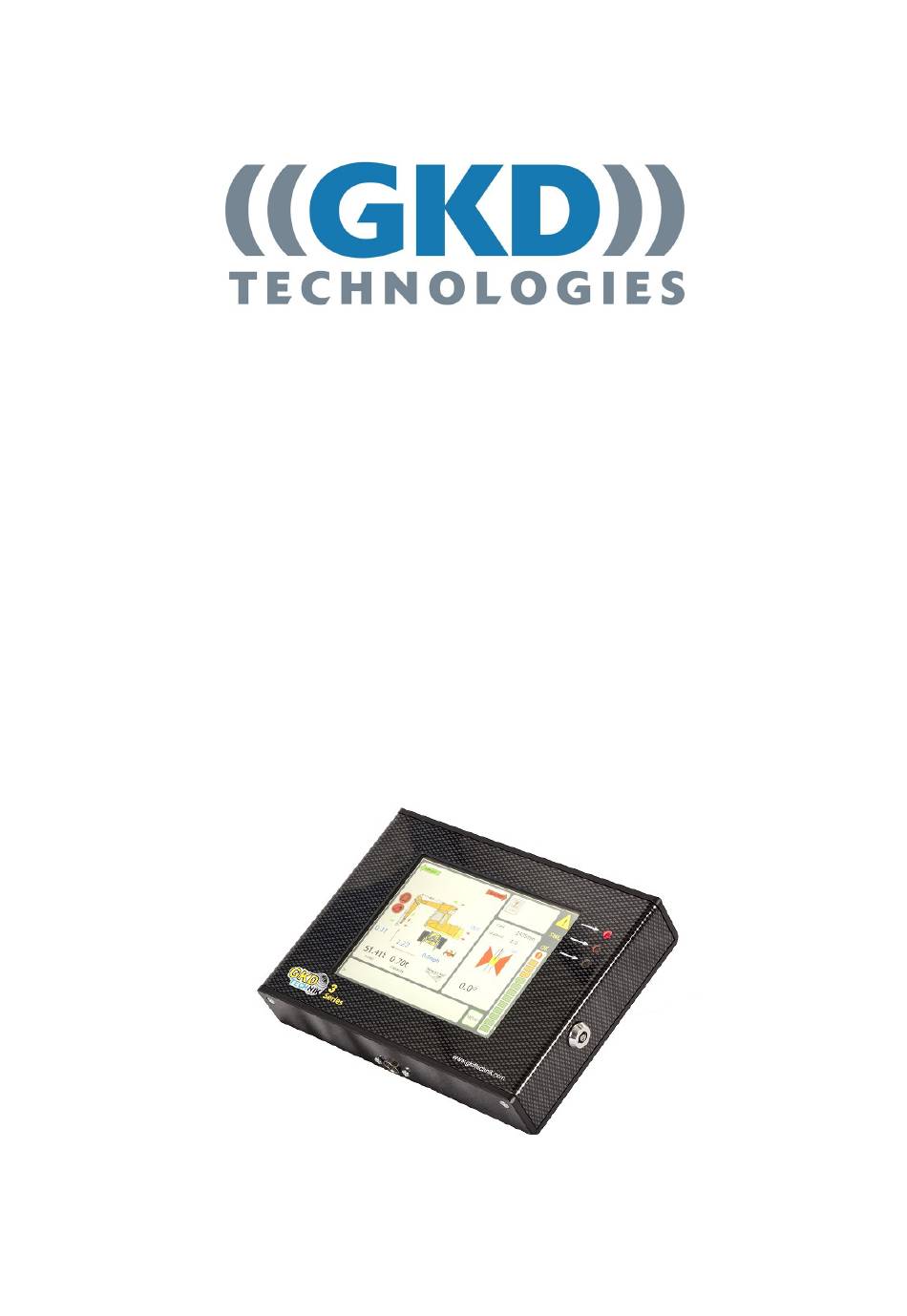

  • Page 1 3RCI User Manual Covering both Standard and SpaceGuard Systems M3000001 v1.4...

  • Page 2: Change History

    Change History Issue Date Changes v1.0 23/10/2013 New issue for V8 3RCI Add swing / swivel boom information and “Limit Set” orange beacon v1.1 11/11/2013 (SpaceGuard) v1.2 18/11/2013 Add “Beyond Limit” feature / screen v1.3 23/02/2016 General update and reformat of entire document v1.31...

  • Page 3: Table Of Contents

    Definitions System Layout Operation Auto-diagnostics Daily Checks Touchscreen Switching On External Indicator Beacons On/Off Tracking and Rail Gear Interlocks Motion Cuts Axle Lock Drive Cut User Settings Height Restriction Slew Restriction Virtual Walls Exceeding Set Limits M3000001 GKD Technik Ltd...
  • Page 4 Contents - continued... Page no Calculator Stub Release Dig Mode Backward Stability Lift Point Selection Override Key Switch Offset Boom / Swing Boom Machines SpaceGuard System System Layouts Troubleshooting M3000001 GKD Technik Ltd...

  • Page 5: Introduction

    SpaceGuard 3RCI SpaceGuard systems can be certified to work under OLE and system 1,2 and 3 ALO conditions. It is the responsibility of the operator to ensure that the system is fully operational and that the dimensions of any load or attachment is taken into account when setting limits.

  • Page 6: Definitions

    3RCi can be configured to control the rail gear deployment. When towing with the RRV, any loss of hydraulic brake pressure will Trailer Breakaway be detected by the 3RCI and an alarm and error message will occur. M3000001 GKD Technik Ltd...

  • Page 7: System Layout

    LED Rated Capacity AMBER LED illuminates to show when the machine is approaching the rated ca- warning LED pacity and overload condition. System power GREEN LED flashes continuously to indicate power and system operation. Comms OK M3000001 GKD Technik Ltd...
  • Page 8 System Layout continued... 3RCI SpaceGuard Systems that are certified to work Adjacent Line Open will show the symbol “ALO √”, 3RCI systems that are not certified to work Adjacent Line ALO Symbol Open, or approved systems without operational slew limits or virtual walls, will show “ALO...
  • Page 9 4) Logging symbol with red cross - Log is inoperative or card full. These arrows indicate the safe direction each piece of equipment can be moved. Movement GREEN indicates movement is safe. indicates movement is unsafe. M3000001 GKD Technik Ltd...

  • Page 10: Operation

    Select the MENU screen and press the TEST tab, and then press the alarm test button. The external indicator lamps and alarms should be activated one by one in sequence as reported on the 3RCI screen. Verify that they all work as expected.

  • Page 11: Switching On

    Lift mode, the blue beacon will cycle on and off at 2 second intervals.  Balfour Beatty Indicators - Optionally the 3RCi system may be fitted with an additional two indicator lamps on the side of the cab. These are coloured red and white. The white indicator lamp mimics the blue beacon as described above while the red indicator will illuminate when the system is not in a lifting configuration (i.e.

  • Page 12: On/Off Tracking And Rail Gear Interlocks

    ON/OFF Tracking and rail gear interlocks (optional) The 3RCI may control the deployment of the rail-gear to ensure that a dangerous situation cannot occur where the braked road wheels are not in contact with either the ground or the rail wheels.

  • Page 13: Motion Cuts

    When the machine has the axles locked then drive is cut and the machine will not be allowed to travel. The 3RCI will also cut drive in an overload state, or when the brake air pressure is detected as low.

  • Page 14: User Settings

    The TEST button (inside the TEST tab) and SERVICE button are password protected and allow access to maintenance and diagnostic modes. System operation is not possible when inside the test screens, service mode access is data logged with time and date. M3000001 GKD Technik Ltd...

  • Page 15: Height Restriction

    USE AT SPEED MAY RESULT IN AN OVERSHOOT INTO A POTENTIALLY DANGEROUS POSITION. The height restriction functions in the GKD 3RCI continually monitor the highest part of the machine. If the highest part of the machine should exceed the pre programmed height restriction then the appropriate motion cut signals will be activated.
  • Page 16 Select “YES“ to set the restriction. The height limit will be set based on the highest point of the machine equipment. You may exit from this screen without setting a height restriction by selecting the “NO” button. M3000001 GKD Technik Ltd...
  • Page 17 The enabling, disabling and exceedance (breach) of height limits is logged in the event logger within the display. This will include the date and time of the event, along with the PTS number of the operator who started the system up. M3000001 GKD Technik Ltd...

  • Page 18: Slew Restriction

    (see graphic at top of this page). If the preset angles are exceeded then the appropriate slew motion cut is applied, and the slew motion cut icons on the operator display change colour to RED to show the slew service is cut. M3000001 GKD Technik Ltd...
  • Page 19 The enabling, disabling and exceedance (breach) of slew limits is logged in the event logger within the display. This will include the date and time of the event, along with the PTS number of the operator who started the system up. M3000001 GKD Technik Ltd...

  • Page 20: Virtual Walls

    ANY WHEELS, STABILISERS OR ATTACHMENT THAT MAY BE FITTED TO THE MACHINE WHICH COULD CAUSE IT TO BE IN A DANGEROUS POSITION. THE SIZE OF THE LOAD SUSPENDED FROM THE BUCKET PIN OR LIFTING POINT SHOULD ALSO BE CONSIDERED WHEN SETTING A WALL. M3000001 GKD Technik Ltd...

  • Page 21: Exceeding Set Limits

    This includes setting a new limit when the machine is already outside the set limit. The 3RCI system will cut any hydraulic function that will allow travel further outside the set limit being exceeded, and will allow all hydraulic functions that will cause the machine to move back into a “safe”...

  • Page 22: Calculator

    Calculator The 3RCi has a calculator function built in which allows the operator or crane planner to determine the lift capacity of the machine in the event of an unforeseen (unplanned) lift. By pressing the calculator button on the MENU screen, the lift conditions may be typed in to check the lift capacity of the machine.

  • Page 23: Dig Mode

    Lift Point Selection 3RCI supports multiple lift points. If multiple lift points have been set up, from the “Restrictions” page, press the bottom left button to cycle through the available lift points.

  • Page 24: Override Key Switch

    “straight”, normal lift duties are allowed. When the boom is not detected as “straight”, the 3RCI will impose a capacity restriction of typically 700kg, to prevent potential overturns caused by forces imposed when lifting with the boom in an offset position.

  • Page 25: Spaceguard System

    SpaceGuard Systems Introduction The 3RCI SpaceGuard system adds dual sensing and processing of machine component position to the standard system. This allows the system to provide improved electronic stops for the height and slew limits and for virtual walls. There are two independent angle sensors fitted to each of the stub boom, fore boom and dipper.
  • Page 26 There may be occasions when the safety mismatch occurs at start up due to slew angle differences accumulated during shut down. Use the override button to slew round past the reset sensor on the floating end (0°) of the machine. Once the slew is synchronized the machine may be operated normally. M3000001 GKD Technik Ltd...
  • Page 27 Offset Boom or Swing Boom machines Where a GKD 3RCI SpaceGuard system is installed onto a machine with a swing boom or swivel boom, additional protection is provided to ensure that the boom is in the “straight ahead” position when working with positional limits.

  • Page 28: System Layouts

    System Layouts M3000001 GKD Technik Ltd...
  • Page 29 System Layouts continued... M3000001 GKD Technik Ltd...

  • Page 30: Troubleshooting

    Below is a link to the GKD Knowledge base where you can find definitions of all the error codes for the 3RCI System including SpaceGuard.
