Date Created: 14/08/2020
Title:

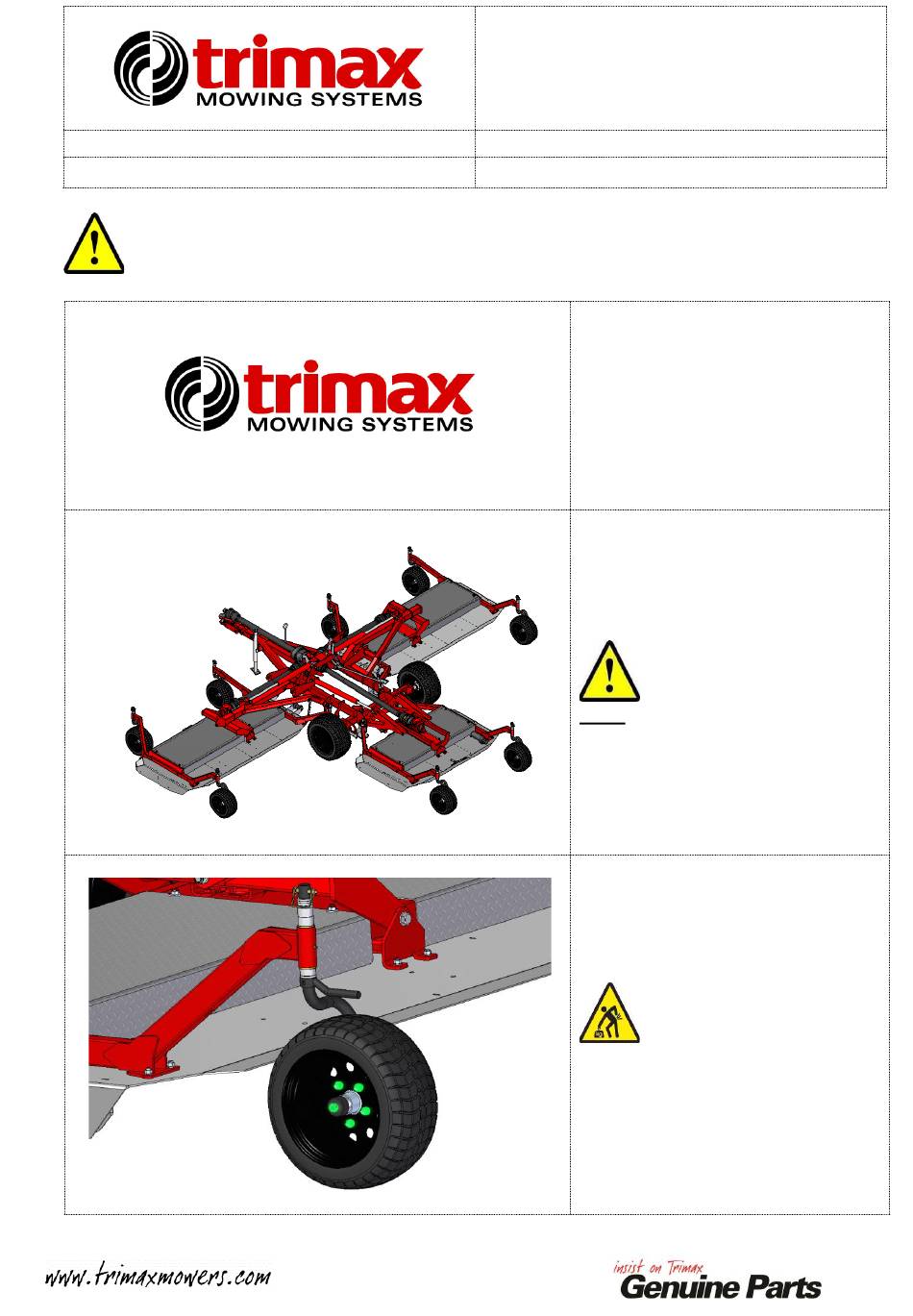

Wheel Bearing Replacement 416-860-460
SAFETY!
Before attempting to make any adjustments or carry out maintenance on the mower, review
the hazard identification table (section 3a of your Operator Manual) and take all necessary precautions.
SPARE PARTS
INSTRUCTIONS #80

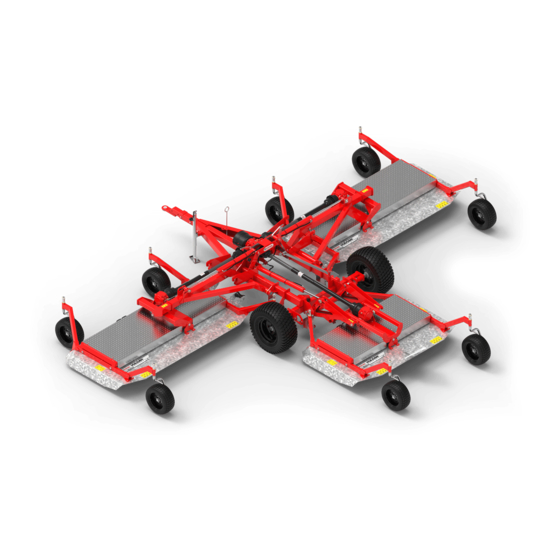

Product: Vulcan
The following process shows how to
replace the wheel bearing on a Vulcan
Castor Stem.
Position mower on flat even ground.
Note:
It is recommended to have wings
down but is not essential.
Loosen Wheel Nuts while the mower
is on the ground.
1
