SPX POWER TEAM C13-HHC Series Operating Instructions And Parts List Manual

SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
SPECIFICATIONS
PUMP SECTION:
Injector Stroke:
L P Output Per Stroke:
H P Output Per Stroke:
L P Unloading Valve Setting:
L P Relief Valve Setting:
H P Relief Valve Setting:
Handle Effort:
Reservoir Capacity:
Oil Type Recommended:
TOOL SECTION:
Bore Diameter:
Stroke:
Cutting Force:
Head Rotation:
GENERAL:
Total Weight:
Litho in USA
®
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
HYDRAULIC CUTTER TOOL
INTRODUCTION

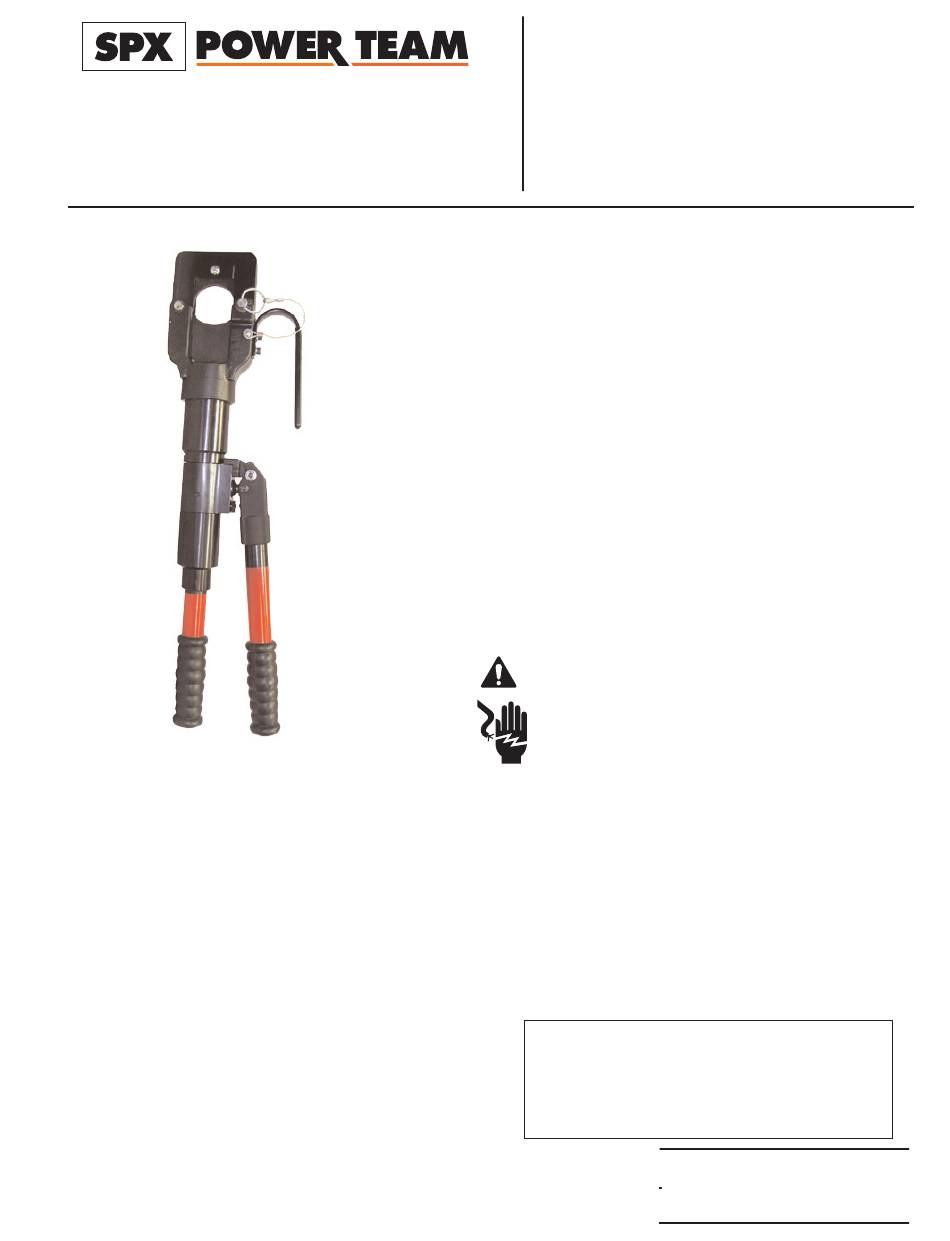

The 13-HHC-B Hydraulic Cutter Remote is a lightweight,
compact and extremely durable tool that has been designed
for cutting a wide variety of materials.
The Cutter features insert type blades that can be easily
replaced in the field with the use of only a screw driver.
Other features include a hinged " Flip Top" Head and a full
360 Degrees of head rotation.
The Cutter can be operated with any suitable hand or power
pump capable of pressure output of 10,000 PSI. No special
control valves are required since the cutter piston is spring
returned.
.56 in. (1.42 cm)
.441 cu. in. (.007 liter)
.034 cu. in. (.0005 liter)
500 psi (3,447 kPA)
25 psi (172 kPA)
10,000 psi (68,950 kPA)
4.2 lbs. per 1,000 psi
(1.90 kg per 6,895 kPA)
8.5 cu. in. (.139 liter)
Amoco Rykon MV
1.875 in. (4.76 cm)
2.180 in. (5.54 cm)
13.180 tons U.S.
(12.5 tons Metric
360 degrees continuous
20.1 lbs. (9.1 kg)
Operating Instructions
and Parts List for:
C13-HHC SERIES
13-HHC-B
WARNING
The 13-HHC is not to be used for hot line work.
Size:
CUTTING CAPACITY: (See Notes)
Wire Rope:
Soft Copper/Alum Wire:
Gr. 2 Soft Steel Bolts:
Bare Stranded Copper/ Alum Wire:
ACSR Underground Power Cable:
Stranded Galvanized Wire:
Notes:
Size shown are for stranded bare wires. When
cutting insulated wire, size is over insulation.
Rating for soft steel should not exceed ASTM
1022. Rating for hard drawn steel wire should not
exceed ASTM 1042.
Sheet No.
Rev
Form No. 1000031
4.15 x 7.39 x 25.66 in.
long (10.54 x 18.77 x
65.17 cm long)
1 in. (2.54 cm)
1.25 in. (3.17 cm)
.875 in. (2.22 cm)
2.00 in. (5.08 cm)
2.00 in. (5.08 cm)
.75 in. (1.90 cm)
1 of 7
Date: 12 Feb 2004
