SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
SPECIFICATIONS
Blade Opening:
Head Rotation:
Head Pivot on Hinge:
Cutting Force:
Oil required for full stroke: 1-1/2 Cu. In.
Total Weight:
Mating quick coupler:
CUTTING CAPACITIES (MAXIMUM
(See Notes)
Wire Rope:
Soft Copper Bar:
Soft Aluminum Bar:
Soft Steel Bolts:
Reinforcing Bar:
Bare Stranded Copper Wire:
Bare Stranded Aluminum Wire
ACSR:
Stranded Galvanized Steel Wire 5/8 inch Diameter
Underground Power Cable:
Litho in USA
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
HYDRAULIC CUTTER TOOL
7/8 Inch.
360 Degrees
90 Degrees (Retracted)
12,265 lbs. at 10,000 PSI.
4.6 lbs. (2.1 kg.)
Power Team Part No 25599
3/4 inch Diameter
5/8 inch Diameter
1/2 inch Diameter
5/8 inch Diameter
1/2 inch Diameter
3/4 inch Diameter
3/4 inch Diameter
3/4 inch Diameter
3/4 inch Diameter
®
Parts List for:
6-HCR
INTRODUCTION

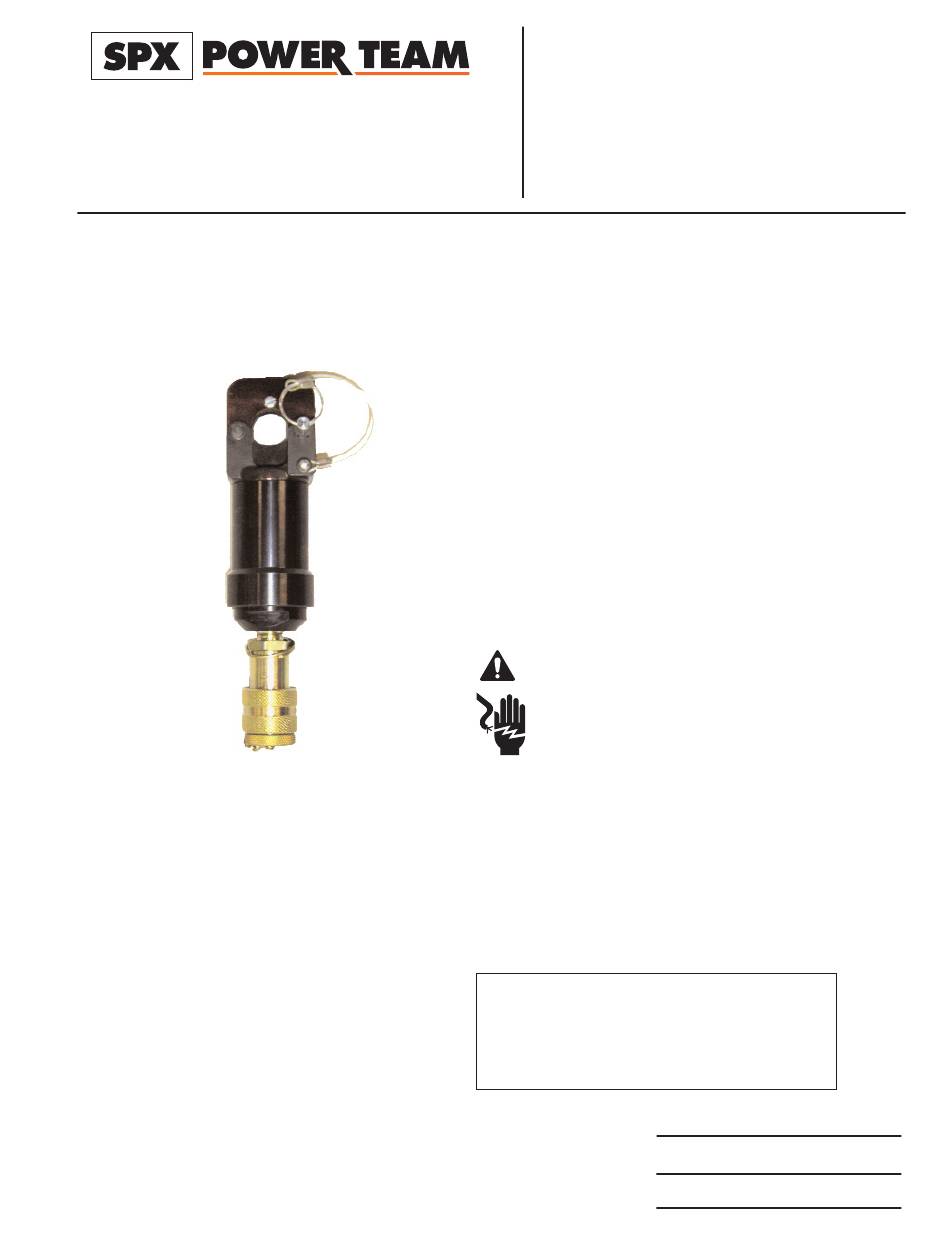

The 6-HCR Hydraulic Cutter Remote is a lightweight,
compact and extremely durable tool that has been designed
for cutting a wide variety of materials.
The Cutter features insert type blades that can be easily
replaced in the field with the use of only a screwdriver. Other
features include a hinged " Flip Top" Head and a full 360
Degrees of head rotation.
The Cutter can be operated with any suitable hand or power
pump capable of pressure output of 10,000 PSI. No special
control valves are required since the cutter piston is spring
returned.
WARNING
The 6-HCR is not to be used for hot line work.
Notes:
Size shown are for stranded bare wires. When
cutting insulated wire, size is over insulation.
Rating for soft steel should not exceed ASTM
1022. Rating for hard drawn steel wire should not
exceed ASTM 1042.
Form No. 1000030A
6-HCR-C
Sheet No.
1 of 4
Rev
Date: 11 Feb 2004
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPX POWER TEAM 6-HCR
Summary of Contents for SPX POWER TEAM 6-HCR
- Page 1 Form No. 1000030A ® Operating Instructions and Parts List for: SPX Corporation Tech. Services: (800) 477-8326 5885 11th Street Fax: (800) 765-8326 Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 6-HCR-C Fax: (800) 288-7031 Internet Address: http://www.powerteam.com 6-HCR HYDRAULIC CUTTER TOOL...
- Page 2 Operating Instructions and Parts List, Form No. 1000030A, Back sheet 1 of 4 IMPORTANT SAFETY INFORMATION This is the safety alert symbol. To help prevent personal injury, It is used to alert you to potential personal injury • Always wear eye protection whenever hazards.
- Page 3 Operating Instructions and Parts List, Form No. 1000030A OPERATING INSTRUCTIONS Connect cutter and hose to any suitable hydraulic pump that has pressure output of 10,000 PSI. The mating half of quick-coupler supplied with cutter is Power Team Part No. 25599. Pump should be equipped with 2 or 3-way valve.
- Page 4 Operating Instructions and Parts List, Form No. 1000030A, Back sheet 2 of 4 Illustration 1. Pull Pin Assembly 4. Connector 2. Cutter Head Assembly 5. Female-coupler 3. Adapter 6. Dust-Cap TROUBLE SHOOTING If the blade will not extend completely, it will generally be found that there is an insufficient amount of oil in the cutter's hydraulic system.
- Page 5 Operating Instructions and Parts List, Form No. 1000030A INSTRUCTIONS FOR CONVERSION TO 6-HHC TOOL ® ® ® SPX Corporation, Rockford, IL 61109 USA SPX Corporation, Rockford, IL 61109 USA SPX Corporation, Rockford, IL 61109 USA http://www.powerteam.com http://www.powerteam.com http://www.powerteam.com Made in USA...
- Page 6 Operating Instructions and Parts List, Form No. 1000030A, Back sheet 3 of 4 PARTS LIST Apply "White Lube" Lithium Grease (213083) to groove and wire before assembling. SECTION A-A 6-HCR Item Part Item Part Req’d Description Req’d Description 3-9990 Cap, End 1000056 Decal, (Tradename Power Team)
- Page 7 Operating Instructions and Parts List, Form No. 1000030A PARTS LIST SECTION C-C SECTION B-B Apply "White Lube" Lithium grease (213083) to wire and groove before assembling SECTION D-D SECTION A-A HEAD ASSEMBLY 4-0866 Item Part Item Part Req’d Description Req’d Description 3-8682 10279...
