Utility Staple Holder - Instructions
ENGLISH

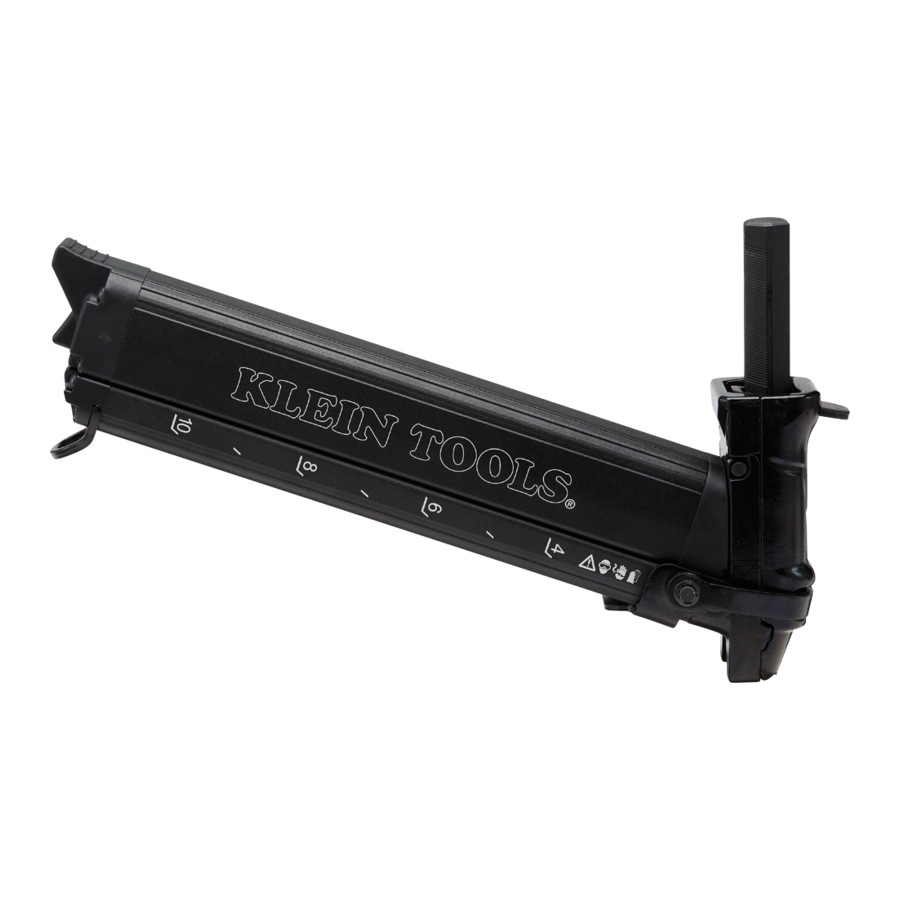

Klein's STP100 Utility Stapler is designed to hold and dispense
utility staples to install ground wire to utility poles. The stapler
can accommodate 35-40 staples to finish installation on
one pole. It automatically loads the next staple for smoother
operation, and works with Klein STP001 Heavy-Duty Collated
Staples, as well as other utility staples on the market.
• Driving staples to full depth with the staple holder
will result in damage to the tool.
• Do not use more than 20 loose/non-collated
staples; doing so can cause jams and damage to
the tool.
Read, understand, and follow these instructions to
ensure safe operation. Failure to observe these warnings
can result in risk of fire or electric shock. Keep these
instructions for future reference.
• Never use on or near live electric circuits.
• Always wear approved eye protection.
• Keep fingers clear of staple discharge area when
operating or clearing a jam.
• Only direct staple discharge towards surface intended to
be stapled; never point towards any body part.
• Ensure correct staple size is selected before discharging.
• Use proper positioning of the cable guide to prevent
staples from piercing the cable
• Always be cautious of potential hazards such as electrical
wiring, damp or wet conditions, unstable surfaces.
• For professional use only.
• Keep away from children.
Warning or Caution
Wear approved eye protection
NOT insulated - Will NOT protect against electric shock
Wear gloves
Staple cover
1
Staple cover release
2
Front cover
3
Anvil
4
DRIVING STAPLES:
1. Lift Anvil Release
(FIG. B).
2.
Strike Anvil
3. Use Staple Holder only to start staple (1 or 2 hits).
Remove staple holder and finish staple with hammer.
NOTE: Driving staples to full depth with the
staple holder will result in damage to the tool.
4. Lift Anvil Release
extended position (FIG. D).
CONTINUED ON OTHER SIDE
Find Quality Products Online at:
STP100
IMPORTANT NOTES
WARNINGS
SYMBOLS ON PRODUCT

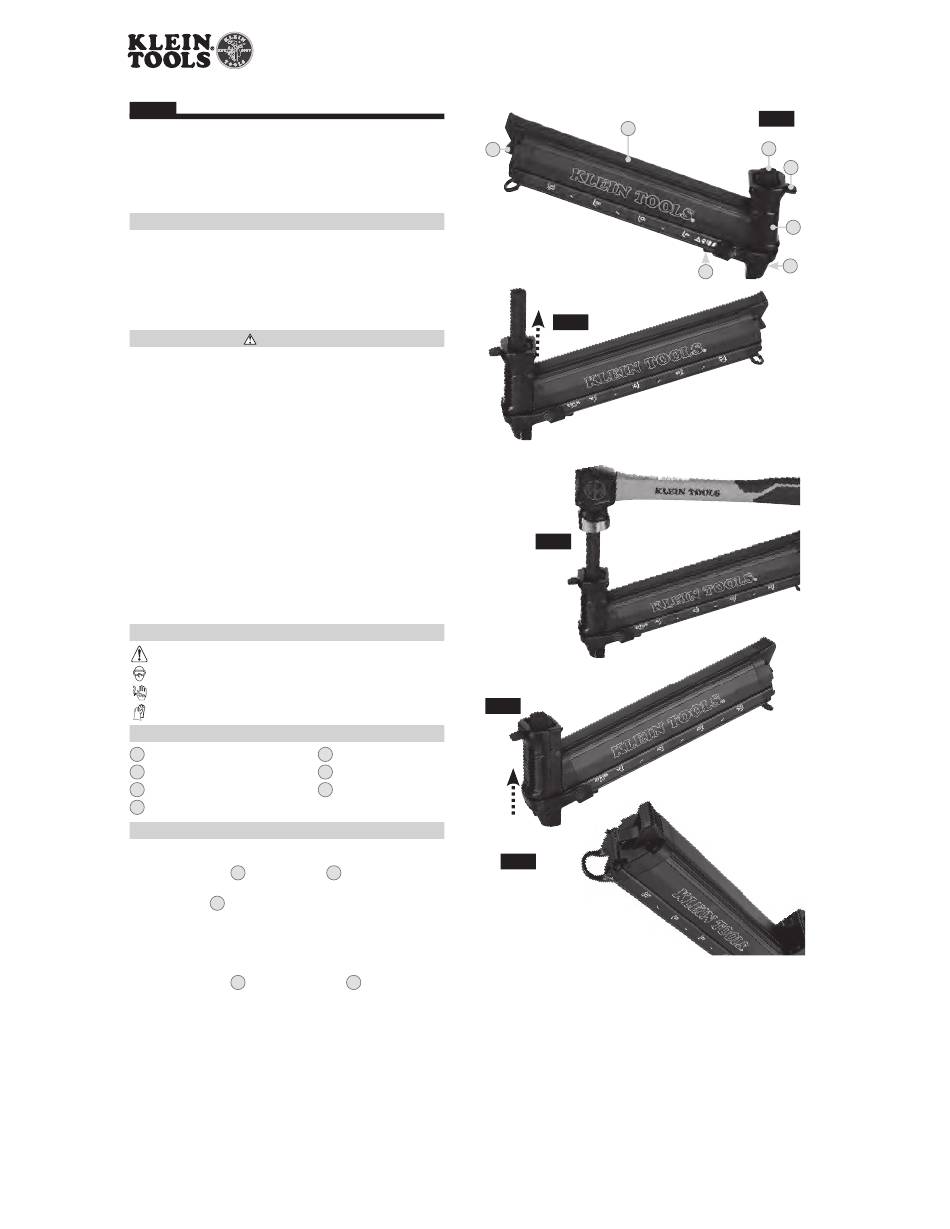

FEATURE DETAILS (FIG.A)
