P r o d u c t s
Pyke
Product Numbers
848/184/. . .
JADO USA
6615 West Boston
Chandler, AZ 85226
Phone: (8OO) 227 -2734
Fax: (8OO) 552-JADO (5236)
www.jadousa.com
© J A D O U S A 2 0 1 1

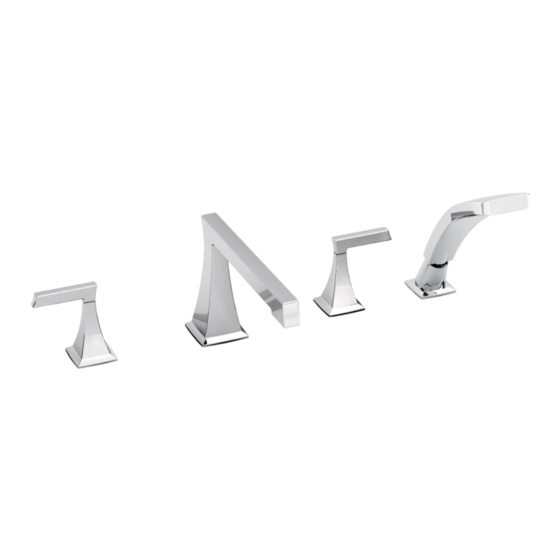

Roman Tub Filler with Hand Shower
Roman Tub Filler with Hand Shower
Installation Instructions
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
L u x u r y
F a u c e t s
a n d
A c c e s s o r i e s
H 9 6 5 8 6 3
Advertisement
Summary of Contents for JADO Pyke Roman 848
- Page 1 Product Numbers 848/184/. . . JADO USA 6615 West Boston Chandler, AZ 85226 Phone: (8OO) 227 -2734 Fax: (8OO) 552-JADO (5236) www.jadousa.com © J A D O U S A 2 0 1 1 H 9 6 5 8 6 3...
- Page 2 RECOMMENDED TOOLS Basin Wrench Regular Screwdriver Phillips Screwdriver Adjustable Wrench Channel Locks ROUGHING-IN DIMENSIONS 203mm to 305mm 216.2mm 8" TO 12" MAX. (8-1/2") 53,7mm 210mm (2-1/8)" (8-1/4") 65.3mm (2-3/5") 60mm (2-3/8" D.) 124.8mm (4-9/10") 98.4mm (3-7/8") 35mm 19mm 1-3/8" D. (3/4"...
- Page 3 SPACER (7). Set VALVE BODIES (2) so that their outlets are facing toward SPOUT TEE (11) and then tighten LOCKNUT (8) using 35mm or adjustable wrench. JADO COLD Insert FIBER WASHERS (12) into COUPLING NUTS (13) of SUPPLY HOSES (14) and tighten making water tight connection.
- Page 4 JADO will not be liable for labor or other costs relating to the sale, installation, or replacement of their products. In the event of a defect in any JADO product covered by this warranty, the product must be returned to the dealer where originally purchased JADO BATHROOM AND HARDWARE MFG.
