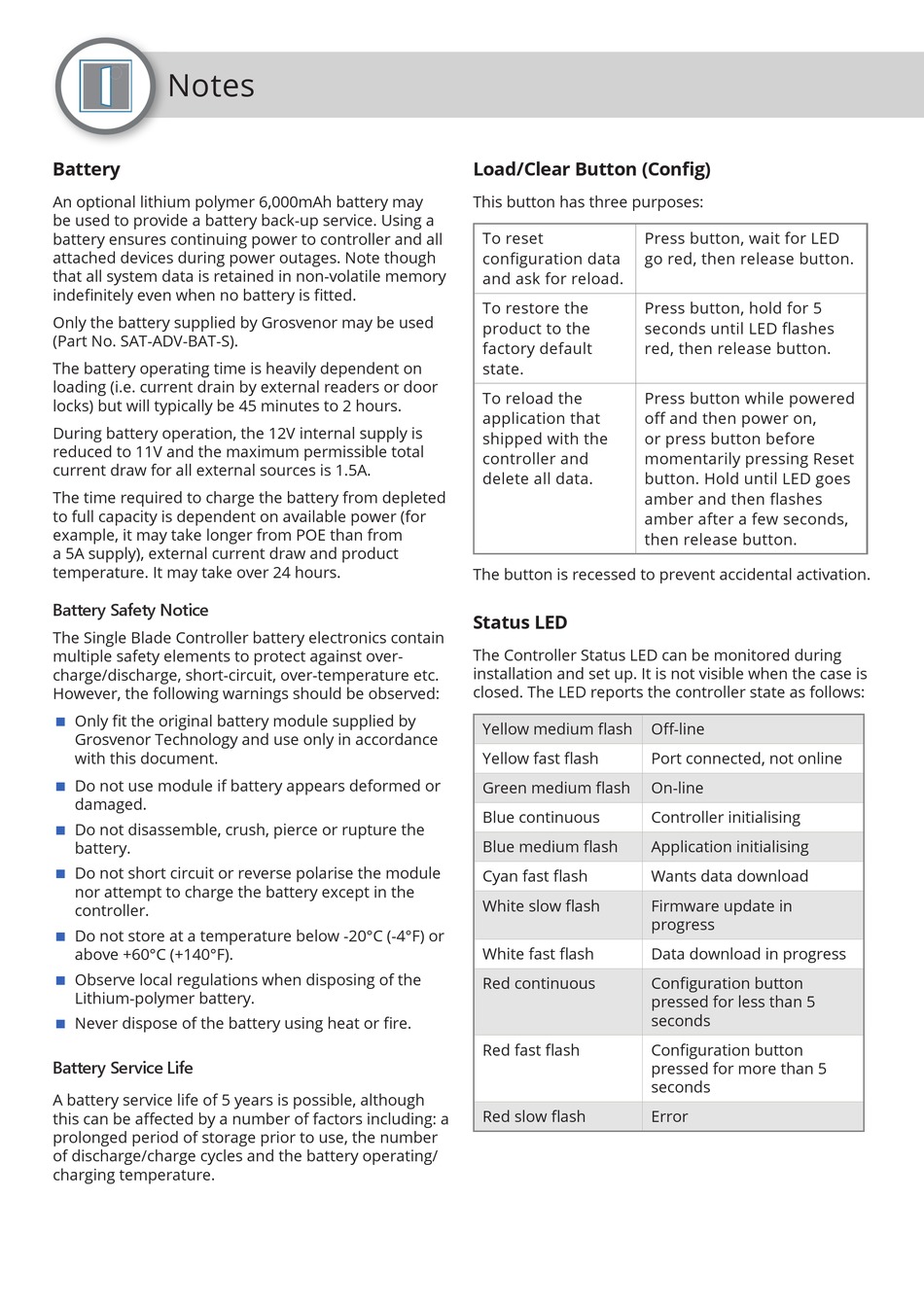

Notes
Battery
An optional lithium polymer 6,000mAh battery may
be used to provide a battery back-up service. Using a
battery ensures continuing power to controller and all
attached devices during power outages. Note though
that all system data is retained in non-volatile memory
indefi nitely even when no battery is fi tted.
Only the battery supplied by Grosvenor may be used
(Part No. SAT-ADV-BAT-S).
The battery operating time is heavily dependent on
loading (i.e. current drain by external readers or door
locks) but will typically be 45 minutes to 2 hours.
During battery operation, the 12V internal supply is
reduced to 11V and the maximum permissible total
current draw for all external sources is 1.5A.
The time required to charge the battery from depleted
to full capacity is dependent on available power (for
example, it may take longer from POE than from
a 5A supply), external current draw and product
temperature. It may take over 24 hours.
Battery Safety Notice
The Single Blade Controller battery electronics contain
multiple safety elements to protect against over-
charge/discharge, short-circuit, over-temperature etc.
However, the following warnings should be observed:
Only fi t the original battery module supplied by

Grosvenor Technology and use only in accordance
with this document.
Do not use module if battery appears deformed or

damaged.
Do not disassemble, crush, pierce or rupture the

battery.
Do not short circuit or reverse polarise the module

nor attempt to charge the battery except in the
controller.
Do not store at a temperature below -20°C (-4°F) or

above +60°C (+140°F).
Observe local regulations when disposing of the

Lithium-polymer battery.
Never dispose of the battery using heat or fi re.

Battery Service Life
A battery service life of 5 years is possible, although
this can be aff ected by a number of factors including: a
prolonged period of storage prior to use, the number
of discharge/charge cycles and the battery operating/
charging temperature.
Load/Clear Button (Confi g)
This button has three purposes:
To reset Press button, wait for LED
confi guration data go red, then release button.
and ask for reload.
To restore the Press button, hold for 5
product to the seconds until LED fl ashes
factory default red, then release button.
state.
To reload the Press button while powered
application that off and then power on,
shipped with the or press button before
controller and momentarily pressing Reset
delete all data. button. Hold until LED goes
amber and then fl ashes
amber after a few seconds,
then release button.
The button is recessed to prevent accidental activation.

Status LED

The Controller Status LED can be monitored during
installation and set up. It is not visible when the case is
closed. The LED reports the controller state as follows:
Yellow medium fl ash
Yellow fast fl ash
Green medium fl ash
Blue continuous
Blue medium fl ash
Cyan fast fl ash
White slow fl ash
White fast fl ash
Red continuous
Red fast fl ash
Red slow fl ash
Off -line
Port connected, not online
On-line
Controller initialising
Application initialising
Wants data download
Firmware update in
progress
Data download in progress
Confi guration button
pressed for less than 5
seconds
Confi guration button
pressed for more than 5
seconds
Error
