Sateon Advanc SAT-ADV-C-SNG Installation Manual page 2

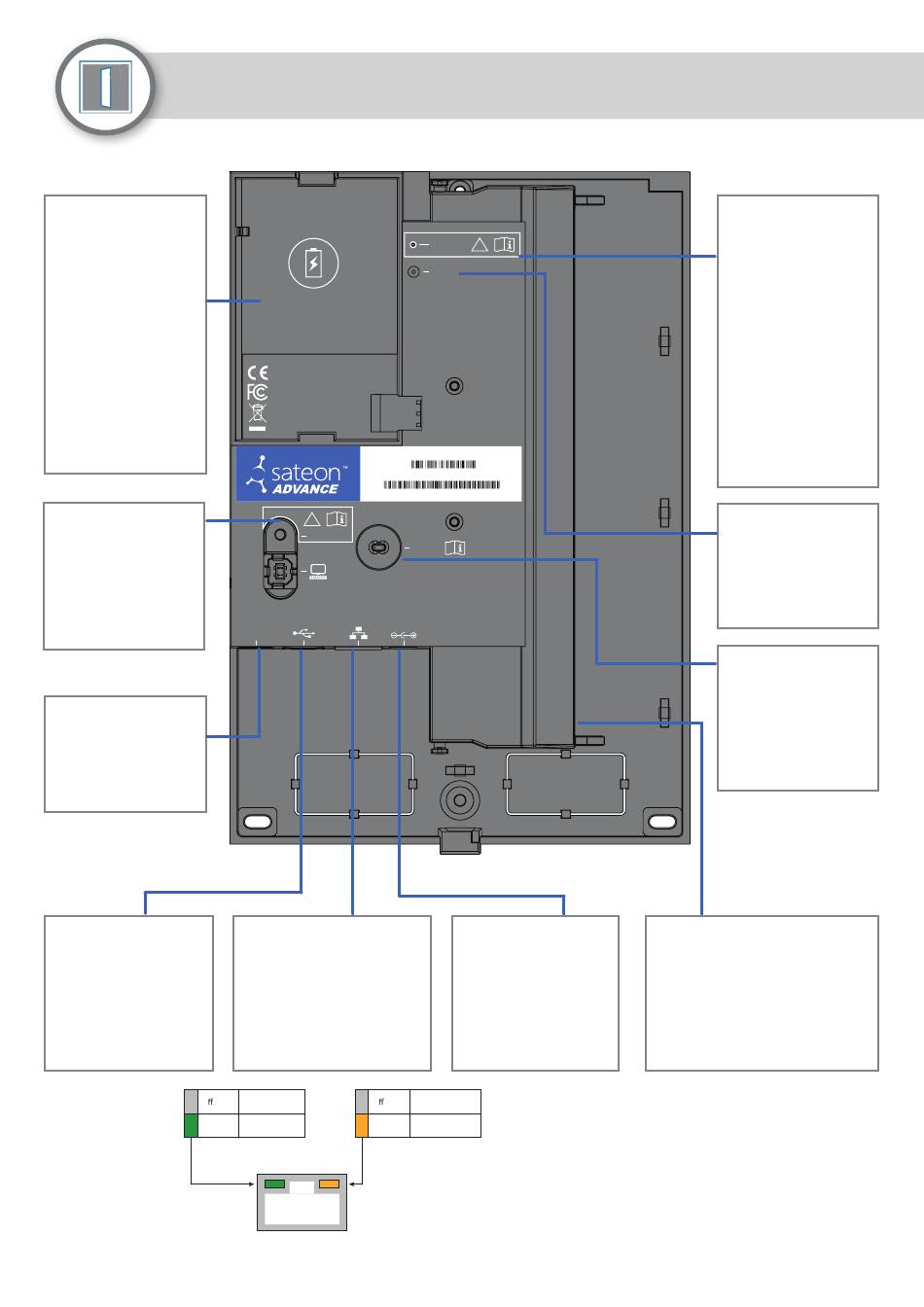

Connections Connections
Battery
An optional Lithium
Polymer 6,000mAh
battery may be
used to provide a
battery back-up
service during power
outages.
Only the battery
supplied by
Grosvenor (Part No.
SAT-ADV-BAT-S) may
be used.
See Notes on page 4.
Load/Clear
Used to reset
confi guration data.
Can be used in three
diff erent ways; see
Notes on page 4.
RS485 Port
Used for host comms
when RS485 is used to
connect controllers.
See page 5.
USB Ports
Two USB 2.0 Type A
ports; intended for
Grosvenor-approved
USB products only.
Can be used to update
controller fi rmware.
O
Green
Sateon Single Tampo Printing 1v0
SAT-ADV-C-MLT-00000001
!
Load/Clear
RS-485
12V 5A MAX
A B S
Ethernet Port
For IP host comms and
required for confi guration.
10/100 BASE-T
Full duplex, POE/POE+
Ethernet Port indicators
are shown below.
No Link O
100 Mbps
Amber
Reset !
Status
MAC ADDRESS
0001CE20001
Optical
Tamper
Power In
12V DC 5A Max
For full details of
power options and
requirements, see
page 3.
No Activity
Flashes for
Ethernet activity
Page 2
Reset
The Reset button
triggers a complete
system reboot
in the case of an
unresponsive system.
It is recessed to
prevent accidental
activation and can
be depressed using a
suitable tool or a pen.
Warning: Use ony
when requested by
Grosvenor Technical
Support.
Status LED
The Controller Status
LED reports the
controller state.
See Notes on page 4.
Optical Tamper
No connection is
needed; the optical
tamper is operational
when the case is
closed.
Blade Connection
One 2 Door Blade or one I/O
Blade can be installed. See Door
Blade Installation Guide for details
of confi guring doors and locks.
See I/O Blade Installation Guide
for details of confi guring extra
inputs and outputs.
