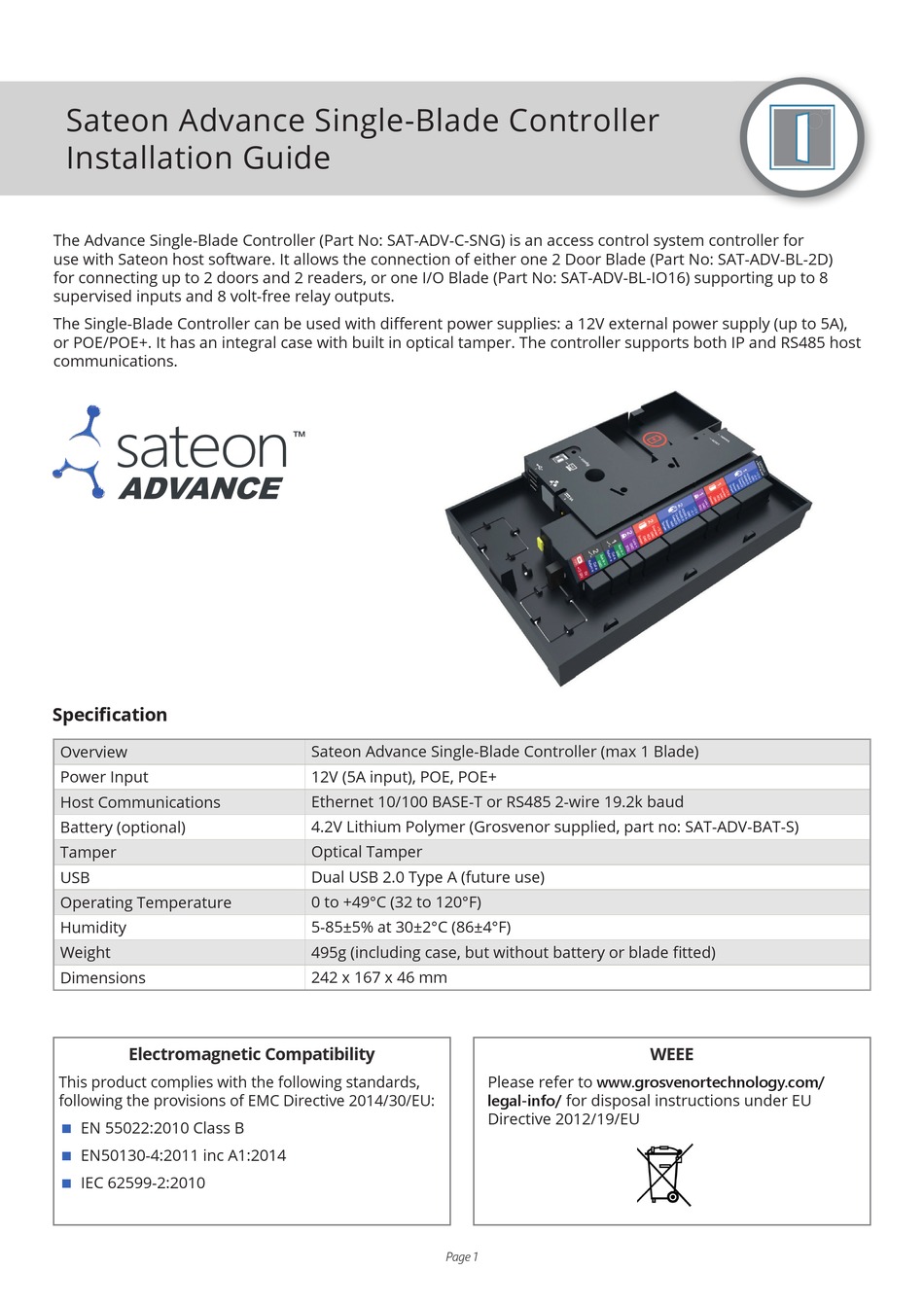

Sateon Advance Single-Blade Controller
Installation Guide

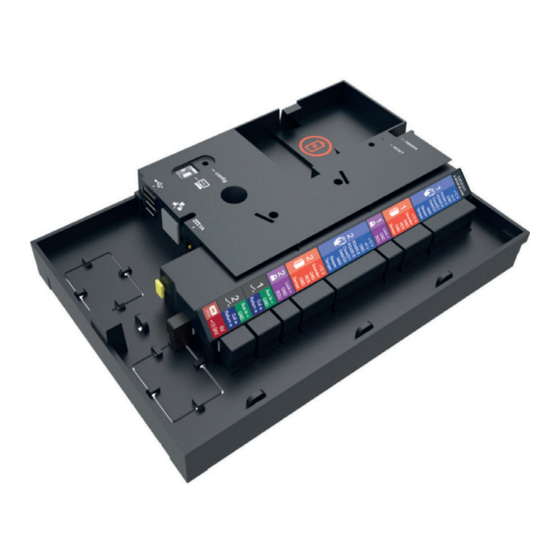

The Advance Single-Blade Controller (Part No: SAT-ADV-C-SNG) is an access control system controller for
use with Sateon host software. It allows the connection of either one 2 Door Blade (Part No: SAT-ADV-BL-2D)
for connecting up to 2 doors and 2 readers, or one I/O Blade (Part No: SAT-ADV-BL-IO16) supporting up to 8
supervised inputs and 8 volt-free relay outputs.
The Single-Blade Controller can be used with diff erent power supplies: a 12V external power supply (up to 5A),
or POE/POE+. It has an integral case with built in optical tamper. The controller supports both IP and RS485 host
communications.
Specifi cation
Overview
Power Input
Host Communications
Battery (optional)
Tamper
USB
Operating Temperature
Humidity
Weight
Dimensions
Electromagnetic Compatibility
This product complies with the following standards,
following the provisions of EMC Directive 2014/30/EU:
EN 55022:2010 Class B
EN50130-4:2011 inc A1:2014
IEC 62599-2:2010
Sateon Advance Single-Blade Controller (max 1 Blade)
12V (5A input), POE, POE+
Ethernet 10/100 BASE-T or RS485 2-wire 19.2k baud
4.2V Lithium Polymer (Grosvenor supplied, part no: SAT-ADV-BAT-S)
Optical Tamper
Dual USB 2.0 Type A (future use)
0 to +49°C (32 to 120°F)
5-85±5% at 30±2°C (86±4°F)
495g (including case, but without battery or blade fi tted)
242 x 167 x 46 mm
Page 1
WEEE
Please refer to www.grosvenortechnology.com/
legal-info/ for disposal instructions under EU
Directive 2012/19/EU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Sateon Advanc SAT-ADV-C-SNG
- Page 1 Sateon Advance Single-Blade Controller Installation Guide The Advance Single-Blade Controller (Part No: SAT-ADV-C-SNG) is an access control system controller for use with Sateon host software. It allows the connection of either one 2 Door Blade (Part No: SAT-ADV-BL-2D) for connecting up to 2 doors and 2 readers, or one I/O Blade (Part No: SAT-ADV-BL-IO16) supporting up to 8 supervised inputs and 8 volt-free relay outputs.
- Page 2 Connections Connections Sateon Single Tampo Printing 1v0 Battery Reset An optional Lithium The Reset button Reset Polymer 6,000mAh triggers a complete battery may be system reboot Status used to provide a in the case of an battery back-up unresponsive system. service during power It is recessed to outages.
-
Page 3: Power Options
Power Options The Advance Single-Blade Controller has a Although we cater for up to 4A locks, many only sophisticated power management system with a require a few 100mA so could be used with PoE+. Note choice of input sources. As well as supplying the power that the PoE source could have its own battery backup. -
Page 4: Status Led
Notes Battery Load/Clear Button (Confi g) An optional lithium polymer 6,000mAh battery may This button has three purposes: be used to provide a battery back-up service. Using a To reset Press button, wait for LED battery ensures continuing power to controller and all attached devices during power outages. -
Page 5: Rs485 Confi Guration
RS485 confi guration RS485 Connections If RS485 is used, up to 16 Advance controllers can be daisy-chained together in a line (a combination of Single-Blade and Multi-Blade controllers can be used). Advance Advance 485 Advance 485 Relay Controller Controller Controller Screen One controller must be confi...
