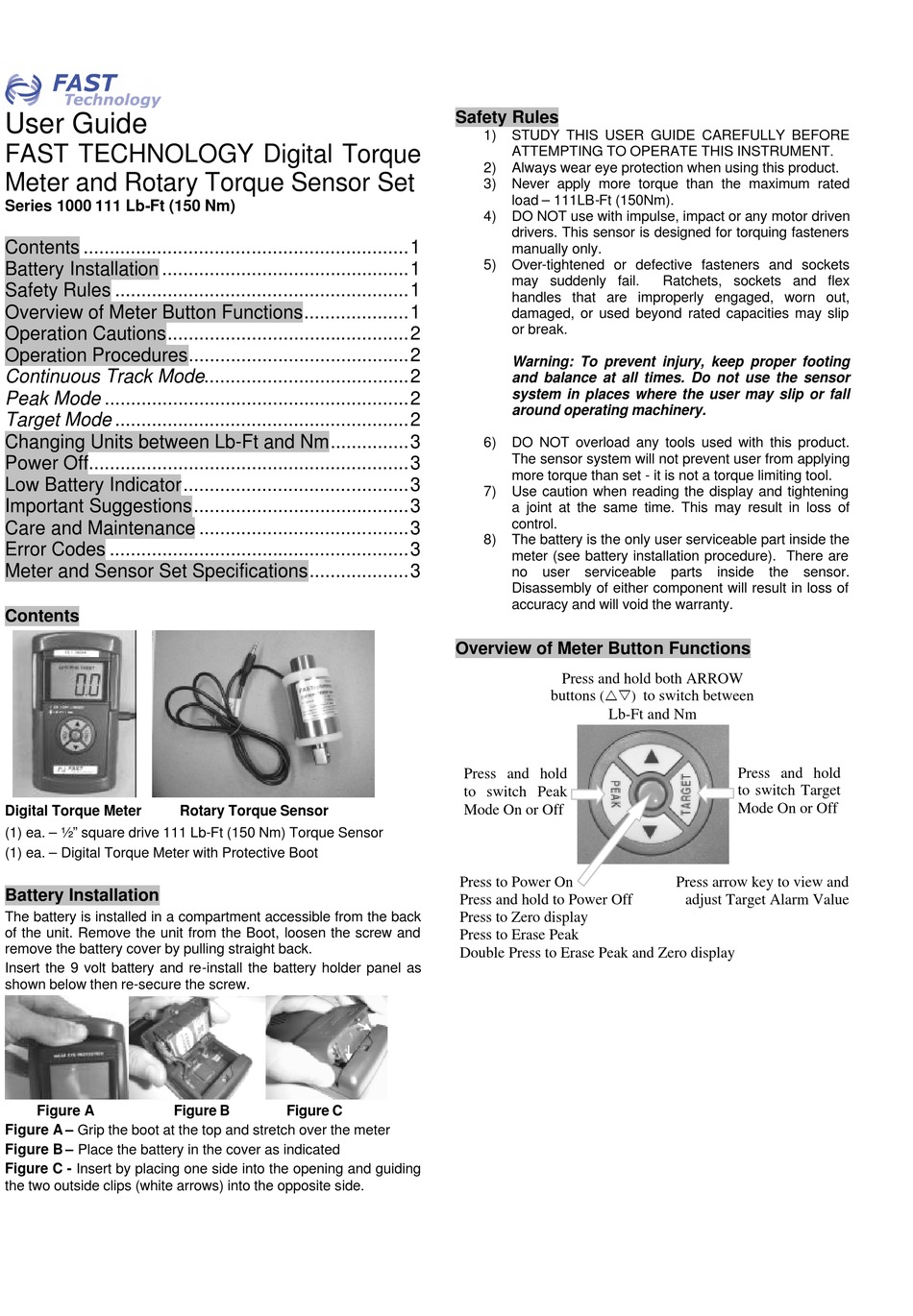

Fast 1000 Series User Manual

User Guide
FAST TECHNOLOGY Digital Torque
Meter and Rotary Torque Sensor Set
Series 1000 111 Lb-Ft (150 Nm)
Contents ..............................................................1

Battery Installation ...............................................1

Safety Rules ........................................................1

Overview of Meter Button Functions....................1

Operation Cautions..............................................2
Operation Procedures..........................................2
Continuous Track Mode.......................................2
Peak Mode ..........................................................2
Target Mode ........................................................2
Changing Units Between Lb-Ft And Nm...............3
Power Off.............................................................3
Low Battery Indicator...........................................3
Important Suggestions.........................................3
Care And Maintenance ........................................3
Error Codes .........................................................3
Meter And Sensor Set Specifications...................3
Contents
Digital Torque Meter
(1) ea. – ½" square drive 111 Lb-Ft (150 Nm) Torque Sensor
(1) ea. – Digital Torque Meter with Protective Boot
Battery Installation
The battery is installed in a compartment accessible from the back
of the unit. Remove the unit from the Boot, loosen the screw and
remove the battery cover by pulling straight back.
Insert the 9 volt battery and re-install the battery holder panel as
shown below then re-secure the screw.
Figure A Figure B
Figure A – Grip the boot at the top and stretch over the meter
Figure B – Place the battery in the cover as indicated
Figure C - Insert by placing one side into the opening and guiding
the two outside clips (white arrows) into the opposite side.
Rotary Torque Sensor
Figure C
Safety Rules
1) STUDY THIS USER GUIDE CAREFULLY BEFORE
ATTEMPTING TO OPERATE THIS INSTRUMENT.
2) Always wear eye protection when using this product.
3) Never apply more torque than the maximum rated
load – 111LB-Ft (150Nm).
4) DO NOT use with impulse, impact or any motor driven
drivers. This sensor is designed for torquing fasteners
manually only.
5) Over-tightened or defective fasteners and sockets
may suddenly fail.
handles that are improperly engaged, worn out,
damaged, or used beyond rated capacities may slip
or break.
Warning: To prevent injury, keep proper footing
and balance at all times. Do not use the sensor
system in places where the user may slip or fall
around operating machinery.
6) DO NOT overload any tools used with this product.
The sensor system will not prevent user from applying
more torque than set - it is not a torque limiting tool.
7) Use caution when reading the display and tightening
a joint at the same time. This may result in loss of
control.
8) The battery is the only user serviceable part inside the
meter (see battery installation procedure). There are
no user serviceable parts inside the sensor.
Disassembly of either component will result in loss of
accuracy and will void the warranty.
Overview of Meter Button Functions
Press and hold both ARROW
buttons
(rs)
Lb-Ft and Nm
Press and hold
to switch Peak
Mode On or Off
Press to Power On
Press and hold to Power Off
Press to Zero display
Press to Erase Peak
Double Press to Erase Peak and Zero display
Ratchets, sockets and flex
to switch between
Press and hold
to switch Target
Mode On or Off
Press arrow key to view and
adjust Target Alarm Value
