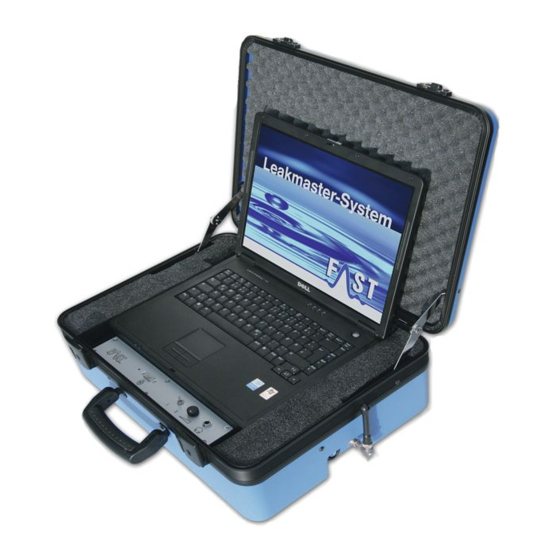

1 Technical Description Lokal-200PC
1.1 Overview
laptop with in-built accummulator
USB connection correlator box
internal power supply laptop (if the
device has been supplied by F.A.S.T.)
BNC aerial connection
reset key for correlator box
external power supply/charging 12 volts
LED 12v power supply, external (lit red
when in operation)
plug-in connector for Bluetooth dongle
(dongle available as an accessory)
radio reception indicator LEDs (LED
channel colour A red, B yellow, C blue)
channel selection switch for volume (internal loudspeaker
or headphones)
Position I left: channel A or B
Position 0 central: off
Position II right: channel B or C
volume regulator for internal loudspeaker or headphones
6.3mm jack plug, headphones
connection for the transmitter of radio headphones
(radio headphones available as an accessory)
LED 12 volts power supply, internal accummulator (LED
red, flashes when voltage has fallen below 12 volts)
LED correlator box ON / OFF (LED red, is illuminated as
soon as the programme starts the box)
ON key (to switch on the correlator box in the Bluetooth
operation mode)

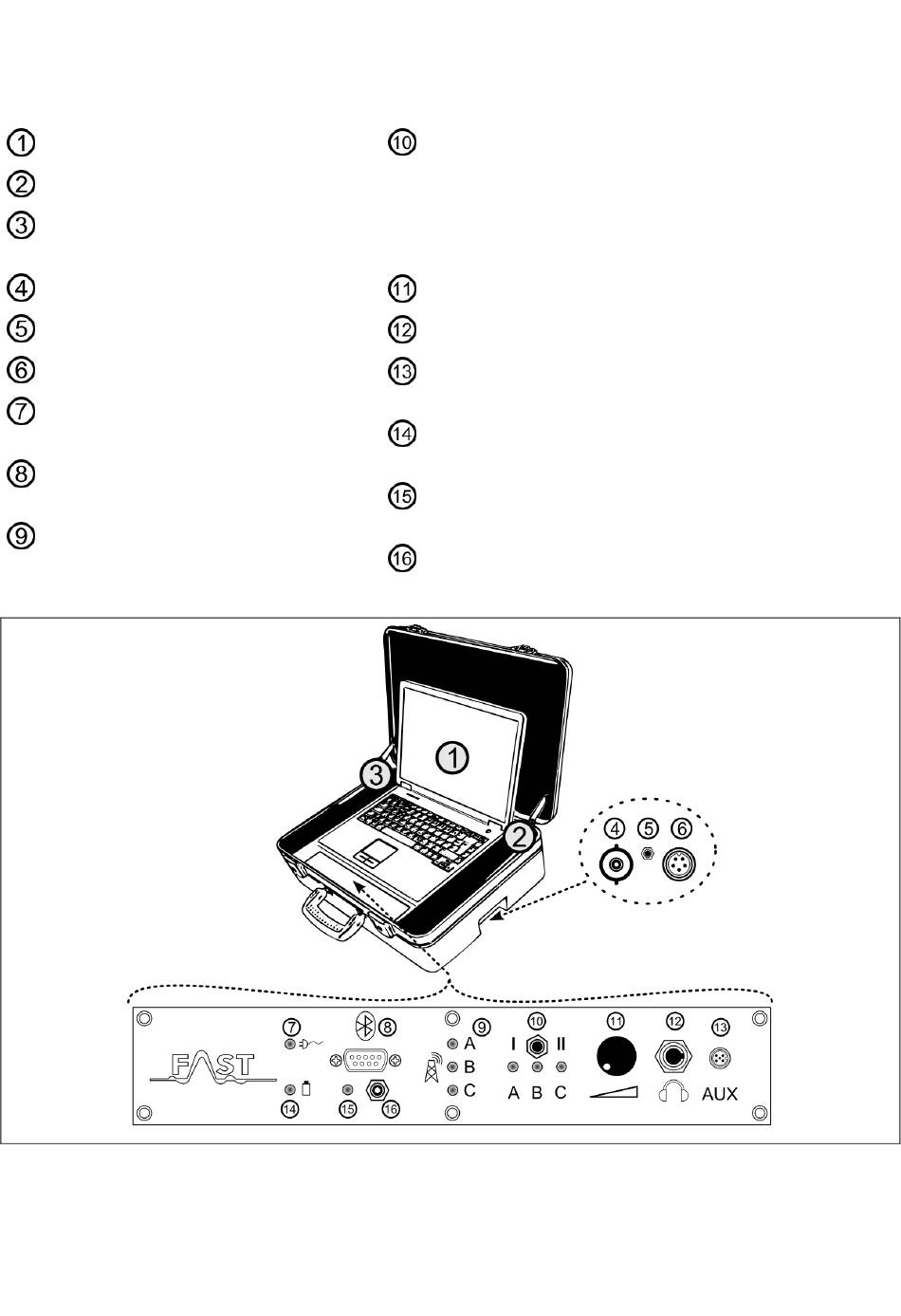

Illustration 1-1: Lokal-200PC overview
Advertisement
Table of Contents
Related Manuals for Fast Lokal-200PC
Summary of Contents for Fast Lokal-200PC
- Page 1 1 Technical Description Lokal-200PC 1.1 Overview channel selection switch for volume (internal loudspeaker laptop with in-built accummulator or headphones) USB connection correlator box Position I left: channel A or B Position 0 central: off internal power supply laptop (if the device has been supplied by F.A.S.T.)
-
Page 2: Scope Of Delivery
1.2 Scope of delivery 1x unit correlator case, contains: 2x units MB-4 measurement boxes correlator box 1x unit MB-4 accummulator charger receiver channel A receiver channel B Optional accessories: receiver AZ logger 1x unit Dell ATG laptop 1x unit 12 volt accummulator charger 1x unit 100-240 volt charger 1x unit 12 volt power supply cable 1x unit 12 volt charger (integrated in the... -
Page 3: Control Panel
If the laptop has not been supplied by F.A.S.T., please make sure that your laptop meets the system requirements as listed in Chapter 1.3.5. Illustration 1-3: Lokal-200PC point 3 Another component integrated in the case is the control panel as can be seen in Illustration 1-3,... - Page 4 ) starts flashing. Both LEDs, however, indicate only the voltage status of the correlator box accummulators. The charging status of the laptop accummulator is indicated in the task bar on the display of the laptop. If wireless communication between the laptop and the correlator box is desired, you can establish such wireless communication by means of the optional Bluetooth dongle (see Chapter 1.3.4).
-
Page 5: Power Supply
switches to headphones and de-activates the internal loudspeaker. The volume for the loudspeaker and for point 5 the headphones respectively is controlled through the regulator as shown under point 7 The jack as shown under (Illustration 1-4) is to provide the connection to the transmitter of radio headphones, which are available as an accessory. - Page 6 Illustration 1-6: 12V power cable If the correlator is operated through the power cable, the accummulator is also charged at the same time. This means that both the accummulator of the correlator box and the accummulator of the laptop (if supplied by F.A.S.T.) are charged while the device is being operated.
- Page 7 Illustration 1-7: Ansmann accummulator charger When all cables of the power supply unit have been connected, the charger starts re-charging. The first process is a 10-second test phase of the accummulator. This test is indicated through the red LED (see point 1 Illustration 1-7, ), which flashes for 10 seconds after all cables have been connected.
-
Page 8: Bluetooth Dongle
1.3.4 Bluetooth dongle The Bluetooth dongle, which is available as an optional accessory (art. no. 9330D), is a Class-1 module and communicates on a frequency of 2.4 GHz. The Bluetooth dongle (subsequently referred to as “module“) is compatible with Bluetooth specification 1.2 and capable of communicating with the laptops supplied by F.A.S.T., which are als equipped with a Bluetooth module. -
Page 9: Cd/Dvd Drive
point 6 The switch marked with activates the Master mode if the switch position is (left position). This means that a module which operates in the Master mode controls communication. As the correlator programme, i.e. the laptop, controls communication, the switch may remain at the position, as can be point 7 seen in Illustration 1-9.
