PowerFlex® DC Drive - Cooling Fan for Frame A Drives Rated 73A and Higher with 230V and 460V AC Input
2. Loosen the two screws that secure the power terminal cover to the
bottom of the drive and slide the cover down and off the chassis.
3. If necessary, remove the power wiring from the drive terminals.
4. Remove the Field terminal block from the drive.
5. Remove the two screws that secure the bottom air flow plate to the
power terminal insulation strip.

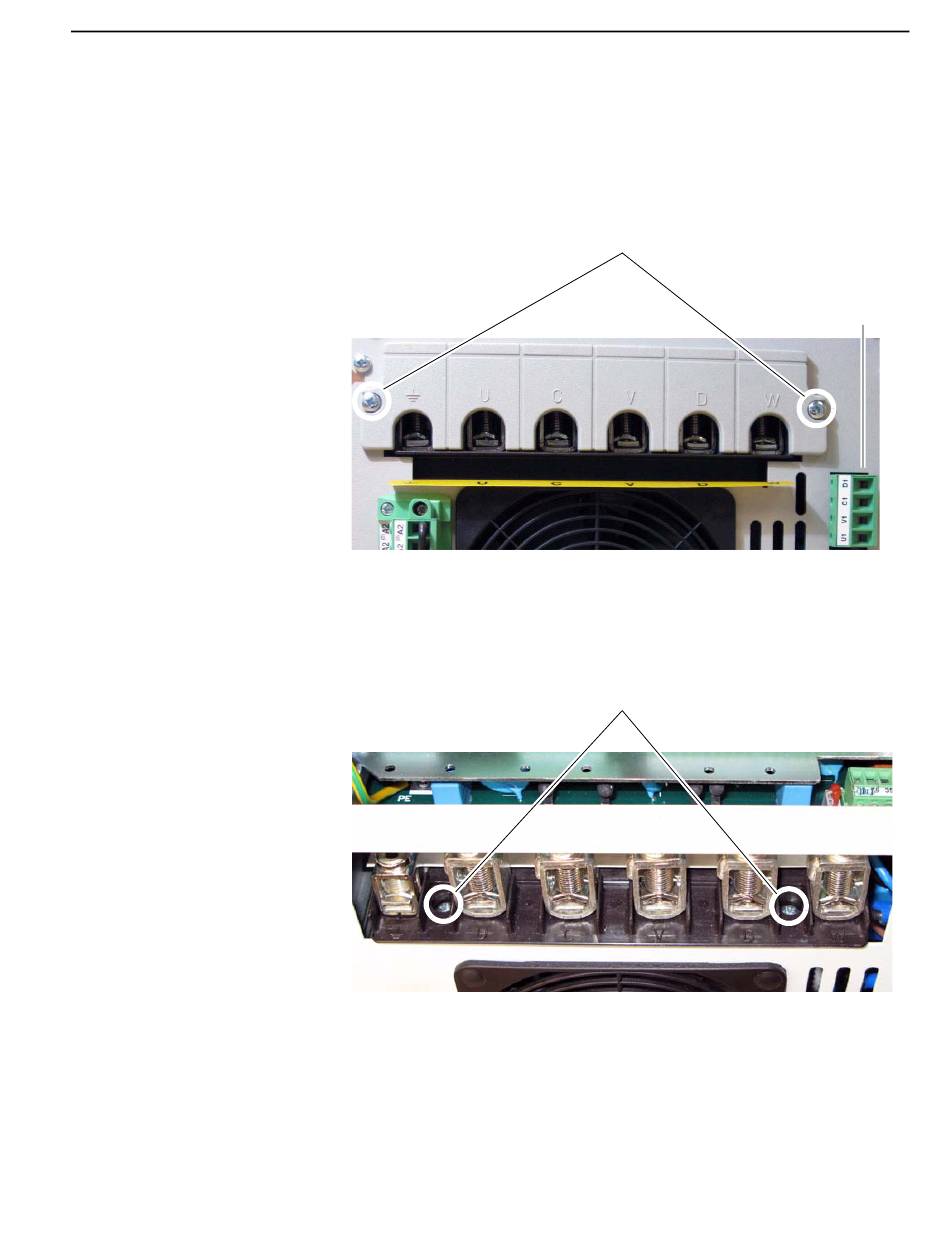

Remove screws and
Power terminal cover
Remove screws
3
Remove the Field
terminal block
