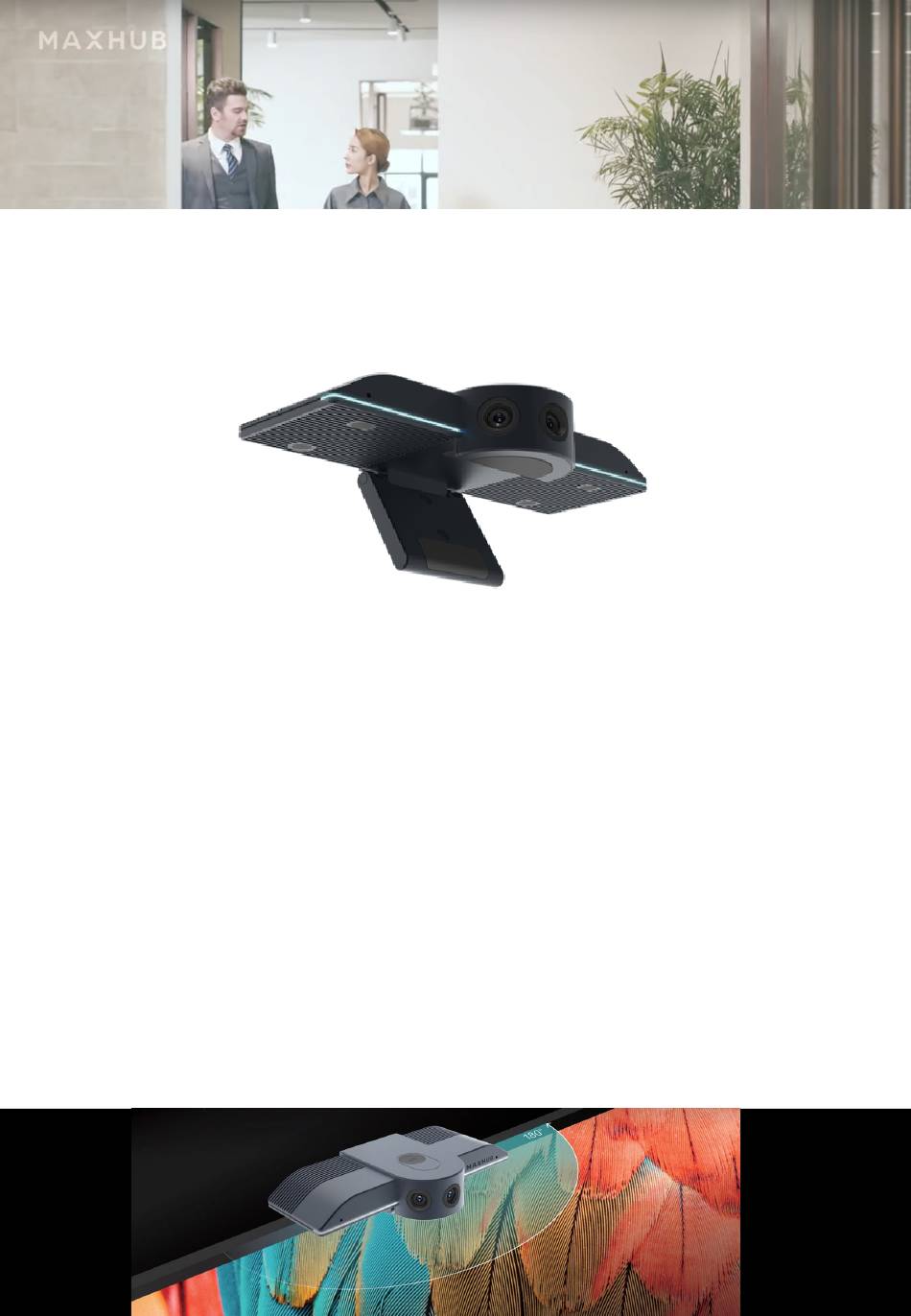

QUICK START GUIDE
UC M30
UC M30
4K UHD 180° Panoramic Cam:
Introduction
The UC M30 is a professional 180° Panoramic Camera. It includes 3 single Cameras with 12MP, USB
Type-A and Type-C connections, and includes a 1,5m USB cable plus a wallmount adapter.
It offers some very unique features, like 180° panoramic view, Tracking-Mode, Picture stiching &
composing, and up to 11 different Display Layouts (Display-Modes). The Low Lux algorithm is another
outstanding feature which guarantees a crisp and clear picture under every light or dark condition. The
two integrated Microphones provide a pick up distance of up to 4m. The clamp on the unit allows for
easy mounting on a lot of Displays, and it also contains a screw connection to put it on a standard
camera tripod.
There are actually two ways to use and setup the UC M30 Camera:
Without the software: PART 1
Simply use the push botton on top of the UC M30 and select one of the 5 available Display-Modes.
Using the software: PART 2
Download PanoCam Studio software, select one out of 6 available Display-Modes, and adjust the
picture layout, tracking mode and other things to your own favour.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MAXHUB UC M30
Summary of Contents for MAXHUB UC M30
- Page 1 There are actually two ways to use and setup the UC M30 Camera: Without the software: PART 1 Simply use the push botton on top of the UC M30 and select one of the 5 available Display-Modes. Using the software: PART 2 Download PanoCam Studio software, select one out of 6 available Display-Modes, and adjust the picture layout, tracking mode and other things to your own favour.
- Page 2 WIB01, simply ask your local sales to get pricing and specifications. MAXHUB WIB01 tripod Using the push button on top of the UC M30, will allow you to switch between the 5 Display-Modes: The 5 Display-Modes via push button selection: Mode 1 180°...
- Page 3 Usage with PanoCam Studio Software PART 2 When you unpack the UC M30, please take the USB cable included in the box and connect it to your PC or Laptop, using the Type-Connection on the rear side of the unit.
- Page 4 Usage with PanoCam Studio Software After you click on one of the 6 available Display-Modes, you can start to manually select the people in the room or sections of the room, by drawing a „frame“ onto the picture layout by clicking and holding the left mouse button.
- Page 5 Usage with PanoCam Studio Software Here you will find the description of the 6 Display-Modes , when using the PanoCam Studio software:...
- Page 6 Extended 180° FoV When the layout of your Huddle Room asks for a 180° panoramic Camera, the UC M30 is a real good choice. Even if the outer seats are very close to the Display, the 180° FoV will greatly deal with this situation.
- Page 7 Adding Audio to your Meeting applications was never easier than today! Select the MAXHUB BM21 or BM20 Speakerphone, and either connect to the UC M30 via the USB cable (BM20) or choose the BM21 including the BT Dongle, to connect wirelessly via Bluetooth to the UC M30.
