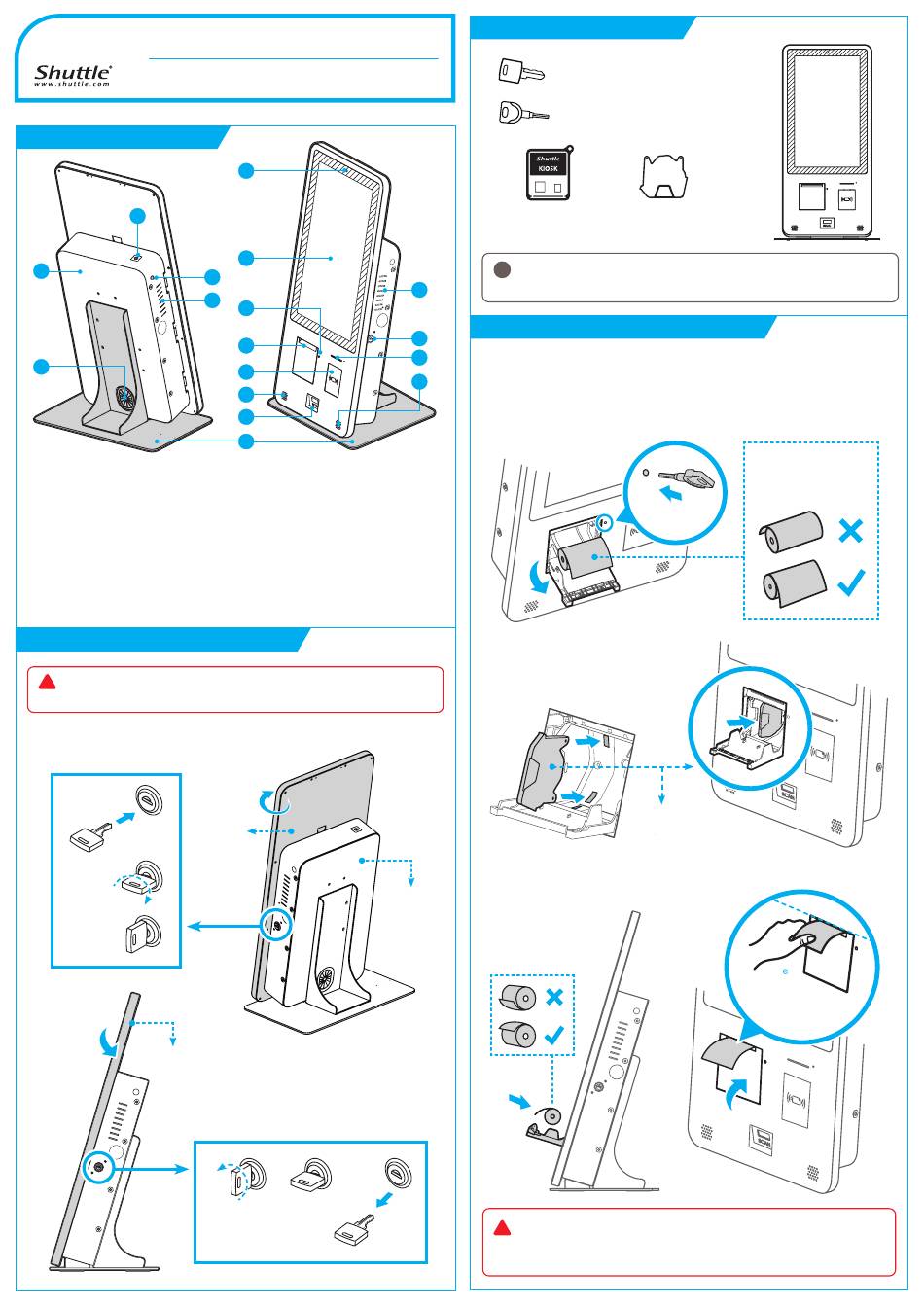

Shuttle Kiosk K21 Series Quick Start Manual

Kiosk K21 Series
Quick Start Guide 快速啓用指南
Product Overview 產品外觀
1
2
3
1. Power switch 6. Webcam
電源開關按鈕 網路攝影機
2. Rear case 7. 21" Touch display
後背蓋 21" 觸控顯示器
3. Cable hole 8. Release button
集線孔 釋放按鈕
4. Connector for wifi antennas 9. Receipt printer
Wifi 天線連接埠 明細印表機
5. Thermal vent 10. NFC RFID reader
散熱孔 感應讀卡機
Opening / Closing the Kiosk 打開 / 關閉 Kiosk
For safety reasons, please ensure that the power cord is disconnected before opening the
!
case. Do not attempt to open the system unless by authorized qualified personnel.
基於安全考量, 打開機箱時, 請先拔除電源線。切勿自行打開機箱, 必需經授權的專業人員方能打開機箱。
1. Insert the key into the lockhole at the rear case and turn it clockwise to open the front panel.
將鑰匙插入機箱後背蓋上的鎖孔, 然後順時針旋轉以打開前面板。
a
Front panel
b
Clockwise
順時針
Unlock
c
解鎖
a
Front panel
前面板
Lockhole
鎖孔
互動式資訊服務站
Copyright © 2021, Shuttle Corporation. All Rights Reserved
6
7
4
5
8
9
10
11
12
15
11. Speakers
揚聲器
12. Barcode scanner
條碼掃描器
13. Front panel's lockhole
前面板鎖孔
14. IC card reader
IC 晶片讀卡機
15. Counter mount (optional)
台面安裝 (選配)
d
前面板
Lockhole
鎖孔
2. Close the front panel in reverse
order and remove the key.
關閉前面板並用鑰匙以反方向上鎖,
並拔下鑰匙。
d
b c
Counter- Lock
clockwise 上鎖
逆時針
Package Contents 包裝內容物
Magnetic Keychain (x1)
磁鐵鑰匙圈 (x1)
The product's colour and specifications may vary from the actually shipping product.
i
Should any accessories be required, please contact Shuttle or your relevant supplier.
5
出貨機種顏色及規格配備, 以實際出貨機種為準。如果需要任何配件, 請直接洽詢 Shuttle 或當地供應商。
Changing the Thermal Roll Paper 更換熱感卷紙
13
1. As shown, use the key to push the release button to open the printer cover.
14
如圖所示, 使用鑰匙按下釋放按鈕, 以打開印表機門蓋。
11
2. Remove the used paper roll from the paper tray and load the new paper roll.
Make sure that a few inches of the paper is extended over the cover edge.
移除紙匣上剩餘的紙捲並裝入新的紙捲。請預留幾英吋的紙張, 讓它延伸出來到上蓋的邊緣。
b
 5 8mm thermal paper partition installation.

Paper roll width 80mm / 58mm selectable.
58mm 熱感紙捲隔板安裝。
紙捲寬度可選擇 80mm / 58mm。
3. Close the printer cover. Tear the excess paper across the tear bar.
關上印表機門蓋, 撕掉多餘外露的紙張。
Rear case
後背蓋
c
Do not touch the print head thermal elements. The print head becomes very hot just after
!
printing and is very dangerous. Be sure to allow the print head to cool down (after printing)
before cleaning it. Also, be sure to turn off the rinter power before cleaning the print head.
請勿觸摸列印頭的熱感元件。在經過列印之後, 列印頭變得非常的熱且十分危險。在您要進行清潔之前,
請確認給它一段時間讓它溫度降下來。另外, 在進行清潔之前也一定要確認將印表機的電源關閉。
The key to the case rear door. (x2)
機箱後背門的鑰匙 (x2)
The key to the printer cover. (x3)
印表機蓋的鑰匙 (x3)
Roll Paper Partition (x1)
紙捲隔板 (x1)
a
Release button
釋放按鈕
58mm paper roll only
僅適用於 58mm 紙捲
d
K21RK01 / K21WL01 (x1)
Make sure the paper roll
is loaded in the direction.
請確認您的紙卷是以
正確的方向置入。
Cut the paper neatly.
平整地切齊紙面
