Shuttle K11 Series Quick Start Manual

Kiosk K11 Series
Quick Start Guide 快速啓用指南

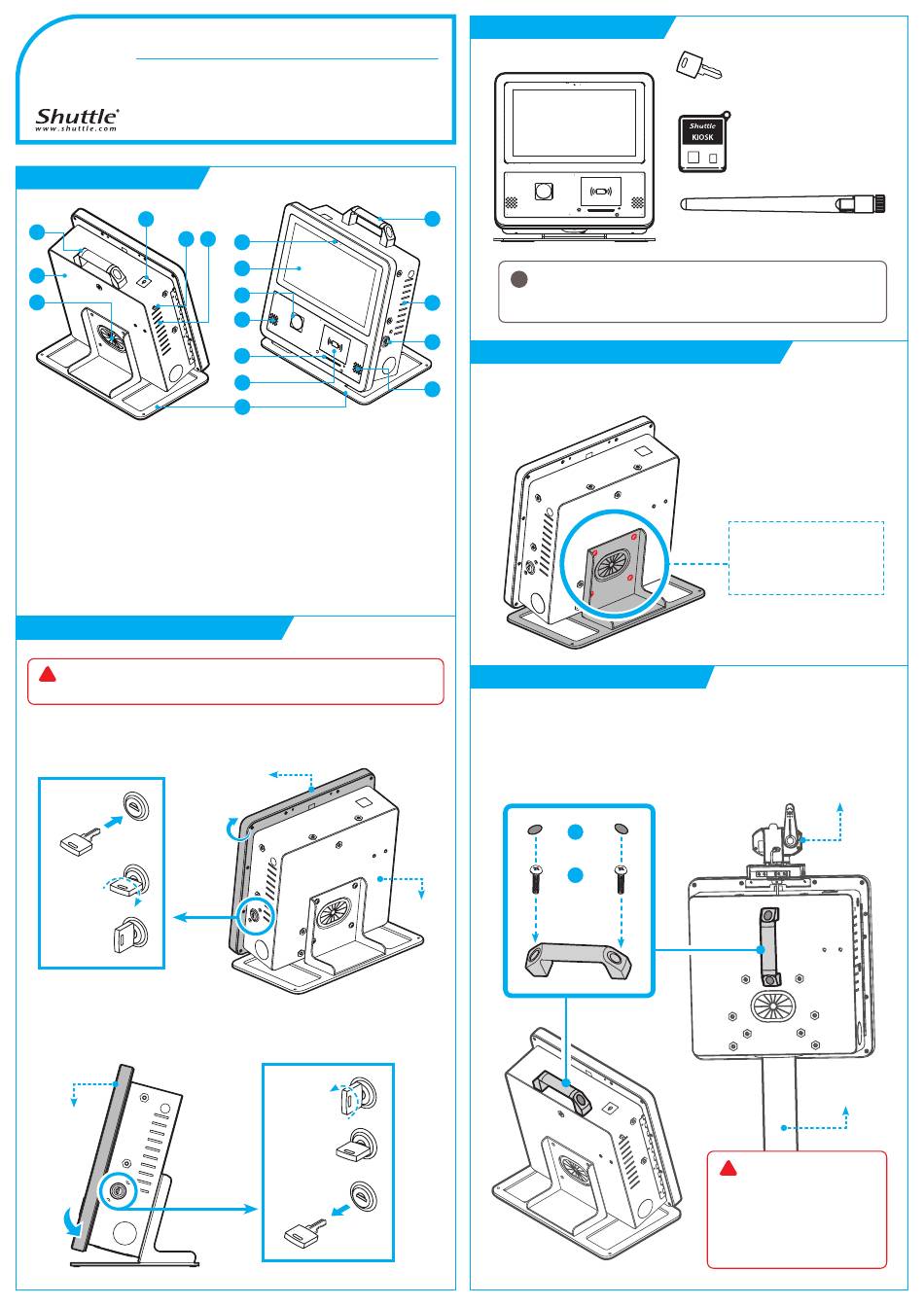

Product Overview 產品外觀
1
2
5
3
4
1. Power switch 6. Thermal vent
電源開關按鈕 散熱孔
2. Handle 7. Webcam
把手 網路攝影機
3. Rear case 8. 11" Touch display
後背蓋 11" 觸控顯示器
4. Cable hole 9. Barcode scanner
集線孔 條碼掃描器
5. Connector for wifi antennas 10. Speakers
Wifi 天線連接埠 揚聲器
Opening / Closing the Kiosk 打開 / 關閉 Kiosk
For safety reasons, please ensure that the power cord is disconnected before opening the
!
case. Do not attempt to open the system unless by authorized qualified personnel.
基於安全考量, 打開機箱時, 請先拔除電源線。切勿自行打開機箱, 必需經授權的專業人員方能打開機箱。
1. Insert the key into the lockhole at the rear case and turn it clockwise to open the front panel.
將鑰匙插入機箱後背蓋上的鎖孔, 然後順時針旋轉以打開前面板。
Front panel 前面板
a
b
Clockwise
Lockhole
順時針
鎖孔
Unlock
c
解鎖
2. Close the front panel in reverse order avnd remove the key.
關閉前面板並用鑰匙以反方向上鎖, 並拔下鑰匙。
Front panel
前面板
Lockhole
鎖孔
a
互動式資訊服務站
Copyright © 2021, Shuttle Corporation. All Rights Reserved
6
7
8
9
10
11
12
13
14
11. IC card reader
IC 晶片讀卡機
12. NFC RFID reader
感應讀卡機
13. Front panel's lockhole
前面板鎖孔
14. Counter mount (optional)
台面安裝 (選配)
d
Counter-
clockwise
b
逆時針
Lock
c
上鎖
d
Package Contents
Kiosk K11WL02/K11RK02 (x1)
2
The product's colour and specifications may vary from the actually shipping product.
i
Should any accessories be required, please contact Shuttle or your relevant supplier.
出貨機種顏色及規格配備, 以實際出貨機種為準。
6
如果需要任何配件, 請直接洽詢 Shuttle 或當地供應商。
13
Counter mount Installation (optional)
As shown, install the counter mount and secure with the four screws.
10
如圖所示, 安裝台面, 並鎖上四顆螺絲固定。
Handle Installation
1. Install the handle and secure with the two screws.
安裝把手, 並鎖上兩顆螺絲固定。
2. Gently push the two rubber cover into the two screw holes until it properly sits in place.
輕壓 2 個橡膠蓋於 2 個螺絲孔中, 直至其正確就位。
2
1
Rear case
Handle
後背蓋
把手
a
包裝內容物
The key to the case rear door. (x2)
機箱後背門的鑰匙 (x2)
Magnetic Keychain (x1)
磁鐵鑰匙圈 (x1)
Wi-Fi Antenna (x1) Wi-Fi 天線 (x1)
台面安裝 (選配)
Counter Mount 100 x 100 mm
Screws M6 x 12L * 4pcs
台面安裝 100 x 100 公釐
螺絲 M6 x 12L * 4顆
把手安裝
b
If you want to move the Kiosk,
!
please use the handle (a, b) to
assist in the operation. Do not pull the
white front frame parts to avoid structural
damage caused by uneven force on the
left and right sides of the Kiosk.
欲移動 Kiosk 請利用機台上的把手 (a, b)
輔助操作, 請勿拉扯白色前框部件,
避免 Kiosk 左右受力不均造成結構受損。
Thermometer (optional)
測溫機 (選配)
Pole mount (optional)
桿式底座 (選配)
