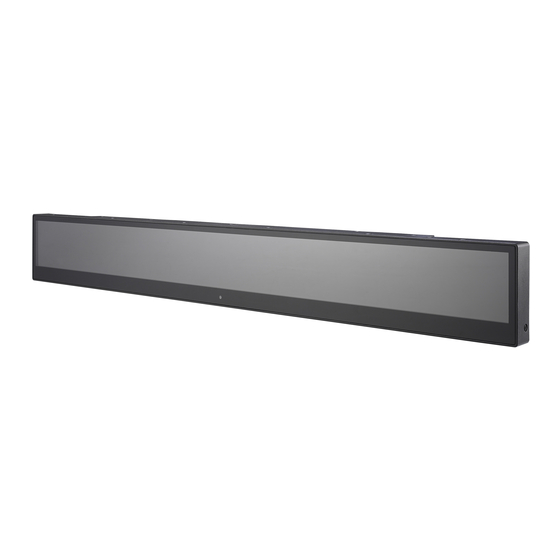

Shuttle D230 Quick Start Manual
  1. Manuals
  2. Brands
  3. Shuttle Manuals
  4. Digital Signage
  5. D230
  6. Quick start manual

Shuttle D230 Quick Start Manual

Software quick start guide
Hide thumbs Also See for D230:
Table of Contents

Advertisement

Quick Links

Download this manual
D230 Software Quick Start Guide
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D230 and is the answer not in the manual?

Questions and answers

Related Manuals for Shuttle D230

Summary of Contents for Shuttle D230

  • Page 1 D230 Software Quick Start Guide English...
  • Page 2 Disclaimer Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product. Shuttle® Inc. makes no representation or warranty regarding the contents of this manual.

  • Page 3: Table Of Contents

    D230 device network settings ............2 Wi-Fi settings ..................2 Ethernet settings ..................3 2.1.3 Connect Mobile Phone to the Device .......... 2 3 Design content using the D230 app ................3 Creating a project ................... 3 3.1.1 Selecting a layout ................4 3.1.2 Editing a Content ................

  • Page 4: D230 Introduction

    Content can be scheduled and uploaded to play on the D230 device. The D230 Mobile app runs on Android 7.x and iOS 11.x or higher as provided by the manufacturer. D230 mobile app icon...

  • Page 5: Setup Of D230 Environment

    2 Setup of D230 environment The D230 is in AP mode before the initialization process starts. The D230 Mobile App connects to the local area network of the D230 device, it will change to default mode once the network settings are done.

  • Page 6: Ethernet Settings

    DNS1( optional)  DNS2( optional) 4. Tap ”Next” to finish the Ethernet settings. Note: If the network cannot set, please check the status of your Wi-Fi router, reset 4.4 D230 factory reset) the D230 device and connect again. (Please refer to...

  • Page 7: Connect Mobile Phone To The Device

    Default Information of connecting to D230 Device :  Network name(SSID): D230_XXXXX(The serial number of the D230 is on the back of the device. The last 5 digits are part of the SSID. For example, if the S/N is D230001001J24F56789, the default SSID then is "D230_56789".)

  • Page 8: Design Content Using The D230 App

    English 3 Design content using the D230 app 3.1 Creating a project Steps: 1 Tap the icon to launch the D230 app. 2 Tap to create a new project. 3 Enter the project name. 4 Tap “OK to finish project naming.

  • Page 9: Selecting A Layout

    D230 Software Quick Start Guide English Selecting a layout 3.1.1 Steps: 1 Select a layout.  Landscape  Right 90  Left 90 2 Select division of the layout.  Full screen  2 Divisions  3 Divisions  4 Divisions...

  • Page 10: Editing A Content

    The pictures and videos set as “Default Content” will be played continuously. Content type Right Landscape Left 90∘ 90∘  － － Scrolling text    Picture    Video Note: The resolution on the D230 is 1920x158px.
  • Page 11 D230 Software Quick Start Guide English  Scrolling text Steps: 1. Choose “Scrolling Text”. 2. Enter text content (upmost 150 characters). 3. Choose font size (24-160 pt). 4. Tap ”Text/Background Color”. 5. Choose text color and background color. 6. Set text rolling direction.
  • Page 12 D230 Software Quick Start Guide English  Picture / Video Steps: 1. Choose “Picture/Video”. 2. Select pictures/video animated effects. 3. Set pictures/video animated speed. 4. Check “Mute” box to mute the video if required. 5. Tap “Select” to add picture or video files.

  • Page 13: Recognizing Content

    D230 Software Quick Start Guide English 3.1.2.2 Recognizing content Steps: Recognition 1. Tap ”Recognition Content”. Content type Content 2. Select the rule:  Scrolling text  None: Do not to use feature detection.  Picture  Video  Full: Recognized content plays on full screen.

  • Page 14: Preview

    D230 Software Quick Start Guide English Preview 3.1.3 Steps: 1. Tap “Preview” to see default content. 2. Tap to toggle the recognized content. 3. Tap ”OK” to finish the preview and go back to contents page.

  • Page 15: Project Scheduling

    D230 Software Quick Start Guide English 3.2 Project scheduling Adding a project schedule 3.2.1 Steps: 1. Tap to the project schedule page. 2. Choose play dates or check the “Twenty-Four-Seven” box. 3. Set start time. 4. Set end time. 5. Tap to finish schedule settings.

  • Page 16: Viewing Project Schedules

    D230 Software Quick Start Guide English Viewing project schedules 3.2.2 You can view all schedules on two pages.  Project list  Project schedule Steps: 1. Tap to view all schedules. 2. Tap to reload schedule list. 3. Tap to go back to list.

  • Page 17: Uploading A Project

    D230 Software Quick Start Guide English 3.3 Uploading a project Select project 3.3.1 Steps: 1 Choose a project schedule from the project list. 2 Tap “Preview” in the function bar below if required. 3 Tap to upload project(s). 4 Tap to set the password for the new device.

  • Page 18: Uploading A Project

    Note:  The default device name is "D230_XXXXX"(Last 5 digits of serial numbers are shown in the back of the D230 device.).  The device name can only contain 1-20 of English letters (A-Z, a-z), digits (0-9) & special characters (“-“, “_”).

  • Page 19: Upload Warning

    D230 Software Quick Start Guide English Upload warning 3.3.4   Layout differs from the  Project name is duplicate Conflicting or already last version existing schedule   Invalid password Low storage space...

  • Page 20: Editing A Project

    D230 Software Quick Start Guide English 3.4 Editing a project Steps: 1 Choose a project in Project list. 2 Tap “Edit” in the function bar, to edit the following details.  Project name  Layout template  Content  Project schedule Note: If you want to delete the project, tap “Delete”...

  • Page 21: Changing The Layout

    D230 Software Quick Start Guide English Changing the layout 3.4.2 Steps: Note: This process will discard all Tap “Change layout” in the function bar unsaved data. below. Tap “Change“ to confirm to change layout.

  • Page 22: Settings

    D230 Software Quick Start Guide English 3.5 Settings Steps: 1 Tap on the title bar of the Project list. 2 Check the box to have sleep mode.  Tap “Add time” to set sleep mode time. Select the day of the week, start time and end time.

  • Page 23: D230 Device

    4.2 Playing content  The D230 device automatically plays the projects according to the schedule.  If the D230 has no project scheduled, the default logo file will be displayed.  Sleep mode  If the D230 is scheduled for sleep mode, it will stop playing the project, backlight and camera will be turned off.

  • Page 24: Changing The Default Logo In D230 Device

    To perform a factory reset, press down the pinhole for 5 seconds which sits left of the SIM card slot on the rear side of the D230. All files on the device will be deleted and the D230 will be set to its uninitialized state (AP mode).

  • Page 25: Appendix

    D230 Software Quick Start Guide English Appendix Video Cropping Tools Choose from the following video cropping tools and download to your Android/iOS/Windows/Mac device to edit video into correct resolution to play on your D230 device. Android 1 Crop & Trim Video, Alpha Project 2 YouCut, InShot Inc.

  • Page 26: Video Resolutions

    D230 Software Quick Start Guide English Video Resolutions Applicable to the resolution of each division. Landscape Right 90∘ Left 90∘ Full screen 1920 x 158px 158 x 1920px 2 divisions 960 x 158px 158 x 960px 3 divisions 620 x 158px...
  • Page 27 D230 Software Quick Start Guide English Shuttle Inc. http://global.shuttle.com Department E-mail Contacts: Sales: sales@tw.shuttle.com Technical Support E-mail: support@tw.shuttle.com Media Contact: shuttlepr@tw.shuttle.com © 2019 SHUTTLE Inc. All rights reserved. December 2019...
