2. Step by step instructions
Turn power on to the control panel. Both power on, and system healthy indicator
lamps should illuminate.

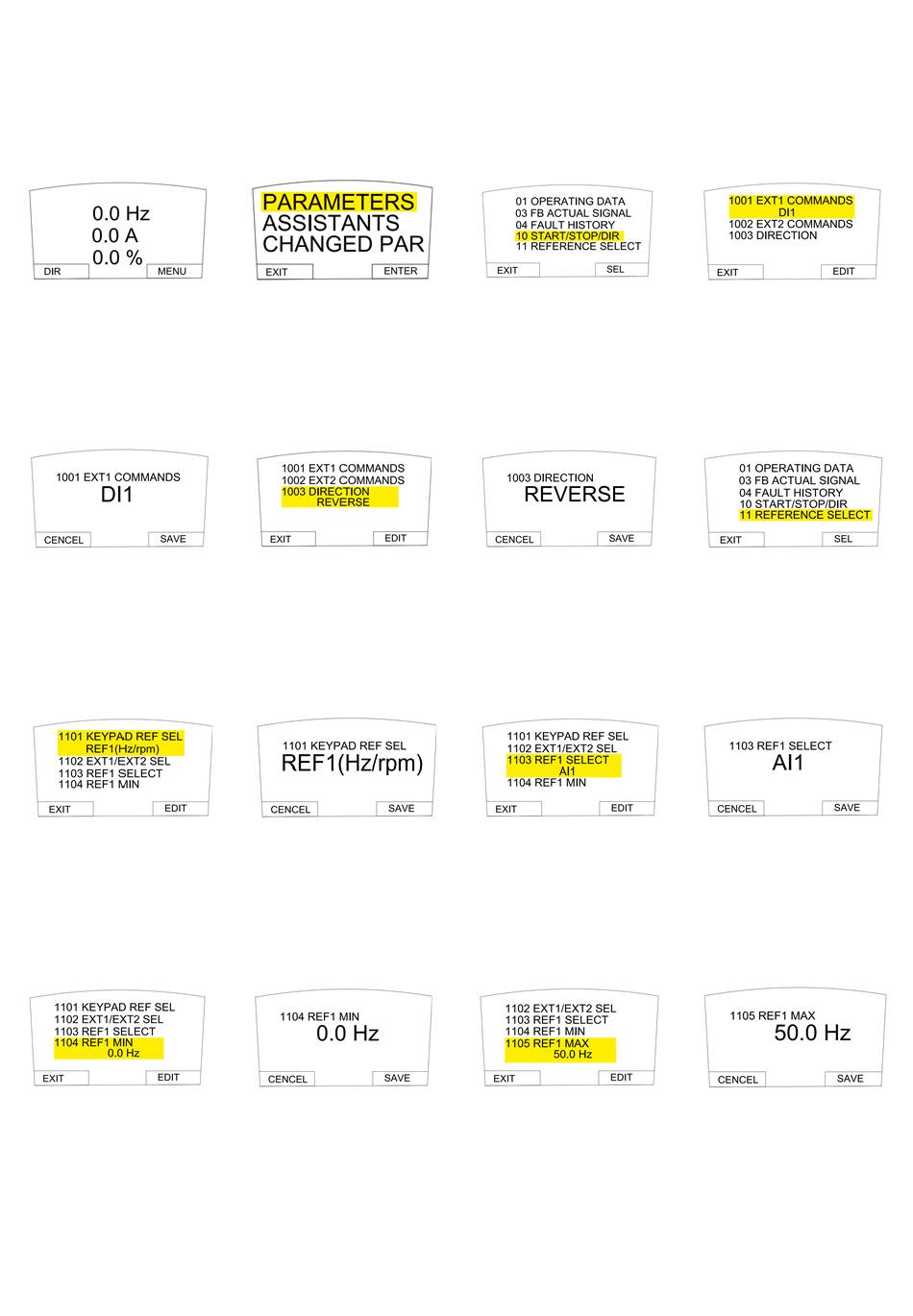

1. Press MENU to go to the main
menu
5. In a group and press EDIT to
change the parameter valve.
Press SAVE.
9. Select parameter 1101 In a
group and press EDIT to change
the parameter REF1(Hz/rpm).
13. Select parameter 1104 In a
group.
4
2. Select PARAMETERS with the
UP/DOWN keys and press ENTER
to go to the Parameters mode.
6. Select parameter 1003 In a
group and press EDIT to change
the parameter valve.
10. Press SAVE.
14. Press EDIT to change the param-
eter valve to suit site setting.
Press SAVE
3. Select parameter group 10 and
press SEL.
7. Repeat this step if forward
direction required. Press SAVE.
Press EXIT.
11. Select parameter 1103 In a
group and press EDIT to change
the parameter AI1.
15. Select parameter 1105 In a
group and press EDIT to change
the parameter valve 50.0 Hz.
4. Select parameter 1001
In a group and press EDIT to
change the parameter valve.
Press SAVE.
8. Select parameter group 11 and
press SEL.
12. Press SAVE.
16. Press SAVE. Press EXIT.
