Installation & Operating Manual
Nor-Ray-Vac

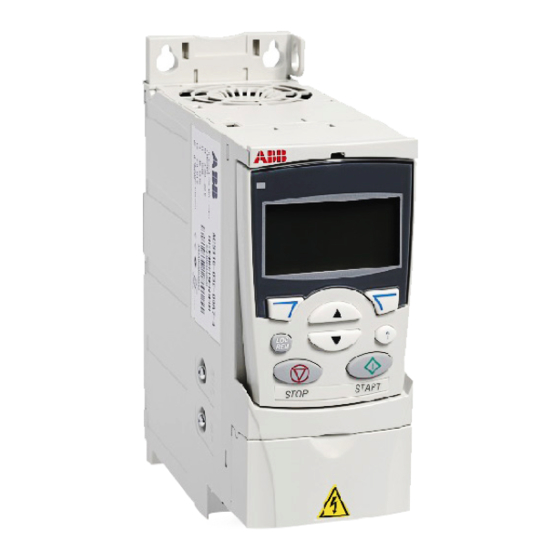

Modulating Inverter
Initial Set for ABB ACS310
Warnings
Nortek Global HVAC equipment must be installed and
maintained in accordance with the requirements of the
Codes of Practice or rules in force.
All external wiring must comply with the codes of
practice or rules in force in the country of installation.
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Manual Part No.
Reznor® is a registered trademark of Nortek Global HVAC, LLC.
D301181
ErP Lot 21
Seasonal Efficiency &
NOx compliant
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Reznor Nor-Ray-Vac
- Page 1 Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. ErP Lot 21 Manual Part No. D301181 Seasonal Efficiency & NOx compliant Reznor® is a registered trademark of Nortek Global HVAC, LLC.
- Page 2 IMPORTANT NOTICE TO INSTALLERS Installers should satisfy themselves that instructions thoroughly before installing sensory or mental capabilities or lack of the gas pipework installation is carried out or servicing this equipment. experience and knowledge, unless they in accordance with all current legislation, have been given supervision or instruction Codes of Practice and recommendations.
- Page 3 ABB ACS310 General information The use of an inverter on the Nor-Ray-Vac BH300 fan system allows the end vent suction to be adjusted by varying the fan speed. The description for adjusting the fan speed is given in the following section. Apart from this change the commissioning instructions described in the Nor-Ray-Vac technical manual should be followed.
- Page 4 Step by step instructions Turn power on to the control panel. Both power on, and system healthy indicator lamps should illuminate. 1. Press MENU to go to the main 2. Select PARAMETERS with the 3. Select parameter group 10 and 4.
- Page 5 17. Select parameter group 13 and 18. Select parameter 1301 In a 19. Press SAVE. 20. Select parameter 1302 In a press SEL. group and press EDIT to change group and press EDIT to change the parameter valve to suit the the parameter valve 100.0% site setting.
- Page 6 Notes .......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 7 Notes .......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 8 AFFIX AGENTS DETAILS HERE United Kingdom Tel: +44 (0) 1384 489 250 Fax: +44 (0) 1384 489 707 Email: reznorsales@nortek.com Registered in England No˚ 1390934 Web: www.reznor.eu/ Registered Office: The Colmore Building, 20 Colmore Circus Queensway, Birmingham, West Midlands, B4 6AT...
