Lex System SHARK Series Assembly Manual

Waterproof
Hide thumbs Also See for SHARK Series:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

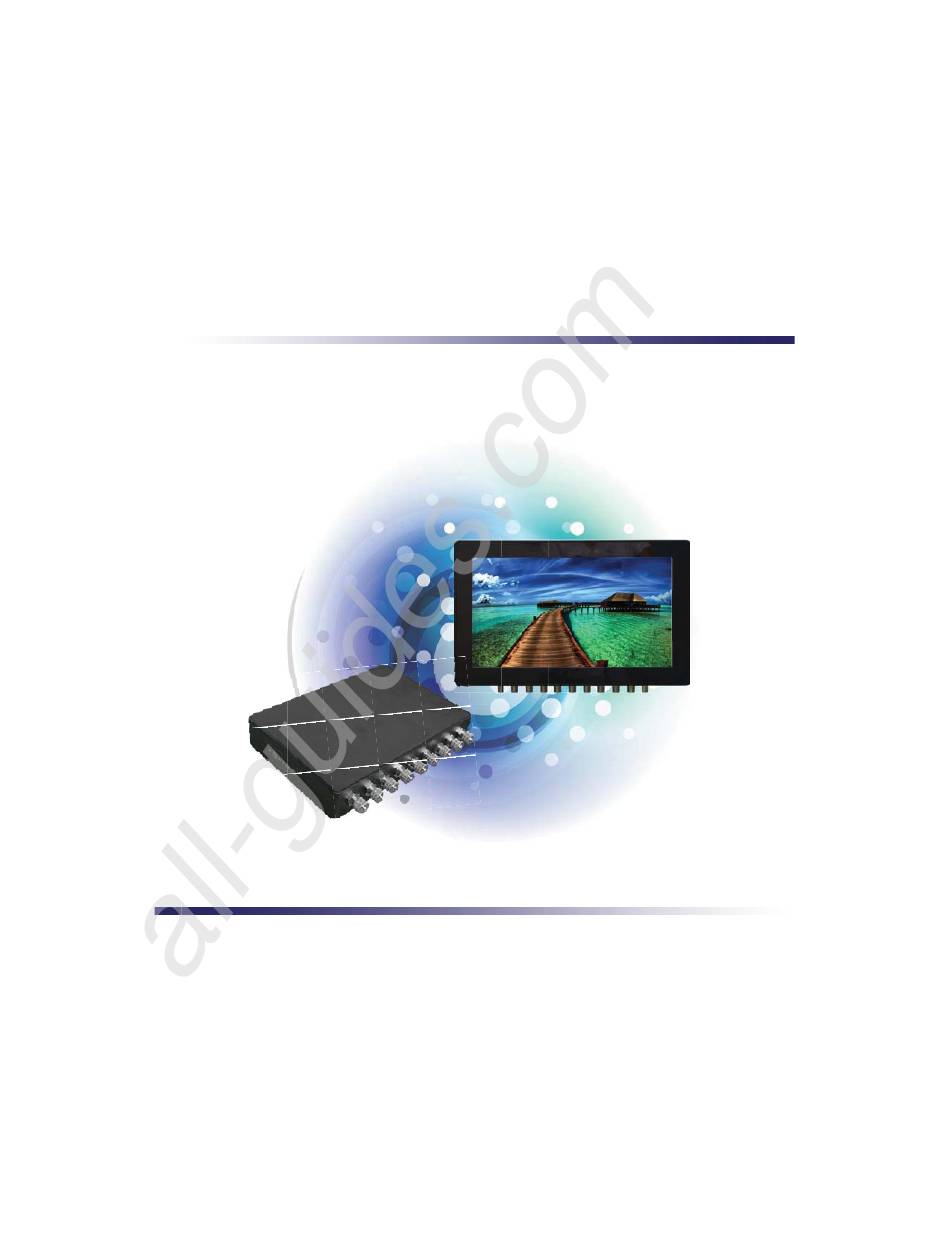

SHARK Waterproof
Assembly Guide
Panel PC
Box PC
6G0000-0000-0000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHARK Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lex System SHARK Series

Summary of Contents for Lex System SHARK Series

  • Page 1 All manuals and user guides at all-guides.com SHARK Waterproof Assembly Guide Panel PC Box PC 6G0000-0000-0000...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents WARNING ! SHARK Waterproof Assembly guide ........SHARK Waterproof BOX PC Exploded Drawing ....SHARK Waterproof Panel PC Exploded Drawing ....IP (International Protection) code- Levels of Protection ............Introduction of necessary tools ..........IP66 Packing list ...............

  • Page 3: Warning

    All manuals and user guides at all-guides.com WARNING ! 1. Please do not remove the caps of waterproof cables unless needed. 2. Waterproof cables must be fastened tightly on the connectors of system. 3. Waterproof cables must be examined by torque wrench, and the torgue must be more than or equal 5kgf-cm.

  • Page 4: Shark Waterproof Assembly Guide

    All manuals and user guides at all-guides.com SHARK Waterproof Assembly guide (Fig.1) (Fig.2) 1. Unscrew ten (M2.5*4) screws from the 2. Unscrew the(M2*6) screw from the screw bottom cover and then lift the cover out thread on motherboard. (Fig.2) of the system. (Fig.1) 45°...
  • Page 5 All manuals and user guides at all-guides.com (Fig.5) (Fig.6) 5. Fasten the HDD on HDD KIT with 6. Connect the SATA DATA cable four (M3*4) screws. (Fig.5) with HDD(Fig.6) (Fig.7) (Fig.8) 7. Connect the SATA Power cable with HDD. 8. Connect the SATA DATA cable (Fig.7) with motherboard.
  • Page 6 All manuals and user guides at all-guides.com (Fig.11) (Fig.12) 11. Attach the thermal pad on the HDD 12. Screw the bottom cover back to the and avoid the heat-dissipating holes at system with then (M2.5*4) screws. (Fig.12) the same time. (Fig.11) (Fig.13) (Fig.14) 13.

  • Page 7: Shark Waterproof Box Pc Exploded Drawing

    All manuals and user guides at all-guides.com SHARK Waterproof BOX PC Exploded Drawing 7" SHARK BOX PC Name Q'ty Name Q'ty Front Bezel Back Cover Key Pad Front Cover Waterproof Cable O-ring 2I Mainboard HDD brackrt...
  • Page 8 All manuals and user guides at all-guides.com SHARK Waterproof BOX PC Exploded Drawing 10.1" SHARK BOX PC Name Q'ty Name Q'ty SHARK 10.1"(WP),BOX,TOP M12 CABLE WP COVER,LF,AL 6063,Black,For 3I/2I SHARK 10.1,O-RING FOR FRONT 2.5" HDD BEZEL,L=795MM,Black SHARK 10.1"(WP),BOX,FRONT 2I Mainboard BEZEL,LF,AL 6063,Black SHARK 10.1"(WP),BOX,BOTTOM BATTERY 2S1P 3360mah...
  • Page 9 All manuals and user guides at all-guides.com SHARK Waterproof BOX PC Exploded Drawing 10.1" SHARK BOX PC Name Q'ty Name Q'ty SHARK 10.1"(WP),BOX,TOP STAR 10.4",HDD COVER,LF,AL 6063,Black,For 3I/2I RACKET,LF,SECC=1.0,MATERIAL SHARK 10.1,O-RING FOR FRONT M12 CABLE WP BEZEL,L=795MM,Black SHARK 10.1"(WP),BOX,FRONT 2.5" HDD BEZEL,LF,AL 6063,Black SHARK 10.1"(WP),BOX,BOTTOM 3I Mainboard...

  • Page 10: Shark Waterproof Panel Pc Exploded Drawing

    All manuals and user guides at all-guides.com SHARK Waterproof Panel PC Exploded Drawing 10.1" SHARK Panel PC Name Q'ty Name Q'ty 10.1" TOUCH 2I Mainboard SHARK 10.1,Washer for BATTERY 2S3P Touch,LF,t=1.2mm SHARK 10.1",FRONT BEZEL- BATTERY BRACKET WP,LF,AL 6063,Black 10.1" BOX PC,Power/Reset HDD BRACKET Function Key Pad,LF,PET,Black M12 CABLE WP...
  • Page 11 All manuals and user guides at all-guides.com SHARK Waterproof Panel PC Exploded Drawing 13.3" SHARK Panel PC Name Q'ty Name Q'ty 13.3" FPPC-WP, Front Bezel SPONGE TOP SIDE 13.3" FPPC-WP, Bottom Cover SPONGE BOTTOM SIDE SHARK 13.3" Waterproof, O-RING 2I Mainboard SHARK 13.3"...
  • Page 12 All manuals and user guides at all-guides.com SHARK Waterproof Panel PC Exploded Drawing 13.3" SHARK Panel PC Name Q'ty Name Q'ty 13.3" FPPC-WP, Front Bezel 13.3_PANEL-CHASSIS_W P 13.3" FPPC-WP, Bottom Cover SPONGE TOP SIDE SHARK 13.3" Waterproof, O-RING SPONGE BOTTOM SIDE SHARK 13.3"...

  • Page 13: Ip (International Protection)

    All manuals and user guides at all-guides.com code- Levels of Protection (International Protection) IP XX First digit "X", Protection against solids. Protection against the contact of external solid bodies and the access to dangerous par Dimensions of the Description of test condition Image Level test material...
  • Page 14 All manuals and user guides at all-guides.com Second digit “X”, protection against liquids. Protection of the equipment inside the enclosure against harmful ingress of water. Protected Description of Description of Image Level against protection test condition — — No protection Dripping water .
  • Page 15 All manuals and user guides at all-guides.com Protected Description of Description of Image Level against protection test condition . Test duration: Water projected by a nozzle at least 3 minutes (6.3mm) against enclosure . Water volume: Water jets from any direction shall have 12.5 litres per minute no harmful effects.

  • Page 16: Introduction Of Necessary Tools

    All manuals and user guides at all-guides.com Introduction of necessary tools Adjustable ratcheting wrench (No. 21) Purpose If the waterproof connectors are damaged, oxidized or obsoleted, vse it to unfasten them. Torque wrench Purpose To examine if the torque of each waterproof connectors, are more than 5kgf-cm.

  • Page 17: Ip66 Packing List

    All manuals and user guides at all-guides.com IP66 Packing list Material Code Description Detail Specifi cation by order Manual LF,M/B 6G8006-2349-0100 DVD-R 6G9053-0001-0100 Touch Pen LF,#9011 6G6001-2202-0100 SATA DATA Cable (Red,90°) LF,L=15cm 6G6003-1006-0100 SATA Power Cable LF,L=15cm,SATA to 2.0/1*4 Z0028-0004 Screw Package S3*4 SIO NI*10 6G7800-6042-0100 Thermal Pad...

  • Page 18: Ip67 Packing List

    All manuals and user guides at all-guides.com IP67 Packing list Material Code Description Detail Specifi cation by order Manual LF,M/B 6G8006-2349-0100 DVD-R 6G9053-0001-0100 Touch Pen LF,#9011 6G6005-3901-0100 Power Cord LF,King Cord 60W Power 6G5212-0603-0200 LF,L Type(B043),FSP Adapter,12V/5A,2.5Ø...

  • Page 19: Difference Of Waterproof Cables

    All manuals and user guides at all-guides.com Difference of Waterproof cables 4 PIN POWER 8 PIN 12 PIN...

  • Page 20: I/O Connector Pinouts

    All manuals and user guides at all-guides.com...
  • Page 21 All manuals and user guides at all-guides.com...
  • Page 22 All manuals and user guides at all-guides.com...
