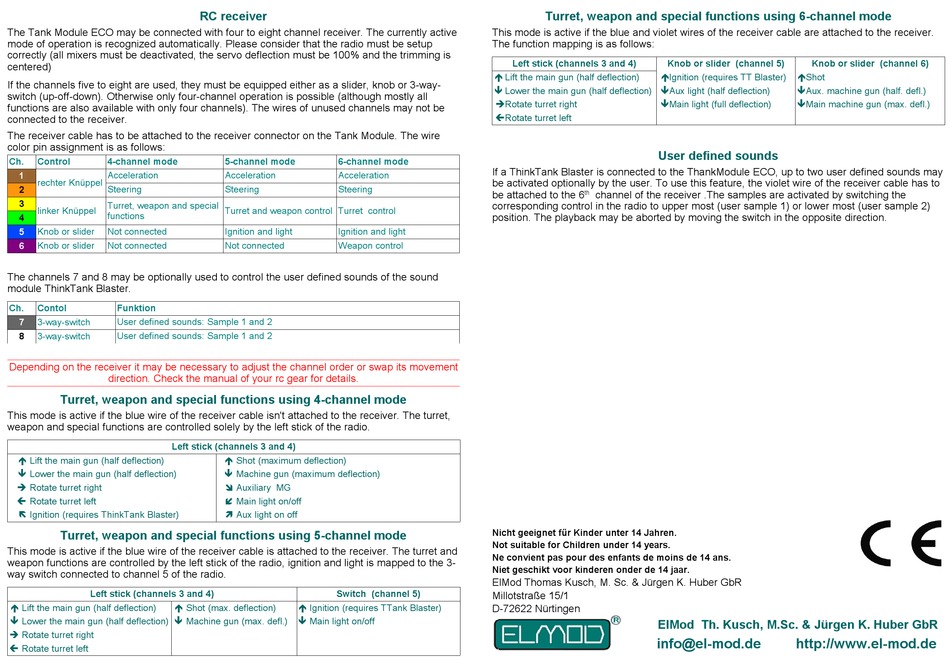

ElMod ThinkTank Tank Module PRO Instructions For Assembly And Handling page 2

The Tank Module ECO may be connected with four to eight channel receiver. The currently active
mode of operation is recognized automatically. Please consider that the radio must be setup
correctly (all mixers must be deactivated, the servo deflection must be 100% and the trimming is
centered)
If the channels five to eight are used, they must be equipped either as a slider, knob or 3-way-
switch (up-off-down). Otherwise only four-channel operation is possible (although mostly all
functions are also available with only four channels). The wires of unused channels may not be
connected to the receiver.
The receiver cable has to be attached to the receiver connector on the Tank Module. The wire
color pin assignment is as follows:
Ch. Control 4-channel mode
1 Acceleration
rechter Knüppel
2 Steering
3
Turret, weapon and special
linker Knüppel
functions
4
5 Knob or slider Not connected
6 Knob or slider Not connected
The channels 7 and 8 may be optionally used to control the user defined sounds of the sound
module ThinkTank Blaster.
Ch. Contol Funktion
User defined sounds: Sample 1 and 2
7 3-way-switch
User defined sounds: Sample 1 and 2
8 3-way-switch
Depending on the receiver it may be necessary to adjust the channel order or swap its movement
direction. Check the manual of your rc gear for details.
Turret, weapon and special functions using 4-channel mode
This mode is active if the blue wire of the receiver cable isn't attached to the receiver. The turret,
weapon and special functions are controlled solely by the left stick of the radio.
Left stick (channels 3 and 4)
é Lift the main gun (half deflection)
ê Lower the main gun (half deflection)
è Rotate turret right
ç Rotate turret left
 Ignition (requires ThinkTank Blaster)
Turret, weapon and special functions using 5-channel mode
This mode is active if the blue wire of the receiver cable is attached to the receiver. The turret and
weapon functions are controlled by the left stick of the radio, ignition and light is mapped to the 3-
way switch connected to channel 5 of the radio.
Left stick (channels 3 and 4)
é Lift the main gun (half deflection) é Shot (max. deflection)
ê Lower the main gun (half deflection) ê Machine gun (max. defl.)
è Rotate turret right
ç Rotate turret left
RC receiver
5-channel mode 6-channel mode
Acceleration Acceleration
Steering Steering
Turret and weapon control Turret control
Ignition and light Ignition and light
Not connected Weapon control
é Shot (maximum deflection)
ê Machine gun (maximum deflection)
 Auxiliary MG
 Main light on/off
 Aux light on off
Switch (channel 5)
é Ignition (requires TTank Blaster)
ê Main light on/off
Turret, weapon and special functions using 6-channel mode
This mode is active if the blue and violet wires of the receiver cable are attached to the receiver.
The function mapping is as follows:
Left stick (channels 3 and 4) Knob or slider (channel 5)
é Lift the main gun (half deflection) éIgnition (requires TT Blaster)
ê Lower the main gun (half deflection) êAux light (half deflection)
èRotate turret right êMain light (full deflection)
çRotate turret left
User defined sounds
If a ThinkTank Blaster is connected to the ThankModule ECO, up to two user defined sounds may
be activated optionally by the user. To use this feature, the violet wire of the receiver cable has to
be attached to the 6 th channel of the receiver .The samples are activated by switching the
corresponding control in the radio to upper most (user sample 1) or lower most (user sample 2)
position. The playback may be aborted by moving the switch in the opposite direction.
Nicht geeignet für Kinder unter 14 Jahren.
Not suitable for Children under 14 years.
Ne convient pas pour des enfants de moins de 14 ans.
Niet geschikt voor kinderen onder de 14 jaar.
ElMod Thomas Kusch, M. Sc. & Jürgen K. Huber GbR
Millotstraße 15/1
D-72622 Nürtingen
ElMod Th. Kusch, M.Sc. & Jürgen K. Huber GbR
info@el-mod.de
Knob or slider (channel 6)
éShot
êAux. machine gun (half. defl.)
êMain machine gun (max. defl.)
