Read these instructions carefully before proceeding with the installation! Liability for damage due to improper
installation or non-observance of these instructions is expressly excluded.
Scope of delivery
ElMod FX Expander
•
• 6 cables for connection of additional light sources

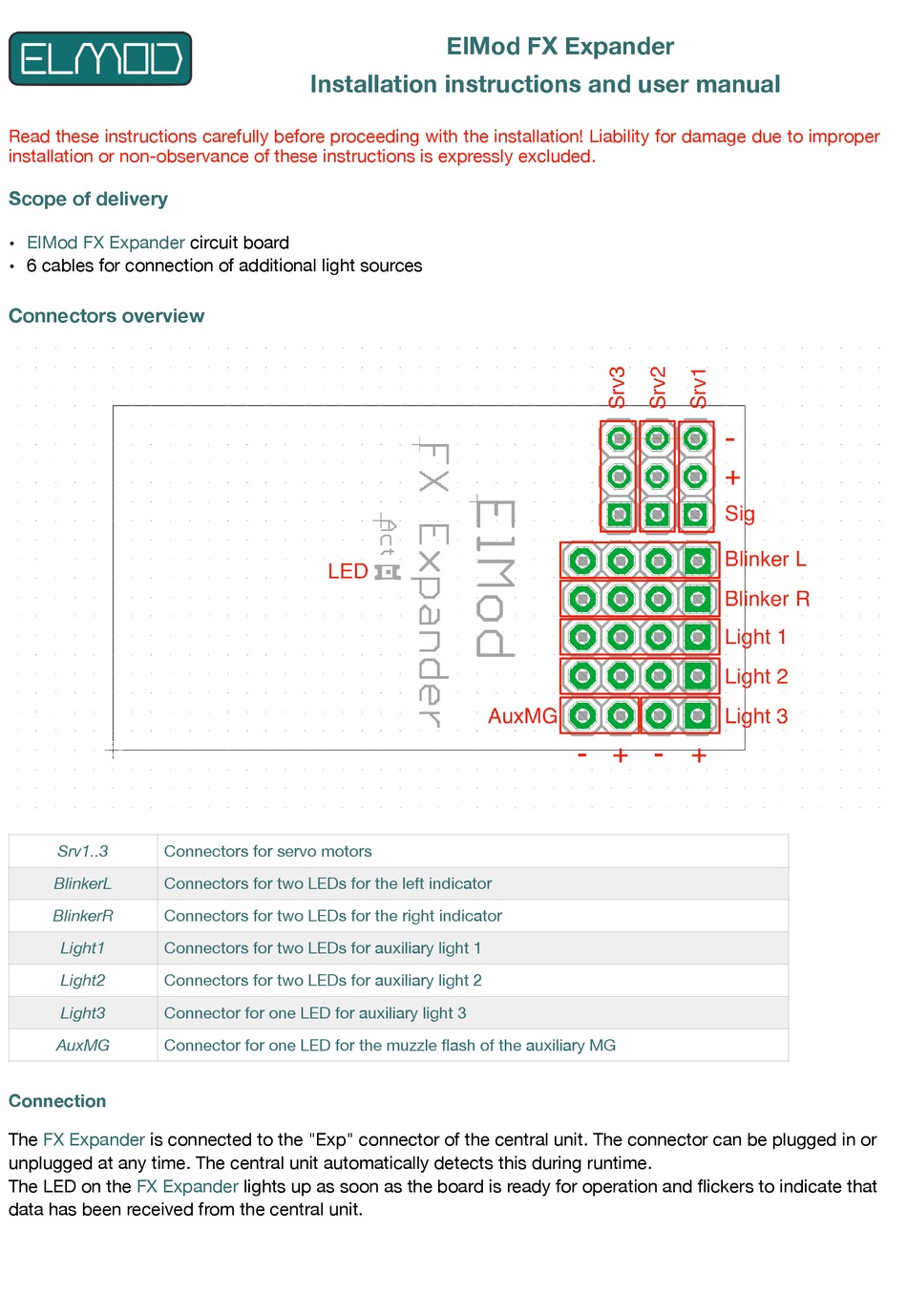

Connectors overview
Srv1..3
Connectors for servo motors
BlinkerL
Connectors for two LEDs for the left indicator
BlinkerR
Connectors for two LEDs for the right indicator
Light1
Connectors for two LEDs for auxiliary light 1
Light2
Connectors for two LEDs for auxiliary light 2
Light3
Connector for one LED for auxiliary light 3
AuxMG
Connector for one LED for the muzzle flash of the auxiliary MG
Connection
The
FX Expander
is connected to the "Exp" connector of the central unit. The connector can be plugged in or
unplugged at any time. The central unit automatically detects this during runtime.
The LED on the
FX Expander
data has been received from the central unit.
Installation instructions and user manual
circuit board
lights up as soon as the board is ready for operation and flickers to indicate that
ElMod FX Expander
Advertisement
Table of Contents
Related Manuals for ElMod FX Expander
Summary of Contents for ElMod FX Expander
- Page 1 ElMod FX Expander Installation instructions and user manual Read these instructions carefully before proceeding with the installation! Liability for damage due to improper installation or non-observance of these instructions is expressly excluded. Scope of delivery ElMod FX Expander circuit board •...
- Page 2 • White LEDs are connected in parallel in pairs The light connections on the FX Expander are not dimmable. If the brightness of the LEDs is too intense for the intended use, a series resistor can be connected in series with the LEDs. Usually the resistor values are...
- Page 3 Turn signal control • Assign the turn signal functions ("Blinker left", "Blinker right" and "Warning lights") to the control elements of your radio system using the ElMod App. • To activate the right turn signal, select the function "Blinker right".
- Page 4 Nicht geeignet für Kinder unter 14 Jahren. Not suitable for Children under 14 years. Ne convient pas pour des enfants de moins de 14 ans. Niet geschikt voor kinderen onder de 14 jaar. ElMod Thomas Kusch Seebuckweg 9 D-78054 Villingen-Schwenningen, Germany ElMod Thomas Kusch info@elmod.eu...
