DHP Eden 4136429 Manual

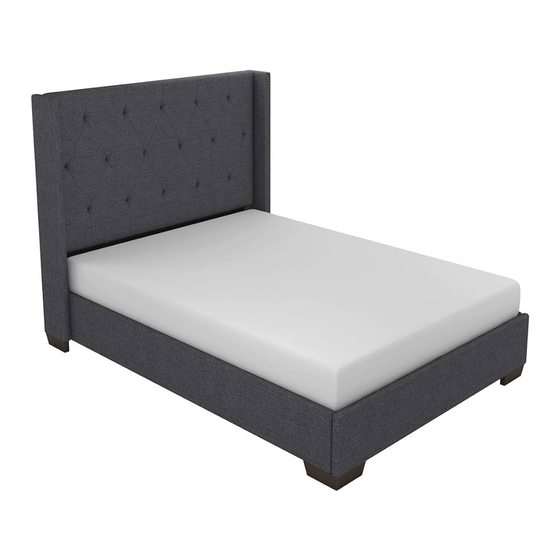

Wingback upholstered bed - full
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
TM
Weight Limit: 450 Lb / 204 Kg
S.D. - 2017.5.27
Wingback Upholstered Bed - Full
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4136429
Eden
Grey Linen
Lot Number
B34413642900 - 241643 - XL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eden 4136429 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHP Eden 4136429

Summary of Contents for DHP Eden 4136429

  • Page 1 Wingback Upholstered Bed - Full Grey Linen Weight Limit: 450 Lb / 204 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective 2 (however it is always better parts and assembly labor is not included.
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/support-home This item is packed in 2 boxes! All parts listed on this page are in Box A. If Box B is missing please contact your Retailer. Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 5 Parts Replacement Parts, visit www.dhpfurniture.com/eng/support-home This item is packed in 2 boxes! All parts listed on this page are in Box B. If Box A is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Headboard Bottom Sideboard Footboard...

  • Page 6: Hardware Pack

    Hardware Pack Hardware Pack #: T4136429-00 1/4" X 25/32" X 44 1/4" X 1 37/64" Hex Key X 12 5/16" X 1 31/32" X 10 Washer Socket Wrench Please do not completely tighten all the hardware, until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions.
  • Page 7 Step 1 Attach V x 2 to D x 2 with X 10...
  • Page 8 Step 2 2.1 Attach T x 2 to D x 2 with 2.2 Attach S x 2 to D x 2 with X 12...
  • Page 9 Step 3 Attach H x 2 to K with...
  • Page 10 Step 4 Attach A to B with...
  • Page 11 Step 5 Hand tighten into W & X as far as possible.
  • Page 12 Step 6 Attach W & X to the back of A & B with...
  • Page 13 Step 7 Stick C to A & B with the velcro.
  • Page 14 Step 8 Screw into B & E and leave half of the bolts exposed. X 12...
  • Page 15 Step 9 Hang D x 2 on B & E as illustrated below, don't completely tighten untill the STEP 12 is complete.
  • Page 16 Step 10 Attach I to B, D & E with X 16...
  • Page 17 Step 11 Push into the hole of U x 4, then attach U x 4 to I x 4 with...
  • Page 18 Step 12 Attach K to B & E with , then properly tighten all the bolts...
  • Page 19 Step 13 13.1 Insert J into L; 13.2 Then press L into V; 13.3 Insert both J into M, then press M into K as shown. Repeat the same procedure going backwards for every row of slats.

  • Page 20: Helpful Hints

    Helpful Hints Helpful Hints Weight Limit: 450 Lb / 204 Kg people lifting and carrying the unit to it's new location. reassembled to move. item. They are illustred on this page and available for replacement. WARNINGS: For safety reasons and to prevent injuries: This bed is not intended for use by childen under 4 years old.
  • Page 21 | www.pinterest.com/dhpfurniture para tener acceso a promociones de DHP. producto o simplemente ordenar otras partes, dirijase a: Gracias por comprar un producto DHP. Esperamos que este le proporcione muchos cs@dhpfurniture.com 1-800-267-1739 / Lunes - Viernes / 9:00 am - 5:00 pm (hora del este)
  • Page 22 Lea antes de comenzar a ensamblar Partes Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Todo se incluye en 2 caja grande! (sin embargo es recomendable contar con ayuda adicional). Tiempo estimado de Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para ensamble es 2 horas.
  • Page 23 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para 2.1 Una T x 2 con D x 2 con Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de 2.2 Una S x 2 con D x 2 con mudanza.

  • Page 24: Garantie

    Scannez le code QR ou visitez-nous au www.dhpfurniture.com/eng/registrer au Canada. Suivez-nous sur: www.facebook.com/DorelHomeProducts www.twitter.com/DHPfurniture Contact www.pinterest.com/dhpfurniture les concours et les promotions de DHP. cs@dhpfurniture.com 1-800-267-1739 / Lundi - Vendredi / 9:00 am - 5:00 pm (Heure de l'Est) Remarque: concours.

  • Page 25: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage www.dhpfurniture/fre/support-home plancher et le produit. 2 (cependant il vaut l'assemblage. est de 2 heures. lors de l'assemblage. Ailes Gauche: T948800 Ailes Droite: T948810 Pied de Lit: T948790 Support Gauche: T393050 commercial. Support Droite: T393060 Pied Central: T948500 enfants.

  • Page 26: Conseils Utiles

    Instructions Limite de Poids: 450 Lb / 204 Kg Attacher V D x 2 avec Conseils utiles 2.1 Attacher T D x 2 avec personnes pour soulever et transporter le mobilier vers son nouvel emplacement. 2.2 Attacher S D x 2 avec Attacher H K avec ou abrasifs.
