Rev 08-2021

An Operator's Manual was shipped with the equipment in the

Manual Canister. This Operator's Manual is an integral part of

the safe operation of this machine and must be maintained

with the unit at all times. READ, UNDERSTAND, and FOLLOW

the Safety and Operation Instructions contained in this manual

before operating the equipment. If the Operator's Manual is

not with the equipment, contact your dealer or Servis-Rhino

(800-446-5158) to obtain a Free copy before operating the

equipment.

1020 S. Sangamon Ave.

Gibson City, IL 60936

800-446-5158

Email: parts@servis-rhino.com

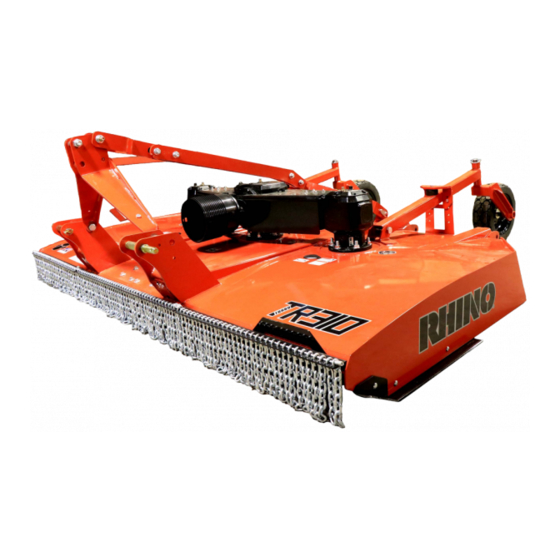

TR310LT/PT

PART'S MANUAL

ROTARY CUTTER

Part No. 00793562P

Table of Contents

Need help?

Do you have a question about the TR310LT and is the answer not in the manual?

Questions and answers

Summary of Contents for RHINO TR310LT

Page 1 READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. If the Operator's Manual is not with the equipment, contact your dealer or Servis-Rhino (800-446-5158) to obtain a Free copy before operating the equipment.
Page 2 TO THE OWNER/OPERATOR/DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Page 3 PARTS SECTION Parts Section – 1...
Page 4 Part Number when ordering Replacement Safety Decals. For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death.
Page 5: Table Of Contents
SHIELD ASSEMBLY - OUTBOARD................................ 35 SKID SHOES....................................... 36 SLIPCLUTCH - 00793537 ................................... 37 TAILWHEEL ASSEMBLY - LIFT TYPE..............................38 TIRE OPTIONS......................................39 TONGUE ASSEMBLY - PULL TYPE............................... 41 TR310 DECALS ................................................43 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -3...
Page 6: Aframe Components
HHCS 3/4 NC X 7" PL GR8 03200782 HEXB 1 NC 5 PL5 7B16820 HEXB 1NC X 2-1/2 PL 00748823 HHCS 1/2-13 UNC X 1-1/2 GR.5 PL 5JRC1680 NUT TOPLOCK 1 329915H8C NUT, HEX FLANGE-SPIRALOCK 3/4-10 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -4...
Page 7 WDMT, TR 10` REAR A-FRAME 00793526 WDMT, REAR A-FRAME PIVOT 00001800 LOCKNUT TLM 1/2 NC PLC 02776600 HHCS 1/2-13 NC X 1 1/4 GR8 PL 02971324 NUT LOCK FLG 1/2-13 NC PL TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -5...
Page 8: Axle Assembly - Pull Type
00790205 PUCK, RUBBER SUSPENSION 00793434 DEFLECTOR, TR 10` RUBBER TAIL 00793435 BRACKET, TAIL DEFLECTOR 000644 CARB-3/8 NCK 1-1/4 PL5 4528 NUT, HEX LOCK 3/8-16 FLG WHIZ 00793282 WDMT, AXLE PIVOT PIN TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -5...
Page 9 PIN, CLEVIS, 1.00 X 3.25 420011 PIN, CLEVIS 1 X 5 PL 02822500 FLATWASHER 1 PL STD 00606000 PIN, COTTER 3/16 X 2" 00793248 WDMT, SUSP AXLE CLAMP 00793250 WDMT, AXLE ARM PIVOT TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -6...
Page 10: Blade Carrier
BLADE, FAN CW, 4X20-1/2 CTR-TIP 00792899 BLADE, FAN CCW, 4X20-1/2 CTR-TIP (NOT SHOWN) 00791094 HUB, EZ80 FLANGED ADAPTOR B571044 BLADE BOLT KIT/NUTS 571045 SHOULDER BOLT WASHER 00756077 WASHER,5/8 HARDENED 00008300 HHCS 5/8-11NC X 1-3/4" PL5 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -7...
Page 11: Canister Assembly
CANISTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 00776031 CANISTER, PARTS MANUAL 00780878 RIVET, 3/16 POP X 15/32" G.R. TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -8...
Page 12: Chainguard Assembly
WASHER, LOCK 1/2 GD8 YDP 00748823 HHCS 1/2-13 UNC X 1-1/2 GR.5 PL 00793435 BRACKET, TAIL DEFLECTOR 00793434 DEFLECTOR, TR 10` RUBBER TAIL 000644 CARB-3/8 NCK 1-1/4 PL5 4528 NUT, LOCK 3/8-16 FLG WHIZ TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -9...
Page 13: Cylinder Assembly - Pull Type
TIE ROD NUT 5JRC12160 PISTON NUT 1917132 PORT PLUG 2417154 BREATHER 651132 HOSE (NOT SHOWN) 94514 ELBOW (NOT SHOWN) 0652141311 ADAPTER (NOT SHOWN) 8354 PIN (NOT SHOWN) 00606000 COTTER PIN (NOT SHOWN) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -11...
Page 14: Driveline - 00793198 1000Rpm Cat 4 1-3/8 20 X 60.12 (Lift Type)
BEARING SUPPORT RING SC25 00759217 SCREW 1/2 LG #8 PAN 00756005 DECAL,ROTATING DRIVELINE 00756004 DECAL,DANGER - GUARD MISSING 8974 SUPPORT BEARING WAL 00771813 GREASE FTG, STGHT 00767954 YOKE.Q.D.KIT - PLASTIC 00793539 KIT,COMPLETE GUARD TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -12...
Page 15: Driveline - 00777983 (Side Drive)
DISC,RUBBER - 7" OD 00766475A WASHER,BEADED D/L COUPLER 00771287 BUSHING,RUBBER DISK 00762216A D/L SPIDER 1-3/4 20 SPL. 00765902 HHCS M16-P2.0 X 90MM PL8.8 00765962 NUT MET TLE 16MM-P2.0 PL 00764386 GREASE FITTING,8MMX1 STRAIGHT TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -13...
Page 16: Driveline - 00793192 Jackshaft (Pull Type)
00793192 JACKSHAFT (PULL TYPE) 00756934 SPRING PIN, 10X80 00775310 INBOARD YOKE S5 00793590 STUB + PROF ILE W .A. 00756004 DECAL INNER-IN ITEM 3 00793536 CROSS+ BRG KIT 00793537 FRICTION CLUTCH TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -14...
Page 17: Driveline - 00793197 540Rpm Cat4, 1-3/8-6 X 1-3/4-20 X 59.65 (Lift Type)
BEARING SUPPORT RING SC25 00759217 SCREW 1/2 LG #8 PAN 00756005 DECAL,ROTATING DRIVELINE 00756004 DECAL,DANGER - GUARD MISSING 8974 SUPPORT BEARING WAL 00771813 GREASE FTG, STGHT 00767954 YOKE.Q.D.KIT - PLASTIC 00793539 KIT,COMPLETE GUARD TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -15...
Page 18: Driveline - 00793199 1000Rpm Cat 4 1-3/4 20 Spl (Lift Type)
00773505 MANUAL, DRIVELINE SAFETY - NOT SHOWN 00793539 KIT, COMPLETE GUARD - NOT SHOWN Q.D. COLLAR KIT W/3 BALLS (IN ITEM #1) 00759556 LOCK ASY CC YOKE (IN ITEM #8) 00774208 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -16...
Page 19: Driveline - Main Cv 10000Rpm Cat 5 1-3/4 -20 Spline Pull Type 00791883Sp
YOKE,D/L 1-3/4 - 20 SPL. - IC 00791894 ASSY, CV GUARD AND BEARING 8384 SPRING PIN 10MM X 90MM 00791904 KIT, COMPLETE GUARD 00791896 KIT, Q.D. COLLAR 1-3/8 SPLINE 00771813 GREASE FTG, STGHT (NOT SHOWN) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -17...
Page 20: Driveline - Main Cv 1000Rpm Cat 5 1-3/8 21 Spline Pull Type 00791882Sp
YOKE,D/L 1-3/4 - 20 SPL. - IC 00791894 ASSY, CV GUARD AND BEARING 8384 SPRING PIN 10MM X 90MM 00791904 KIT, COMPLETE GUARD 00791896 KIT, Q.D. COLLAR 1-3/8 SPLINE 00771813 GREASE FTG, STGHT (NOT SHOWN) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -19...
Page 21: Driveline - Main Cv 540Rpm Cat 5 1-3/8 6 Spline Pull Type 00791881Sp
YOKE,D/L 1-3/4 - 20 SPL. - IC 00791894 ASSY, CV GUARD AND BEARING 8384 SPRING PIN 10MM X 90MM 00791895 KIT, COMPLETE GUARD (NOT SHOWN) 00791896 KIT,Q.D. COLLAR - 1-3/8 SPLINE 00771813 GREASE FTG, STGHT (NOT SHOWN) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -21...
Page 22 GEARBOX ASSEMBLY - 00790700 1:1.00A 540RPM (OUTBOARD) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -23...
Page 23: Gearbox Assembly - 00790700 1:1.00A 540Rpm (Outboard)
DIPSTICK,OIL - EZ160 W/ SEAL 00790732 HEXB 3/4 NCX 3 PL5 (MOUNTING HARDWARE - NOT SHOWN) 00007800 WASHER, 3/4" HARDENED(MOUNTING HARDWARE - NOT SHOWN) 5312316 NUT, HEX FLANGE-SPIRALOCK 3/4-10(MOUNTING HARDWARE - NOT SHOWN) 329915H8C TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -24...
Page 24 GEARBOX ASSEMBLY - 00790705 1:1.22A 1000RPM (OUTBOARD) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -25...
Page 25: Gearbox Assembly - 00790705 1:1.22A 1000Rpm (Outboard)
00790732 HEXB 3/4 NCX 3 PL5 (MOUNTING HARDWARE - NOT SHOWN) 00007800 WASHER, 3/4" HARDENED (MOUNTING HARDWARE - NOT SHOWN) 5312316 NUT, HEX FLANGE-SPIRALOCK 3/4-10 (MOUNTING HARDWARE - NOT SHOWN) 329915H8C TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -26...
Page 27: Gearbox Assembly - 50075292 1:1.85 (540Rpm Divider)
50077020 HEXB 3/4 NC 3 PL5 (MOUNTING HARDWARE - NOT SHOWN) 00007800 UT,HEX SPIRALK FLG-3/4-10 PL8 (MOUNTING HARDWARE - NOT SHOWN) 329915H8C WASHER, HARDENED 3/4" (MOUNTING HARDWARE - NOT SHOWN) 5312316 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -28...
Page 29: Gearbox Assembly - 50075293 1:0.82 (1000Rpm Divider)
HOUSING - NOT AVAILABLE 00007800 HEXB 3/4 NC 3 PL5 (MOUNTING HARDWARE - NOT SHOWN) 329915H8C UT,HEX SPIRALK FLG-3/4-10 PL8 (MOUNTING HARDWARE - NOT SHOWN) 5312316 WASHER, HARDENED 3/4" (MOUNTING HARDWARE - NOT SHOWN) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -30...
Page 30: Hub & Spindle Assembly - 00790220 (Lift Type)
00750614 NUT, 1/2-20NF 90° CONE LUG PL (5) 00790292 CAP, HUB (1) 0538400 DRIVE STUD, 1/2-20X1-7/8 (5) 00764375 HHCS ½ NC 3-1/4 PL5 (1) 00001800 LOCKNUT, TLM ½ NC PLC (1) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -31...
Page 31: Level Rod Assembly - 00793407 Pull Type
WDMT, TR 10` FRONT LEVEL ROD 00778163 WDMT,ROD,LEVEL,SHORT 00778159 NUT,ADJUSTING,9" 00778160 NUT,HEX JAM 7/8-9 UNC LH PLT 15B1200 WASHER 3/4 P SAE 651102 PIN, DRILLED 00755153 PIN,COTTER 3/16 X 1-1/2 PLATED TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -32...
Page 32: Shield Assembly - Center Lift Type
FLATWASHER 5/16 PL (NOT SHOWN - GBOX MNTNG HARDWARE)) 00011700 HIGH ALLOY, L/W 5/16 YZ KG (NOT SHOWN - GBOX MNTNG HARDWARE) 10119000 HEXB 5/16 X 1 NC GR5 (NOT SHOWN - GBOX MNTNG HARDWARE) TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -33...
Page 33: Shield Assembly - Center Pull Type
HHCS 1/2-13 UNC X 1-1/2 GR.5 PL 00002700 FLATWASHER 1/2 PL STD 00791441 BALL STUD, 10MM 00791353 GAS SPRING 00750940 NUT, TOPLOCK 5/16 NC PLB 10119000 HEXB 5/16 X 1 NC GR5 00023500 FLATWASHER, 5/16 PL TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -34...
Page 34: Shield Assembly - Outboard
FLATWASHER 3/8 PL STD 40800-4 CARR BOLT 3/8-16 X 3/4 PL5 00791651 HEXB SER FLG M8-20MM 1.25 P 10.9 00007800 HEXB 3/4 NCX 3 PL5 5312316 WASHER, 3/4" HARDENED 329915H8C NUT, HEX FLANGE-SPIRALOCK 3/4-10 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -35...
Page 35: Skid Shoes
SKID SHOES ITEM PART NO. QTY. DESCRIPTION 00792558 SHOE, LONG FORMED SKID-LEFT 00792559 SHOE, LONG FORMED RIGHT (NOT SHOWN) 000644 CARB-3/8 NCK 1-1/4 PL5 4528 NUT, HEX LOCK 3/8-16 FLG WHIZ TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -36...
Page 36: Slipclutch - 00793537
ITEM PART NO. QTY. DESCRIPTION 00793537 COMPLETE SLIPCLUTCH 00772648 LOCKNUT-ML2 02971611 BOLT-ML2 X 80 00774208 TAPERED LOCKING PIN 00786349 BELLEVILLE SPRING 00754202 FRICTION DISC 00775335 DRIVE PLATE 00779365 DRIVE PLATE 00779351 00793588 FLANGE YOKE TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -37...
Page 37: Tailwheel Assembly - Lift Type
HHCS 1/2 NC 1-3/4 PL8 00002700 FLATWASHER 1/2 PL STD 03200782 HEXB 1 NC 5 PL5 5JRC1680 NUT TOPLOCK 1 15B2400 FLATWASHER,SAE 1-1/2 NAR-PLT 00758899 PIN COTTER 3/8X2-1/2 PL EXTEND 00790304 RUBBER BUMPER TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -38...
Page 38: Tire Options
TIRE OPTIONS ITEM PART NO. QTY. DESCRIPTION 00025200SP LAMINATED TIRE AND WHEEL 6"X9"X20.75" 00793165SP RHINO TRAX FOAM FILLED 7"X12"X20.5" TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -39...
Page 39 BLANK INTENTIONALLY...
Page 40: Tongue Assembly - Pull Type
TONGUE ASSEMBLY - PULL TYPE TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -41...
Page 41 HHCS 1/2-13 UNC X 1-1/2 GR.5 PL 00793284 WDMT, TR TONGUE PIN 00001800 LOCKNUT TLM 1/2 NC PLC 00793304 WDMT, HITCH LEVELING LUG 00002700 FLATWASHER 1/2 PL STD 00748823 HHCS 1/2-13UNC 1-1/2 GR.5 PL PIN,COTTER 3/16X2 00606000 TR310LT TR310PT ©2021 Alamo Group Inc. Parts Section -42...
Page 43 00793551 RHINO NAME 00793549 TR310 MODEL 1458392 RED REFLECTORS 1458393 AMBER REFLECTORS 00792312 RHINO NAME 00792179 RHINO - RED/WHITE/BLUE USA FLAG 00792180 CCW BLADE ROTATION D137 CW BLADE ROTATION D138 BLADE ATTACHMENT FAILURE D534 GEARBOX WARRANTY 00793532 D/L SHIELD MISSING. DO NOT OPERATE...
Page 45 WARRANTY 1. LIMITED WARRANTIES 1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
Page 46 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety requirements of tractor operators: REQUIRED OF THE OWNER:...
Page 47 TR310LT/PT P/N 00793562P Printed U.S.A.
