M-system R7L-EA8 Instruction Manual page 2

TERMINAL CONNECTIONS
Connect the unit as in the diagram below.

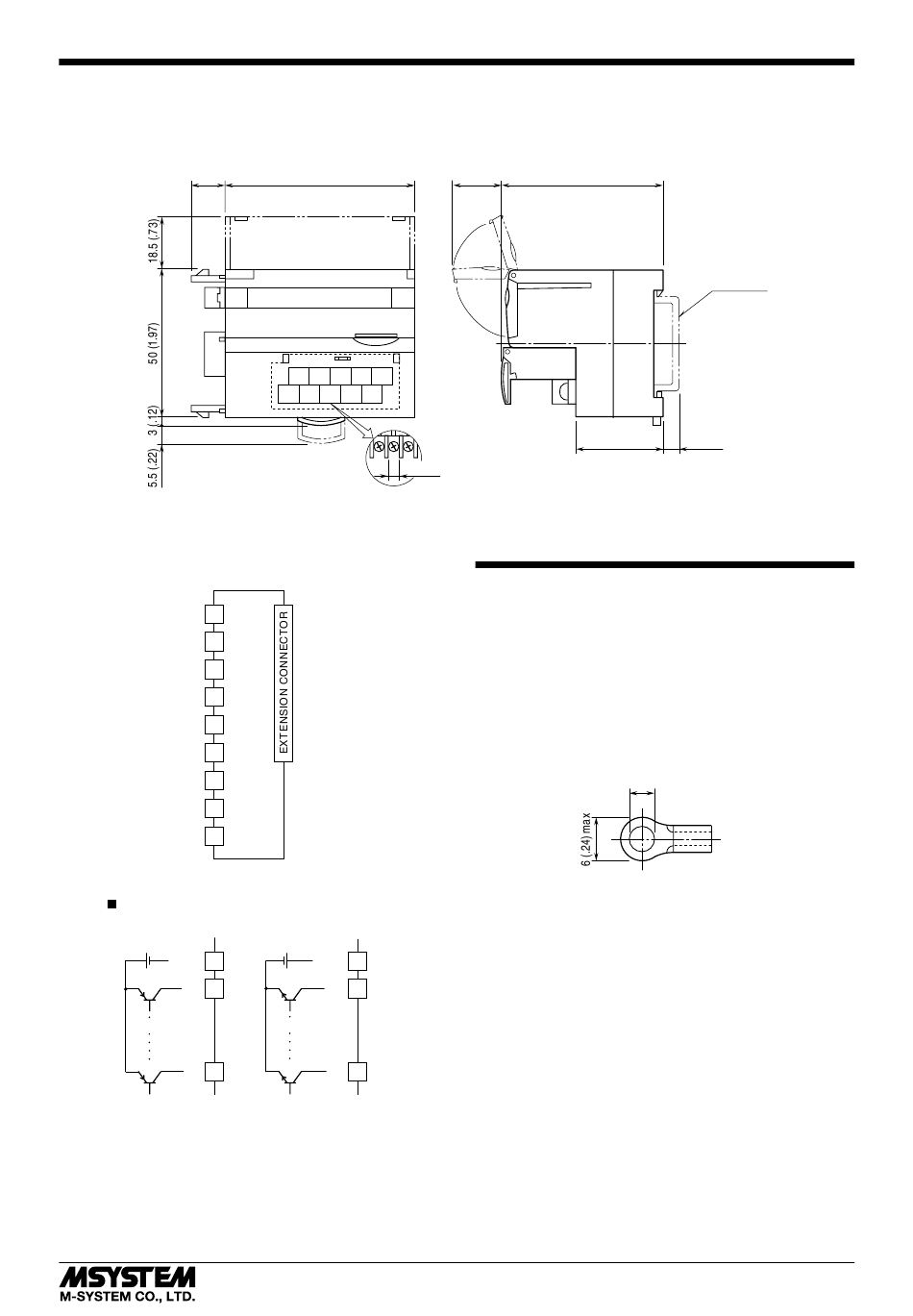

■ EXTERNAL DIMENSIONS unit: mm (inch)
11.5
(.45)
■ CONNECTION DIAGRAM
1
COM
2
X0
3
X2
4
X4
5
X6
7
X1
8
X3
9
X5
10
X7
Input Connection Examples
PNP Connection
+ –
1
COM
2
X0
10
X7
65 (2.56)
6 7 8 9 10
1 2 3 4 5
6 (.24)
10–M3 SCREW
TERMINALS
for INPUT
NPN Connection
– +
1
COM
2
X0
10
X7
