Halsey Taylor HVRBL Series Owner's Manual
  1. Manuals
  2. Brands
  3. Halsey Taylor Manuals
  4. Water Dispenser
  5. HVRBL Series
  6. Owner's manual

Halsey Taylor HVRBL Series Owner's Manual

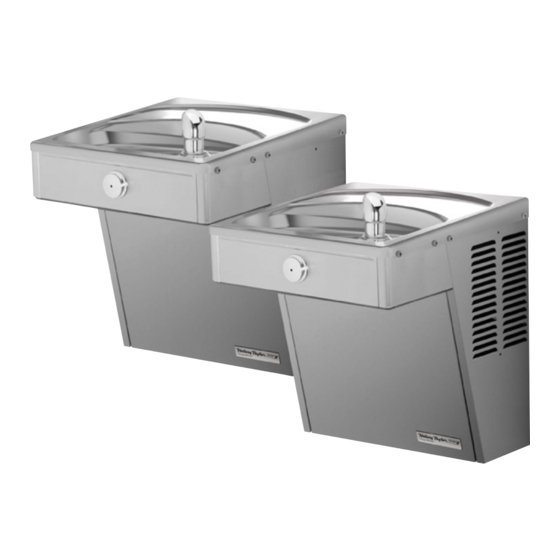

Vandal-resistant water coolers
