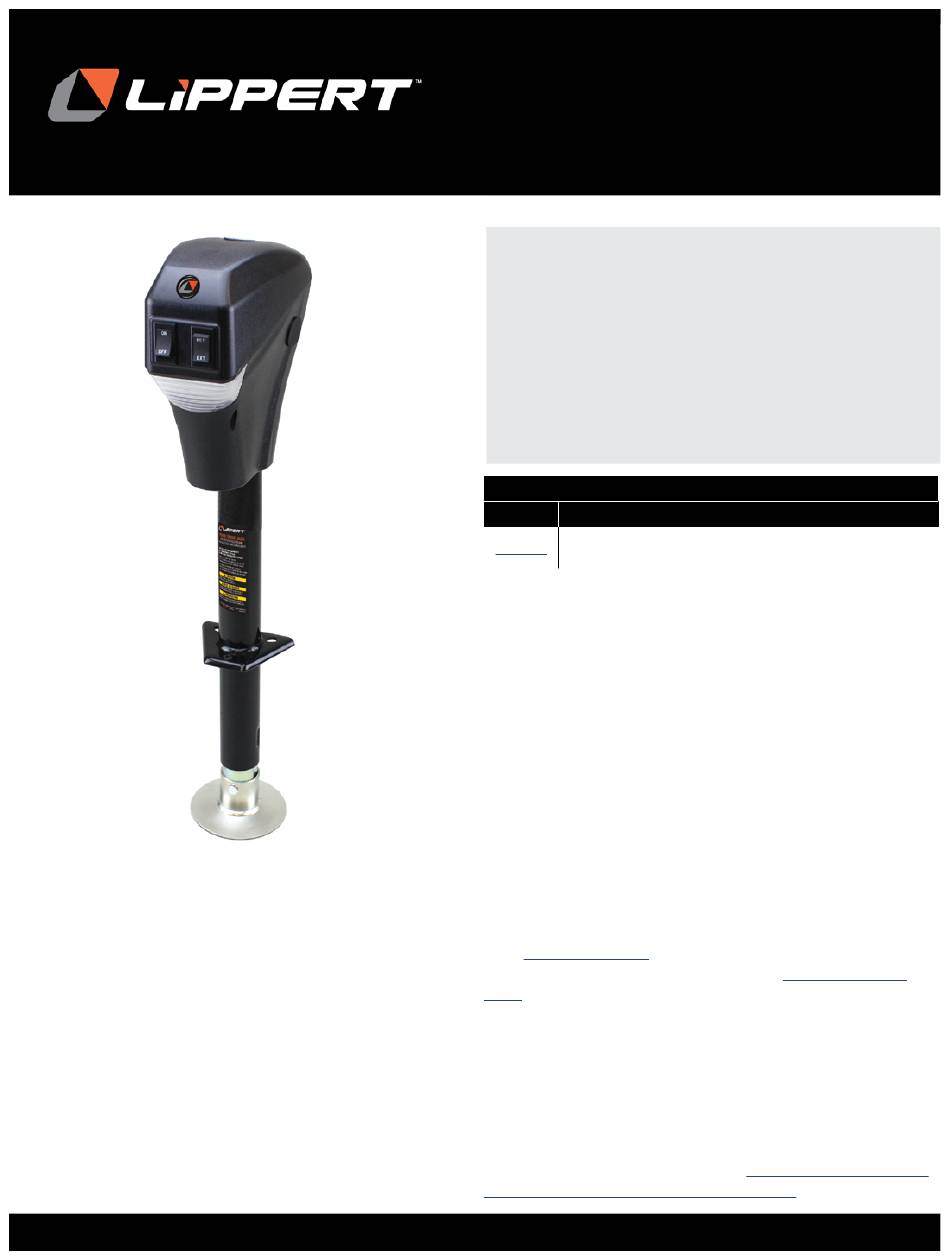

Power Tongue Jack
Installation and Owner's Manual
(For Aftermarket Applications)
Power
Tongue Jack
Installation and
Owner's Manual
(For Aftermarket Applications)
Power Tongue Jack Aftermarket Kit
Power Tongue Jack Aftermarket Kit
Part #
Part #
Description
Description
Power Tongue Jack with Footpad Kit and
285318
Manual Crank Handle

Introduction

The Power Tongue Jack is used with travel trailer A-frame
applications. The textured casing helps protect from chips
and cracks. Four LED lights provide excellent illumination
while reducing power consumption. Helical cut gears reduce
noise and improve operating efficiency. Enhanced rocker
switch improves its durability. The Power Tongue Jack has
a 30 Amp rating, 18" Stroke with a 3,500-lb capacity.
NOTE: The power tongue jack is designed for vertical
movement of the trailer only.
NOTE: Images used in this document are for reference
only when assembling, installing and/or operating this
product. Actual appearance of provided and/or purchased
1
parts and assemblies may differ.
2
Additional information about this product can be obtained
2
from
lci1.com/support
3
Replacement kits can be ordered from
3
com/
or by using the LippertNOW app.
4
The LippertNOW app is available for free on Apple App
5
Store
for iPhone
and iPad
®
®
5
Android
users.
5
App Store
and iPad
®
6
Google Play
and Android
7
7
Information regarding the assembly and components of
7
this product can be obtained from
7
tongue-jacks-support-power-tongue-jack.
1
CCD-0004287
or by using the LippertNOW app.
https://store.lci1.
and also on Google Play
®
are registered trademarks of Apple Inc.
®
are trademarks of Google Inc.
https://support.lci1.com/
for
Rev: 12.15.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 285318 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lippert 285318

  • Page 1: Table Of Contents

    Part # Part # Description Description Power Tongue Jack with Footpad Kit and 285318 Manual Crank Handle Introduction The Power Tongue Jack is used with travel trailer A-frame applications. The textured casing helps protect from chips and cracks. Four LED lights provide excellent illumination while reducing power consumption.
  • Page 2: Safety

    PERSONAL INJURY AND/OR SEVERE PRODUCT AND PROPERTY DAMAGE, INCLUDING VOIDING OF THE COMPONENT WARRANTY. THE TRAILER MUST BE SUPPORTED PER MANUFACTURER’S RECOMMENDATIONS BEFORE WORKING UNDERNEATH. FAILURE TO DO SO MAY RESULT IN DEATH OR SERIOUS INJURY. lippert.com 432-LIPPERT (432-547-7378) CCD-0004287 Rev: 12.15.21...
  • Page 3: Parts List

    Not all parts are available for individual sale. All parts (if necessary). with a link to the Lippert Store can be purchased. A. Remove the hairpin cotter pin (Fig.1D) and clevis pin (Fig.1C) holding the footpad (Fig.1B) to the jack leg (Fig.1A).
  • Page 4: Installation

    Fig.3 removed (Fig.1). 3. Secure the Power Tongue Jack to the coupler plate with ” - 16 x 1” hex bolts (Fig.4A). the three provided lippert.com 432-LIPPERT (432-547-7378) CCD-0004287 Rev: 12.15.21...
  • Page 5: Operation

    3. Make sure the ground surface under the power tongue jack is firm and level. 4. Push EXT (Fig.6C) to extend the power tongue jack until the footpad touches the ground and the coupler clears the hitch ball. Fig.6 lippert.com 432-LIPPERT (432-547-7378) CCD-0004287 Rev: 12.15.21...
  • Page 6: Manual Operation

    F. Remove the manual crank handle (Fig.9). G. Replace the rubber plug (Fig.8A). NOTE: Make sure the leg (Fig.7A) of the power tongue jack is fully retracted prior to moving the tow vehicle. Fig.8 lippert.com 432-LIPPERT (432-547-7378) CCD-0004287 Rev: 12.15.21...
  • Page 7: Troubleshooting

    NOTE: Release the switch immediately when the clutch noise occurs. The clutch is the overload protection for the motor. The clutch should not slip during normal operation. This will cause excessive wear on the clutch and the motor. lippert.com 432-LIPPERT (432-547-7378) CCD-0004287 Rev: 12.15.21...
  • Page 8 Installation and Owner’s Manual (For Aftermarket Applications) Notes Manual information may be distributed as a complete document only, unless Lippert provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lippert.com.
