Page 1: User Manual

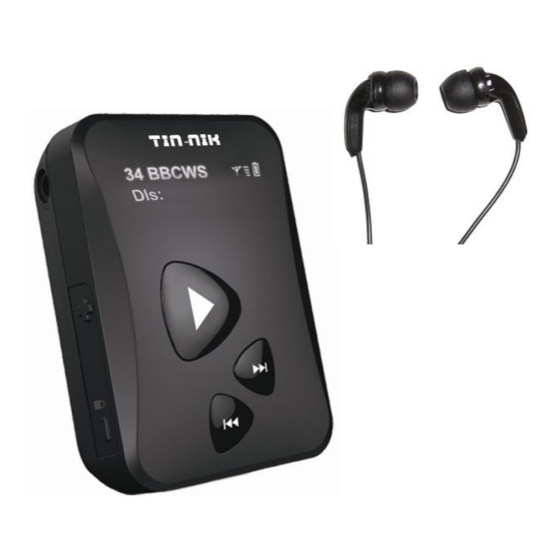

USER MANUAL DAB+/DAB/FM DAB-398S Multi-Language mini Radio IMPORTANT: Please read the manual carefully before using the product and keep it for future reference. -
Page 2: Table Of Contents
DAB-398S Key Instruction .......................... 6 OLED Display ............................... 7 Operation Language Setting ........................9 1. Using for the first time or After Resetting DAB-398S ..............9 2. Changing Language While Using DAB-398S ................9 Clock Setting ............................... 10 Key Lock ..............................11 DAB-398S DAB Radio Operation ...................... - Page 3 Reset The DAB Radio Stations ........................ 17 Safety Information ............................17 Product Specifications ..........................18 WARNING: For safety do not operate DAB-398S while driving V.20210922A...
-
Page 4: Unpacking
Charge Up Please charge the DAB-398S for 2 hours before using it for the first time. Please plug the charging cable into the socket of the radio and a 'click' sound will be heard, and the red charge light will be on until the radio is full charged. -
Page 5: Earpiece Usage
The earpiece is used as an antenna, so please plug in the cable before using the device and keep the cable as straight as possible for good reception: DAB Stations The earpiece is used as an antenna for receiving DAB signal. Note: *The original earphone is specially made for DAB-398S. We do not guarantee that other brands of earphones will work well with DAB-398S. V.20210922A... -
Page 6: Dab-398S Key Instruction
DAB-398S Key Instruction Earpiece Socket Charging socket OLED Display On / Off Volume+ DAB / FM / Menu /Enter Next Key Volume - / Lock Previous Key Switch radio on and switch off. ( press one time to switch on, Press & hold 3sec. to switch off ) ON / OFF: As an enter key. -
Page 7: Oled Display
Fine tune FM frequency Next Key： To select the next station Scan for the available FM radio stations. Choose the next DAB and FM stations. Set the clock. Fine tune FM frequency. Volume + ： To increase the volume level Volume - : To decrease the volume level To lock and unlock the radio... - Page 8 FM Mode FM Signal M7 105.5MHz METRO FINANCE The 8 Stored FM Channel FM Frequency RDS Station Name 07DBC DAB Station name We channel Scrolling *Note: Minor interference may occur while OLED is on. OLED will turn off automatically after a short while, resume display by pushing any key. V.20210922A...
-
Page 9: Operation Language Setting
Stations) to reset the radio to initial state , then follow the above process again to select an appropriate language.) 2. Changing Language While Using DAB-398S If the user hopes to change languages while using DAB-398S. First press the ON/OFF key to enter idle mode (showing clock), second press and hold for 2 seconds to enter the “Select Language”... -
Page 10: Clock Setting
. After adjusting the hour digits the minute digits will flash, press the key to adjust the minute digits, confirm by pressing again. Wait for 10sec, DAB-398S will go back to idle mode (showing clock). This number is flashing This number is flashing DAB 14：10... -
Page 11: Key Lock
OLED screen. Shows it is Unlocked DAB-398S DAB Radio Operation 1. Scan the DAB Radio Stations When you switch on the radio for the first time, the OLED screen will display the words “DAB Loading”, it will then Auto scan: automatically scan for local DAB radio stations, then it will show “DAB Scanning…”... -
Page 12: Save Your Favourite List Of The Dab Radio Stations
DAB Situation Enter menu mode Enter rescan mode When scanning has completed, DAB-398S radio will play the last available DAB radio station through searching. Press the key to choose the previous station or press the key to choose the next station. The name of the DAB radio station will appear on the OLED screen, (eg: 01DBC) 2. -
Page 13: Play The Favourite Dab Radio Station
Press again Press Press & hold Press again 01DBC Store mode to confirm Store To F0? Store To F1? Stored select position for 2 sec to confirm save “01DBC” “01DBC” station has Choose “ F1” as the Enter Store Mode Asking station saving position station as a favorite been saved to “F1”... -
Page 14: Pause Or Play The Dab Radio
Press & Press & hold hold F0 01DBC Normal mode 01DBC to confirm or 2 sec In favourite mode Choose normal mode Return to normal mode 5. Pause or Play the DAB Radio In DAB radio mode, press the ON/OFF key to pause the radio. The clock will then appear on the OLED screen (The clock will be adjusted by the DAB radio station automatically). -
Page 15: Fm Radio Operation
Radio Name 07DBC Scrolling message We channel FM Radio Operation 1. Listen To FM Radio In DAB mode, press the key once to change to FM mode. The OLED will show “FM Loading…” then the FM radio frequency will appear on the OLED screen. -
Page 16: Manual Tune
Press & hold M7 107.4MHz … M7 108.0MHz FM Scanning for 2 sec Scanning for the next Under M7 channel frequency Found frequency 108.0 strongest signal FM stations and saved to M7 3. Manual Tune In FM radio mode, press and hold the key for 2 seconds until the “Manual Tune”... - Page 17 Reset The DAB Radio Stations When the DAB-398S radio is switched off, press and hold the key first ,Then press and hold the ON/OFF key at the same time as the key for a few seconds until the OLED shows a series of numbers, it means that all previously saved radio stations have been deleted. When you switch on the radio again, it will automatically re-scan the new radio stations available.
- Page 18 Product Specifications Multi-Language’s Support (English, German, French, Italian, Norwegian, Danish, Swedish, Spanish) Build-in Polymer-Li rechargeable battery (Charging time: 2 hours) *DAB playing time: 7 hours FM playing time: 7 hours 3.5mm plug in headset socket Frequency range: (Band Ⅲ): 174 ~240 MHz Frequency range: (FM): 87.5~108.0 MHz Memory for saving 60 DAB stations...
