LEGRAND Galion K8/H258BN-HK Instructions

TM

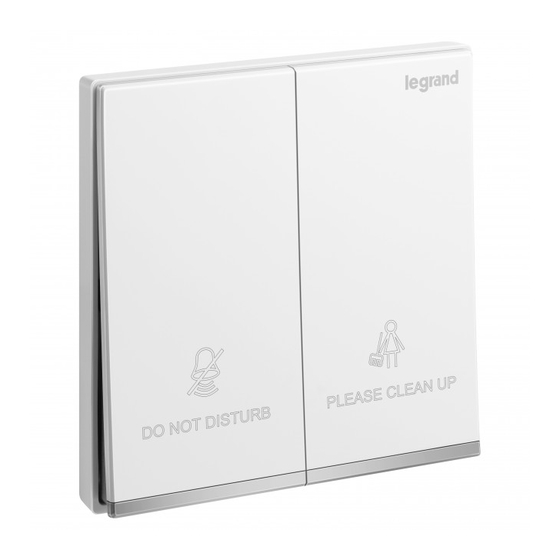

Galion
2G Switch for DND/CUR
2 824 16/16m
1. USE
Use in conjunction with hotel bedroom call indicator.
Suitable for rooms of hotel, inns, etc. Customer can choose "Do not
disturb" (DND) or "Please clean up" (CUR) status.
(Supplied with M3.5 screws for BS boxes. Flush mounting or Surface
mounting.)
2. RANGE
Designation
2G Switch for
DND/CUR
2G LED Switch for
DND/CUR
Colours
- front: white/rose golden/champagne/dark silver
- rear: white/rose golden/champagne/dark silver
X XXX XX white
X XXX XX-C matt black
X XXX XX-C1 rose golden
X XXX XX-C2 champagne
X XXX XX-C3 dark silver
Technical data sheet:F03023EN/00
Weight
Cat. No.
Characteristics
(g)
282416/16m 94
4AX-250VAC
K8/H258BN
97
4AX-250VAC
-HK
87045 Limoges Cedex
Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88
Cat. No(s): 2 824 16/16m
K8/H258BN-HK
K8/H258BN-HK
3. PREPARATION
3.1 General preparation
- flushing
mounting
box:
- surface
mounting
box:
4. OVERALL DIMENSIONS
Profile Size: 86×88 mm
Distance of installation hole: 60.3 mm
Minimum depth of the box>35 mm
Updated: 30/09/2019
CONTENTS
1. Use.......................................1
2. Range...................................1
3. Preparation.........................1
4. Overall dimensions.................1
5. Connection...........................2
6. Operation..............................2
7. Technical characteristics......2
8. Cleaning.................................2
9. Conformity - Approvals..................2
1
88
86
24
Created: 30/09/2019
2
7.2
14.3
1/2
