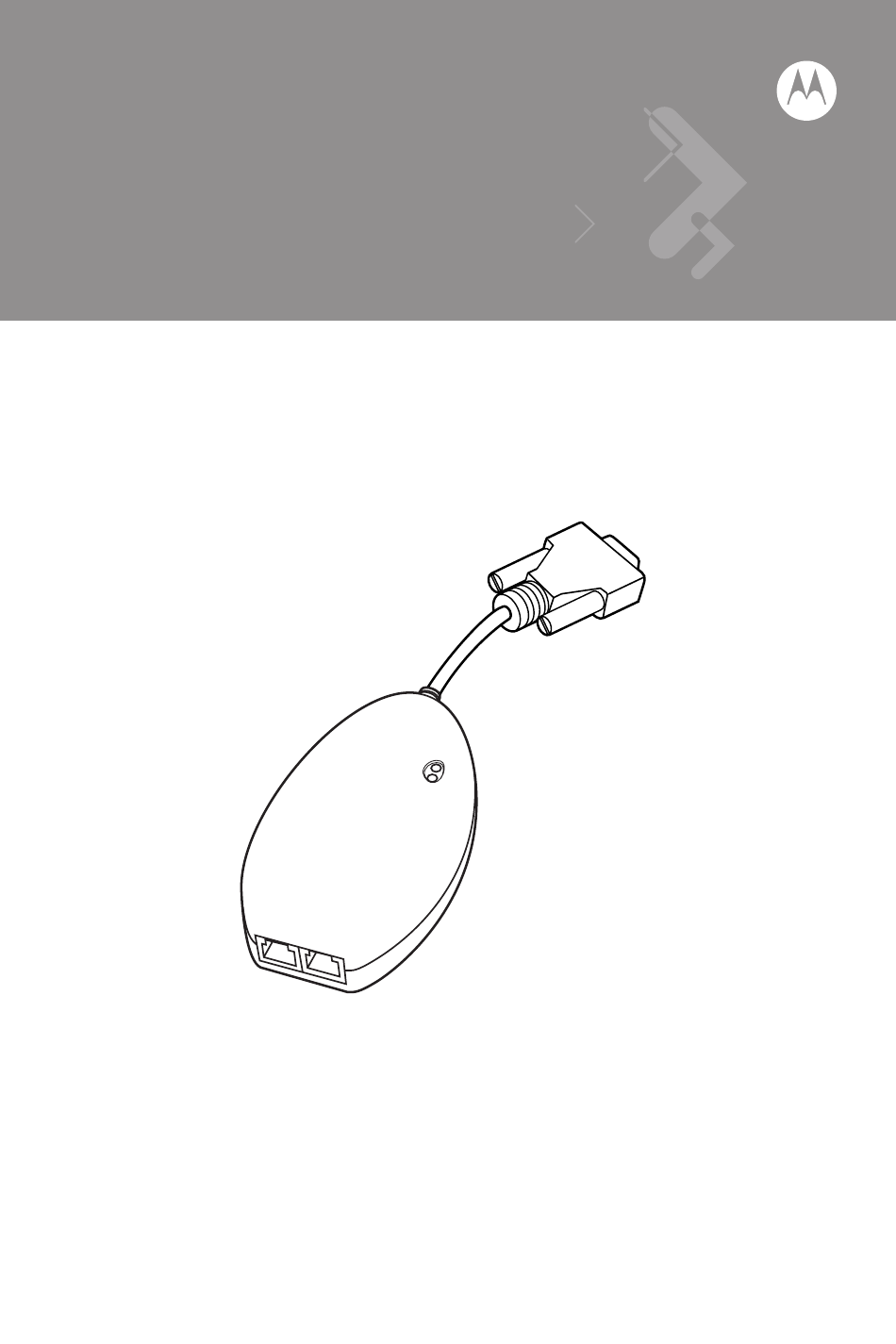

- Page 1 MDM9000 Modem For MC9000 Mobile Computers Quick Reference Guide...
-
Page 2: Warranty
MDM9000 Modem © 2007 MOTOROLA, INC. All rights reserved. Motorola reserves the right to make changes to any product to improve reliability, function, or design. Motorola does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. -
Page 3: About This Guide
MDM9000 Modem Introduction The MDM9000 Modem Module enables data communication between the MC9000 mobile computer and a host computer, remotely through the phone lines, and synchronizes information between the MC9000 and a host computer. About This Guide This Quick Reference Guide includes the following information: •... - Page 4 (refer to the mobile • computer’s Product Reference Guide for detailed instructions). Connecting the MDM9000 Modem Connecting to the MC9000 To use the modem to provide data communication between the MC9000 and a host computer remotely through a phone line: Insert the CAM onto the MC9000.
- Page 5 MDM9000 Modem If using a phone, connect the cord from the phone to the Phone port on the modem. Using the Correct Telephone Line Type Use a standard analog phone line, as in most households. In an office, use a line connected to a fax machine or modem.
-
Page 6: Configuring The Mc9000 For The Modem
MDM9000 Modem Connecting to the Single-Slot Serial Cradle To connect the modem to the MC9000 Single-Slot Serial Cradle: Connect the adapter cable to the serial port on the cradle. Connect the male 15-pin connector on the modem cable to the female 15-pin port on the adapter cable. -
Page 7: Modem Led Indicators
MDM9000 Modem Modem LED Indicators Indication Modem is not properly connected to the mobile computer; modem is not receiving power. Green Modem is connected to the mobile computer and is receiving power. Solid Amber Mobile computer is communicating with the host computer. - Page 8 MDM9000 Modem Symptom Possible Cause Action ActiveSync A partnership was not Establish a partnership with the fails. established with the host computer as described in the host computer. mobile computer’s Product Reference Guide. Host computer is not Select a host computer in the...
-
Page 9: Technical Specifications
MDM9000 Modem Symptom Possible Cause Action Dial-out fails Dialtone detection not The service you subscribe to (e.g., supported. a remote answering service) may continued... use a different type of dialtone. Disable dialtone detection on the modem by entering the initialization string “ATXO” in the... -
Page 10: Regulatory Information
Regulatory Information This device is approved under the Symbol Technologies brand; Symbol Technologies, Inc., is the Enterprise Mobility business of Motorola, Inc. (“Motorola”). All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. -
Page 11: Radio Frequency Interference Requirements-Fcc
Quick Reference Guide Radio Frequency Interference Requirements-FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Tested to comply with FCC Standards FCC rules. These limits are designed to provide reasonable FOR HOME OR OFFICE USE protection against harmful interference in a residential installation. - Page 12 MDM9000 Modem United States Where this device contains a Symbol Technologies, Inc. internal modem, this equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. A Supplier's Declaration of Conformity for the modem type may be obtained from http://www2.symbol.com/doc/ On the exterior of this equipment is a...
-
Page 13: Marking And European Economic Area (Eea)
Quick Reference Guide telephone company will provide advance notice so you may make any necessary modifications to maintain uninterrupted service. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless it clearly contains a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual... -
Page 14: Waste Electrical And Electronic Equipment (Weee)
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Motorola al final de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.symbol.com/environmental_compliance. - Page 15 Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Motorola-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa http://www.symbol.com/environmental_compliance. Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Motorola för återvinning. Information om hur du returnerar produkten finns på http://www.symbol.com/environmental_compliance.
-
Page 16: Service Information
1-800-927-9626 http://www.symbol.com MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2007...
