Walton 01OVLP0604-V1-NW Quick Start Manual

BASE DIMENSIONS
Length - 175cm
Width - 116cm
OVERALL DIMENSIONS
Length - 180cm
Width - 131cm
Height - 192cm
CAUTION
Every effort has been made during the
manufacturing process to eliminate the prospect
of splinters on rough surfaces of the timber. You
are strongly advised to wear gloves when
working with or handling rough sawn timer.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently
tested to EN71 level. We cannot accept responsibility for your safety whilst erecting or using this product.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23
x2
This building should be erected by
two people.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
0800 0142 333

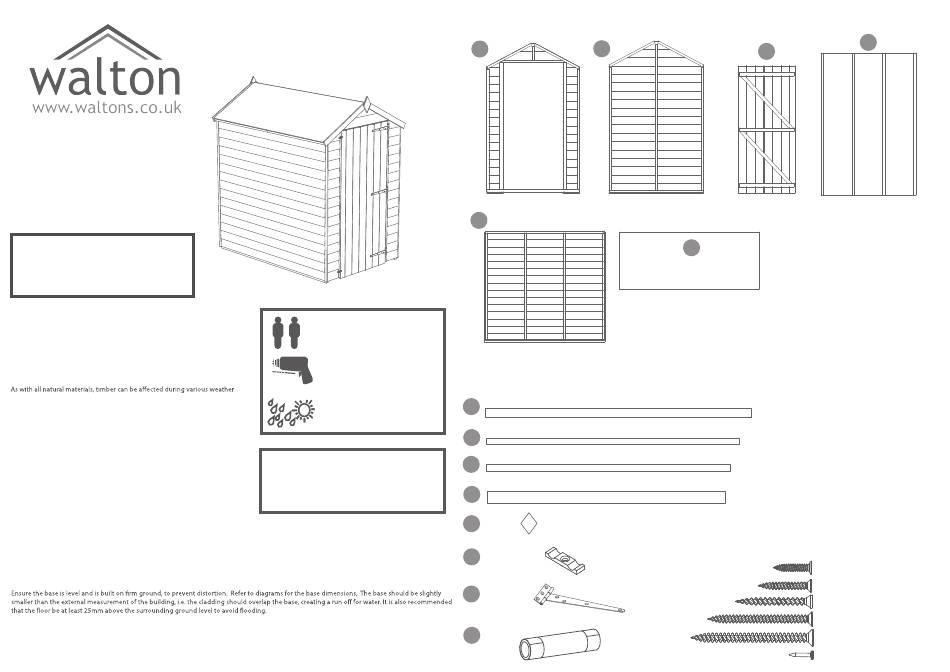

Contents
1 2
Door Gable
Plain Gable
5
Plain Side x2
Fixing Kit
Ridge Bar - 1745mm x1
7
Cover Trim - 1575mm x4
8
Eaves Frame - 890mm x4
9
Fascia- 710mm x4
10
11
Finial x2
12
Turn Button x2
13
T-Hinge x3
14
Felt
3
Door
6
Roof OSB
1780mm x 720mm
x2
16mm Black Screw x3
30mm Screw x60
40mm Screw x40
50mm Screw x30
60mm Screw x3
Felt Tacks x60
4
Floor
