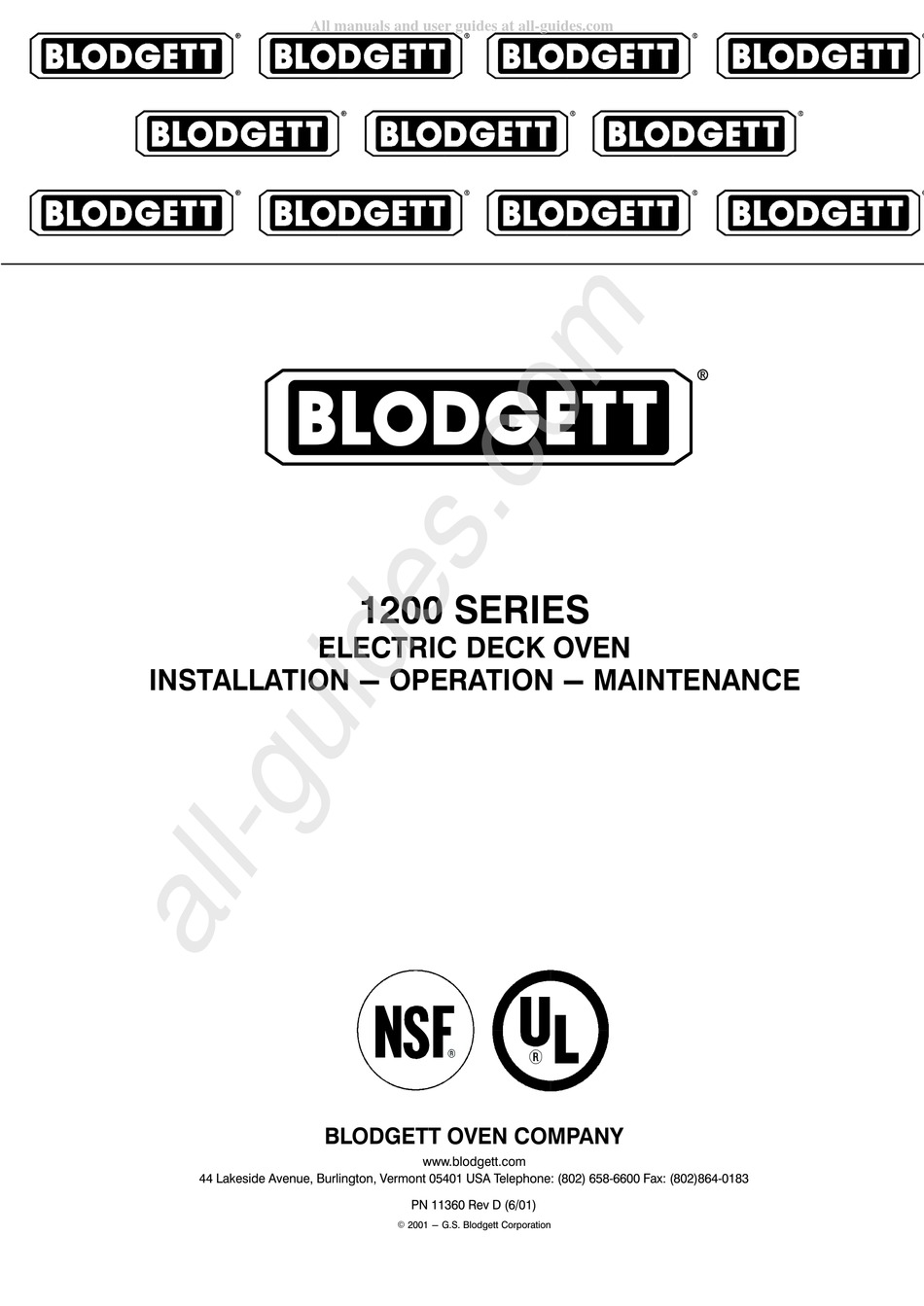

  • Page 1 All manuals and user guides at all-guides.com 1200 SERIES ELECTRIC DECK OVEN INSTALLATION - OPERATION - MAINTENANCE BLODGETT OVEN COMPANY www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658 6600 Fax: (802)864 0183 PN 11360 Rev D (6/01) E 2001 - G.S. Blodgett Corporation...
  • Page 2 All manuals and user guides at all-guides.com IMPORTANT WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE IN STALLATION, OPERATING AND MAINTENANCE IN STRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
  • Page 3 All manuals and user guides at all-guides.com BLODGETT THE REPUTATION YOU CAN COUNT ON For a century and a half, The Blodgett Oven Company has been building ovens and nothing but ovens. We've set the in dustry's quality standard for all kinds of ovens for every food service operation regardless of size, application or budget.
  • Page 4 All manuals and user guides at all-guides.com Model: Your Service Agency's Address: Serial Number: Your oven was installed by: Your oven's installation was checked by:...

  • Page 5: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Introduction Oven Description and Specifications ....... . Oven Components .

  • Page 6: Introduction

    All manuals and user guides at all-guides.com Introduction Oven Description and Specifications Blodgett Deck ovens have set industry wide stan when the equipment is properly installed and dards of excellence for baking characteristics, maintained. performance and reliability. They remain unsur Features include a full angle iron frame, all welded passed for product quality.

  • Page 7: Oven Components

    All manuals and user guides at all-guides.com Introduction Oven Components Ultra Rokite Deck - stone deck that absorbs heat Control Panel - contains wiring and components from below to cook the bottom of the product. to control the oven operation. Steel Deck - absorbs heat from below to cook Elements - provide heat to the baking chamber the bottom of the product.

  • Page 8: Installation

    Delivery and Location DELIVERY AND INSPECTION OVEN LOCATION All Blodgett ovens are shipped in containers to The well planned and proper placement of your prevent damage. Upon delivery of your new oven: oven will result in long term operator convenience and satisfactory performance.

  • Page 9: Oven Assembly

    All manuals and user guides at all-guides.com Installation Oven Assembly LEG ATTACHMENT DOUBLE STACKING 1. Tip bottom oven section backward. 1. Place bottom oven as close to the installation site as possible. 2. Attach the 32" (81,2 cm) front legs with two bolts to the underside of the oven frame.

  • Page 10: Ventilation

    VENTILATION ULTRA ROKITE DECKS 1. Assemble the back vents. Use only Blodgett Ultra Rokite Decks. Use of decks other than Blodgett will invalidate the 2. Screw the back vent to the rear of each oven section with the offset (enlarged) end toward warranty.

  • Page 11: Operation

    All manuals and user guides at all-guides.com Operation Control Panel COMPONENT DESCRIPTION 1. TIMER - Used to set the desired cook time. 2. THERMOSTAT INDICATOR LIGHT - When lit indicates heaters are in operation. When the light goes out, the oven has reached set oper ating temperature.

  • Page 12: General Baking Tips

    All manuals and user guides at all-guides.com Operation General Baking Tips PREHEATING BAKING NOTE: Preheating will vary between Ultra Rokite The ideal temperature for baking pizza will vary de pending on the type of pie, the method of baking shelf and steel shelf ovens. the type of shelf.

  • Page 13: Maintenance

    Blodgett service company. 1. Apply cleaners when the oven is cold, and al ways rub with the grain of the metal.

  • Page 14: Troubleshooting Guide

    *Denotes remedy is a difficult operation and should be performed by qualified personnel only. It is recommended, however, that All repairs and/or adjustments be done by your local Blodgett service agency and not by the owner/operator. Blodgett cannot as sume responsibility for damage as a result of servicing done by unqualified personnel.
  • Page 15 *Denotes remedy is a difficult operation and should be performed by qualified personnel only. It is recommended, however, that All repairs and/or adjustments be done by your local Blodgett service agency and not by the owner/operator. Blodgett cannot as sume responsibility for damage as a result of servicing done by unqualified personnel.
  • Page 16 All manuals and user guides at all-guides.com CUSTOMER INSERT WIRING DIAGRAM HERE...
