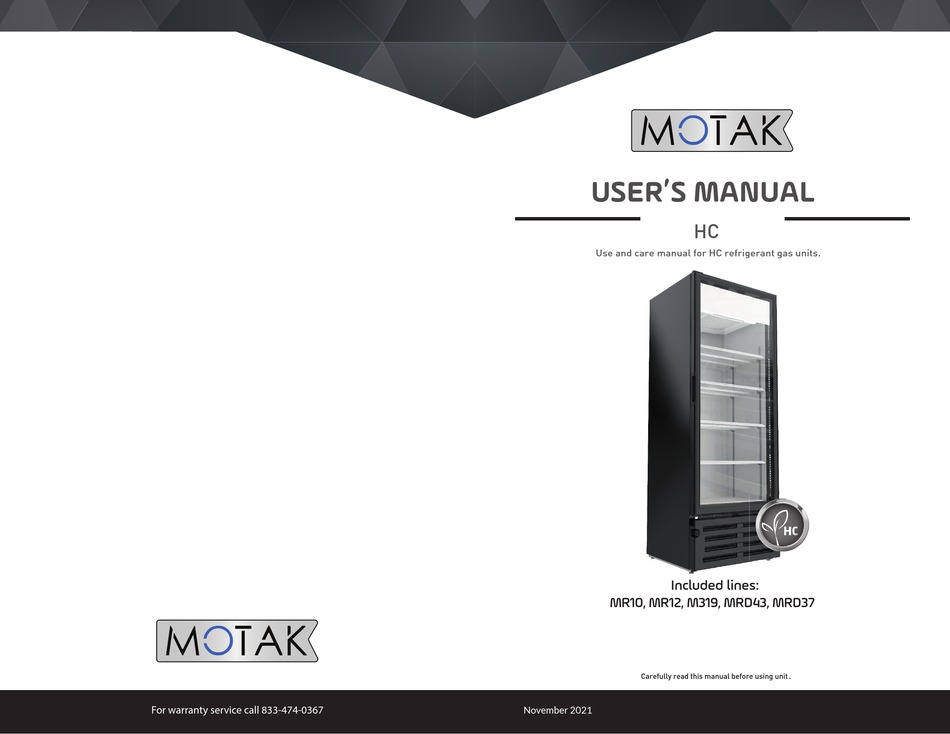

- Page 1 MOTAK USER’S MANUAL Use and care manual for HC refrigerant gas units. Included lines: MR10, MR12, M319, MRD43, MRD37 MOTAK Carefully read this manual before using unit . 3070758 For warranty service call 833-474-0367 November 2021...
-
Page 2: Table Of Contents
--------------------------------------------------------- 23 5.1. General cleaning --------------------------------------------------------- 23 OUTSIDE Continental U.S. and Canada: This warranty does not apply to, and MOTAK is not OUTSIDE Continental U.S. and Canada: This warranty does not apply to, and MOTAK is not 5.2. Technical maintenance --------------------------------------------------------- 24 responsible for, any warranty claims made on products sold or used outside the United States. -
Page 3: Important Safety Information
The installation and welding of the piping should be treated by a service technician authorized by MoTak variants; equipment altered or repaired by a third party other than MoTak’s service agents or without who is properly trained in the use and management of refrigerants. - Page 4 • Never stack two or more units; leveling feet are not designed for this purpose, and doing so compromises use safety. Stacking of one unit, only, on top of the same model is approved if using pods, skids or pallets, and supported by the cabinet corners only.
- Page 5 IMPORTANT NOTES deicing process, other than those recommended by the manufacturer. MoTak has no responsibility for accidents or damage suffered as a result of inadequate wiring, overloads and lack of ground wire, misuse of equipment, lack of training, etc. WARNING: do not damage cooling circuit.
-
Page 6: Unit Serial Number
2. UNIT SERIAL NUMBER 2.1 LOCATING THE LABELS To give you the best service, it is necessary to locate the serial number as shown below: *Images for reference use only. For warranty service call 833-474-0367 For warranty service call 833-474-0367 For warranty service call 833-474-0367... -
Page 7: Ownership
NOTE: Climate class is specified in ISO 23953-2. 2.2 OWNERSHIP Before you start to install your MOTAK unit, carefull inspect it for freight damage. If damage is discovered, immediately file a claim with the delivery freight carrier. MOTAK is not responsible for damage incurred during shipment. -
Page 8: Installation
• Never place objects over the unit. Consider that the cabinet’s structure has been constructed mainly of laminated sheet metal and polyethylene foam that may easily bend or deform when hit, and it may even deform over time due to placement of TV, microwave oven and other objects. -
Page 9: General Maintenance
5. GENERAL MAINTENANCE IMPORTANT: disconnect the unit from wall outlet before you perform any maintenance or cleaning task. IMPORTANT: do not perform any cleaning task with water hose or jet wash as it may cause damage to electrical components and cause electric shock. It is preferable to perform cleaning and maintenance tasks using safety work gloves. - Page 10 If you notice that it lacks sufficient force to fully close or it closes with too much difficulty, such that it could damage the door or refrigerated product may be at risk, call the MoTak USA Service Department.
- Page 11 MoTak USA Service Department. Door hinges and supports have been designed for an adequate turning radius and a proper seal separation distance. If for any reason you need to replace or adjust, request support from the MoTak USA Service Department.
- Page 12 Observe that these shelves have supports to place them over the unit’s floor, as well as enough rode to support product load. Level shelves Type E Type F Type G Shelves must have an adequate orientation and position, never to be forced or exert pressure on the unit walls or any accessory.
- Page 13 3.2 ELECTRICAL CONNECTION MOTAK units with HC refrigerants (R290 / R600a) are designed to operate under a specific electric voltage. Check unit’s serial label to make sure that the electrical classification For warranty service call 833-474-0367...
- Page 14 is adequate for installation (see page 5). IMPORTANT: ground connection is a protection system for equipment connected to electrical network. It is used in electrical installation to avoid current pass-through to user due to an isolation failure of active conductors. This unit must be connected to physical ground.
- Page 15 IMPORTANT: if the unit has a temperature control issue or, if failure alarms occur on CIF, EMS, LAE or ERC displays, never attempt to make control adjustments; please call the MoTak USA Technical Services Department. You will be assisted by experienced and authorized personnel.
- Page 16 Service Center for further details. IMPORTANT: horizontal shelf maximum load must not exceed equivalent weight of three can trays of 12oz (355ml). Category table for MoTak line units. Model Product Temperature...
