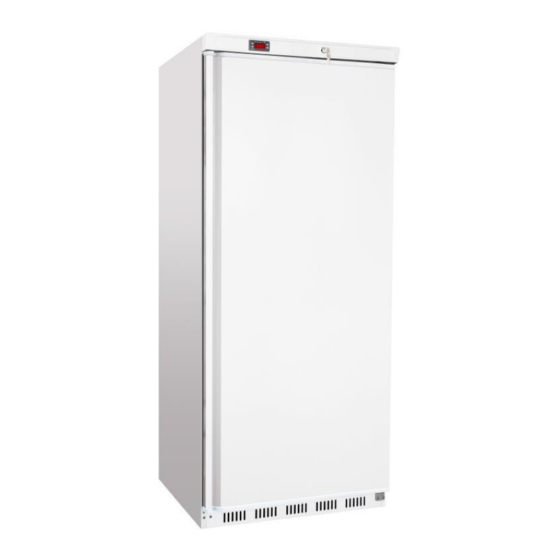

Upright Economy Reach-in
Refrigerator & Freezer
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage!
Inspect all components immediately.
I M P O R T A N T I N F O R M A T I O N R E
A D B E F O R E U S E PLEASE SAVE
THESE INSTRUCTIONS!
Advertisement
Related Manuals for Motak MSD-1DREC-HC
Summary of Contents for Motak MSD-1DREC-HC

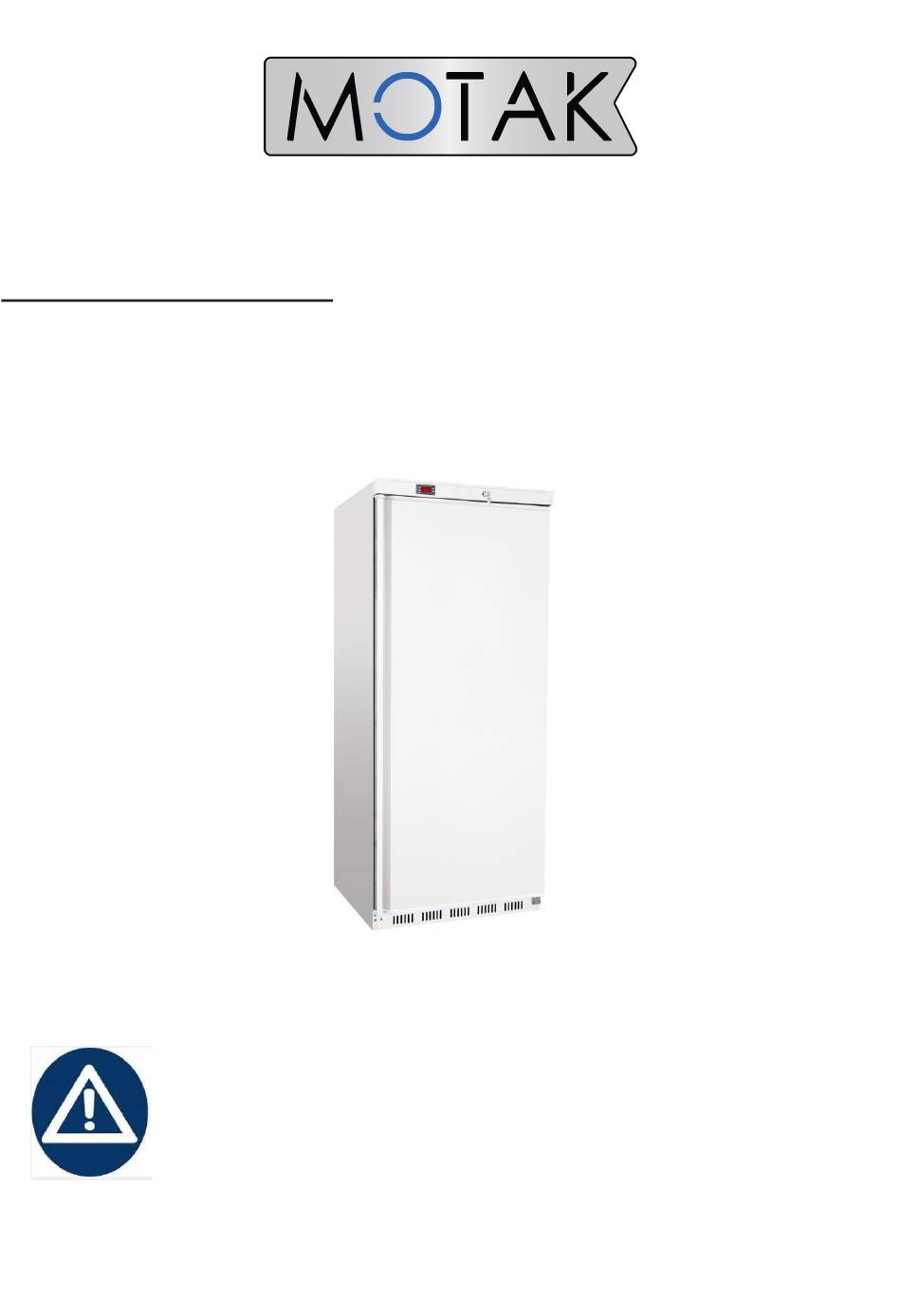

- Page 1 Upright Economy Reach-in Refrigerator & Freezer Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. I M P O R T A N T I N F O R M A T I O N R E A D B E F O R E U S E PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.
- Page 3 Service and Installation Manual CAUTION FOR SAFETY. 1. Leave enough space from the wall to the cabinet and the ceiling; DO NOT install back of unit flush to wall. It needs more than six inches (6”/20 cm) from the cabinet to wall. 2.
-
Page 4: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT .................. 4 SPECIFICATIONS ....................... 5 INSTALLATION ........................6 OPERATION .......................... 7 MAINTENANCE ......................... 9 WIRING DIAGRAM ......................11 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 5: Specifications
Service and Installation Manual SPECIFICATION Max Weight Max Weight Cord STORAGE SHIP Shelves/ CHARGE NEMA MODEL# V/Hz/Ph AMPS Load per Load per Lgth WEIGHT CAPACITY Shelf Size PLUG Cu-ft Shelf Model (ft) MSD-1DR- 115/60/1 53 lbs 553 lbs 3.88 5-15P EC-HC 25.7 x 20.9 MSD-1DF-... -
Page 6: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use in a permanent structure only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously except when one or more doors are open. - Page 8 Service and Installation Manual 1.2 Function of LEDS MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again. 2.2 HOW TO CHANGE THE SETPOINT 1.
-
Page 9: Maintenance
Service and Installation Manual MAINTENANCE The power must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 10 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse repeatedly and dry thoroughly.
-
Page 11: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: MSD-1DR-EC-HC MODEL: MSD-1DF-EC-HC For warranty service, call 833-474-0367... - Page 12 Service and Installation Manual WIRING DIAGRAM MODEL: MSD-1DR-EC-HC For warranty service, call 833-474-0367...
- Page 13 Service and Installation Manual WIRING DIAGRAM MODEL:MSD-1DF-EC-HC For warranty service, call 833-474-0367...
- Page 14 Service and Installation Manual For warranty service, call 833-474-0367...
- Page 15 Service and Installation Manual For warranty service, call 833-474-0367...
- Page 16 Distributed by: KaTom Restaurant Supply, Inc 305 Katom Drive Kodak TN 37764 Website: www.katom.com For Warranty Service Call: 833-474-0637...
