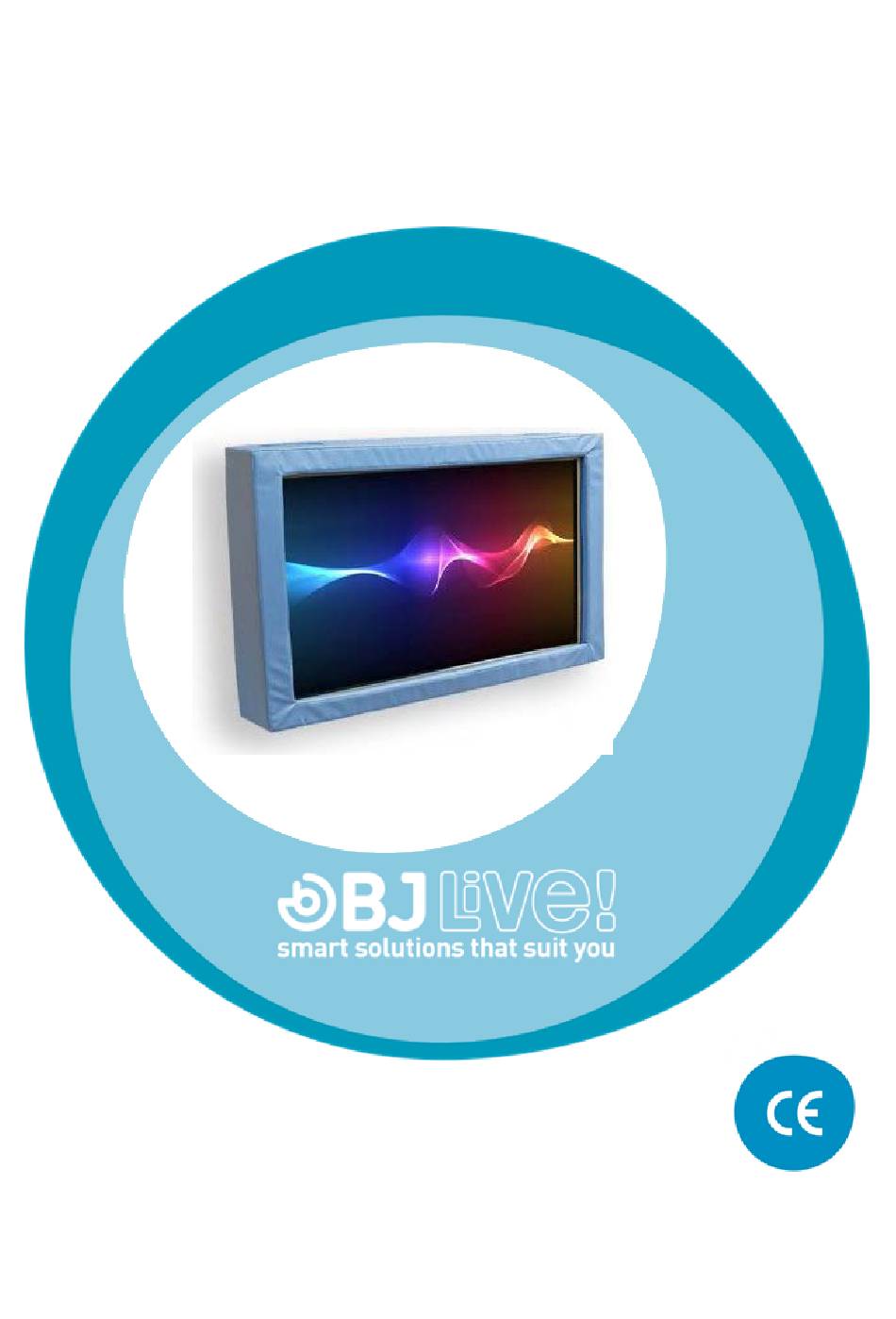

- Page 1 BJ EP2 SHX INTERACTIVE PANEL Installation Guide | www.bjliveat.com c.Mare de Déu del Coll, 70,Local|08023|Barcelona|Spain|t.+34 93 285 04 37|fax + 34 93 553 56 34| info@bjliveat.com...
- Page 2 BJ-EP2 SHX INTERACTIVE PANEL Installation Guide 1_Components PC and touchscreen monitor Wireless keyboard/ mouse Microphone Wall bracket 2_Attaching the padding Remove the protective foil from the double-sided tape to attach the padding to the monitor frame. The ON/OFF button must be situated at the top of the monitor. Once the padding has been attached, locate and connect the female connector in the panel to the male connector in the padding.
- Page 3 BJ-EP2 SHX INTERACTIVE PANEL Installation Guide 3_Mounting the panel on a wall BJ_EP2 SHX Interactive Panel Page 3...
- Page 4 BJ-EP2 SHX INTERACTIVE PANEL Installation Guide The following must be taken into account in order to ensure the panel is correctly installed: Ensure the wall can bear a total weight of 4 times that of the equipment being installed. Type 1 wall: false or timber frame walls.
- Page 5 BJ-EP2 SHX INTERACTIVE PANEL Installation Guide 5_Pre-loaded content Senswitcher: very simple activities that are controlled by touching any part of the screen. Whitecap: converts any sound into light signals. Look to Learn: various simple programs that allow interaction with the touchscreen.
- Page 6 BJ-EP2 SHX INTERACTIVE PANEL Installation Guide 6_Technical specifications BJ_EP2 SHX Interactive Panel Page 6...
