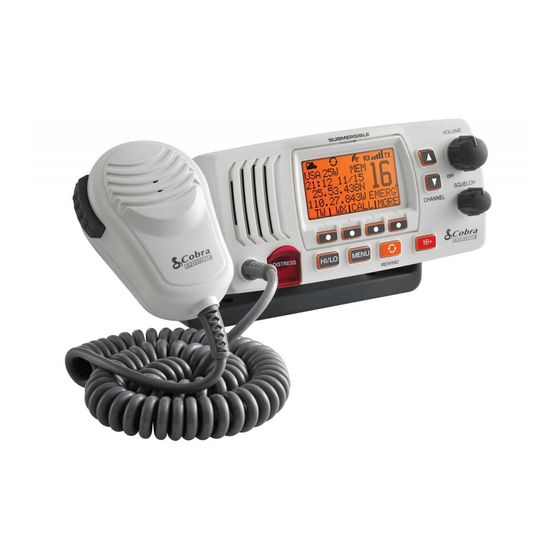

Class-D Fixed Mount VHF Radio
Nothing Comes Close to a Cobra
®
Introduction
Thank you for purchasing a Cobra Marine
Properly used, this Cobra
many years of reliable service.
Owner's Manual
How Your Cobra Marine VHF Radio Works
This radio is a VHF transceiver for fixed mounting on your boat. It gives you 2-way
vessel-to-vessel and vessel-to-shore station communications, primarily for safety and
secondarily for navigation and operational purposes. With it, you can call for help, get
information from other boaters, talk to lock or bridge tenders and make radiotelephone
calls to anywhere in the world through a marine operator.
Besides 2-way communications, in the U.S.A., the radio can provide quick
access to receive eight NOAA (National Oceanographic and Atmospheric
Administration) and two Canadian weather channels for alerting you to weather
emergencies with a tone on a weather channel you can select for your area.
Customer Assistance
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner's manual. If you require further
assistance after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance In The U.S.A.
Monday-Friday 9:00 AM- 5:00 PM EST
Call: 800-543-1608
SERVICE
Monday-Thursday 9:00AM-5:00PM EST
Call: 800-543-1608
Office:
6500 West Cortland Street,
Chicago, IL, 60707
Have questions? We can help. Contact us at 800-543-1608
M-F 9:00AM-5PM EST
For Assistance Outside the U.S.A.
Contact Your Local Dealer
A1 English
English
Our Thanks To You And
Customer Assistance
VHF radio.
®
product will give you
®
©2022 Cobra Electronics Corporation
