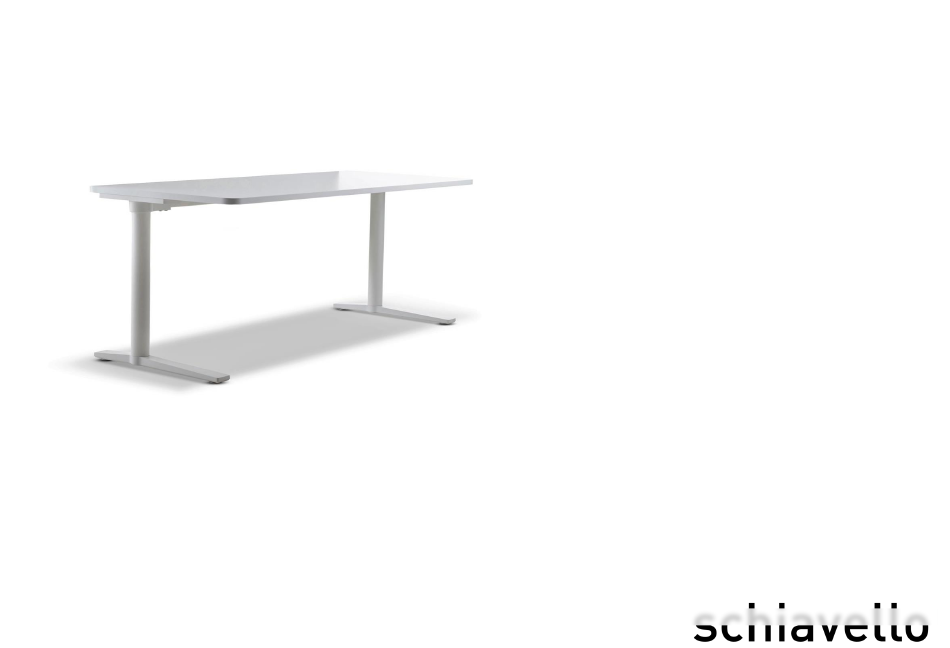

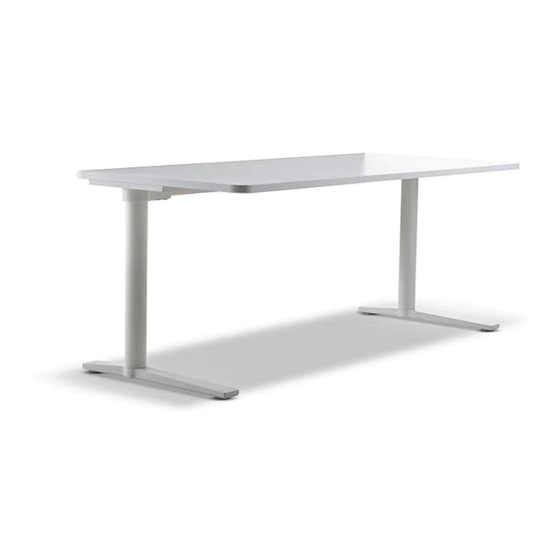

- Page 1 Krossi Fixed Height Desk Installation Guide...
- Page 2 Krossi Fixed Height Desk Installation Guide Page 2 (SI-P-22) Parts Included You will need: each Worktop with beam pre-installed Legs x 2 Phillips Head Screw Driver (Star Tip) M4 Screw (for the legs) x 8 M6 Screw (for the beams) x 4...
- Page 3 Krossi Fixed Height Desk Installation Guide Page 3 (SI-P-22) Step 1 Step 2 Place worktop upside down so that you see the Remove the 4 x M6 Screws in the beam and set aside. beam. Note: Leave the screws that fix the worktop to the beam. Note: ensure your worktop is on a clean flat surface.
- Page 4 Krossi Fixed Height Desk Installation Guide Page 4 (SI-P-22) Step 3 Step 4 Remove the screws in the worktop and set Position leg as per below. aside separately.
- Page 5 Krossi Fixed Height Desk Installation Guide Page 5 (SI-P-22) Step 5 Step 6 Loosely screw in 4 x M4 screws to allow leg Repeat steps 4 and 5 with other leg adjustment and hole alignment.
- Page 6 Krossi Fixed Height Desk Installation Guide Page 6 (SI-P-22) Step 7 Step 8 Tightly fix the legs to the beam by fastening the Tighten all M4 screws to ensure securely M6 screws into position fastened Force beam to create alignment of holes (if required)
- Page 7 Krossi Fixed Height Desk Installation Guide Page 7 (SI-P-22) Step 9 Flip the desk over For further assistance, please contact your Schiavello representative or head office on 03 9330 8888...
