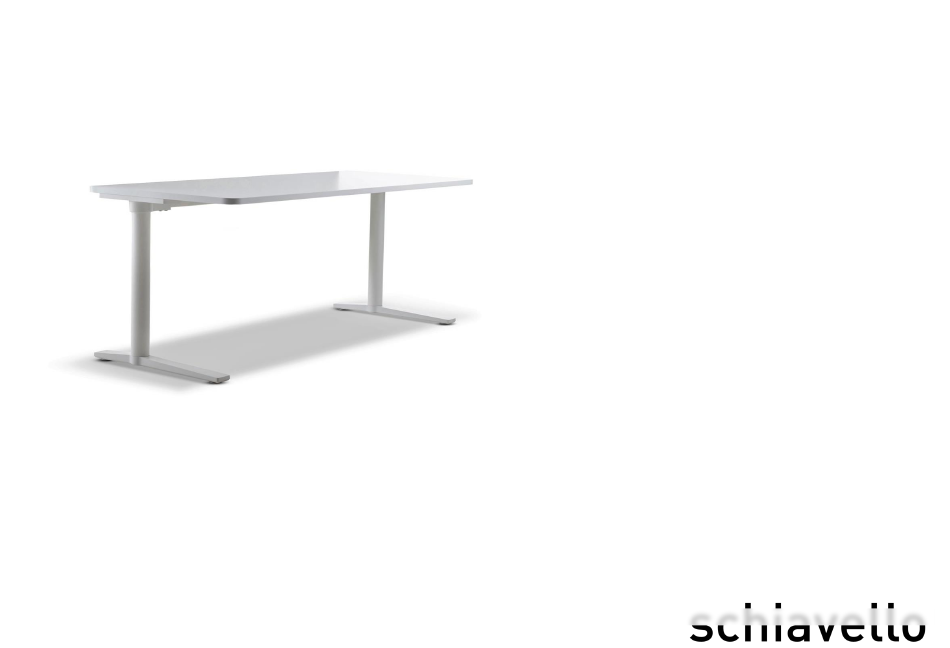

- Page 1 Krossi Electric Adjust Desk Installation Guide...
-
Page 2: Parts Included
Krossi Electric Adjust Desk Installation Guide Page 2 (SI-P-23) Parts Included You will need: Control Box each Switch Beam Worktop with beam, control box and Legs x 2 Phillips Head Screw Driver switch pre-installed (Star Tip) M4 Screw (for the legs) x 8 M6 Screw (for the beams) x 4... - Page 3 Krossi Electric Adjust Desk Installation Guide Page 3 (SI-P-23) Step 1 Step 2 Place worktop upside down so that you see the Remove the 4 x M6 Screws from the beam and set beam, control box and switch aside. Note: Ensure your worktop is on a clean flat surface.
- Page 4 Krossi Electric Adjust Desk Installation Guide Page 4 (SI-P-23) Step 3 Step 4 Remove the 8x M4 Screws in the worktop and Place legs standing up. set aside separately. Move cord until the plug is visible. This will need to be plugged in later.
- Page 5 Krossi Electric Adjust Desk Installation Guide Page 5 (SI-P-23) Step 5 Step 6 Position leg as per below to commence fixing Loosely screw in 4 x M4 screws to allow leg adjustment to the worktop. and hole alignment. Note: Ensure the cord is not caught between the beam and the leg...
- Page 6 Krossi Electric Adjust Desk Installation Guide Page 6 (SI-P-23) Step 7 Step 8 Repeat steps 4 to 6 with other leg Tightly fix the legs to the beam by fastening the M6 screws into position Force beam to create alignment of holes (if required)
- Page 7 Krossi Electric Adjust Desk Installation Guide Page 7 (SI-P-23) Step 9 Step 10 Tighten all M4 screws to ensure securely Plug the leg cords into the control box fastened Repeat for both legs Note: Ensure the arrow head clips in.
- Page 8 Krossi Electric Adjust Desk Installation Guide Page 8 (SI-P-23) Step 11 Flip the desk over, and plug into power point. Note: When flipping the desk over, please take care with the switch that protrudes past the worktop as this can damage.
-
Page 9: Initial Setup & Troubleshooting
Press and hold the up or down key until the desired height is reached. 3.Release the DOWN button 4.The electric adjustable desk can now be used normally. For further assistance, please contact your Schiavello representative or head office on 03 9330 8888... -
Page 10: Ergonomic Considerations
Krossi Electric Adjust Desk Installation Guide Page 10 (SI-P-23) Ergonomic Considerations DESK SETUP - SITTING DESK SETUP - STANDING Setup Setup • Minimum height must be greater than any under-desk • Maximum height must be lower than any above-desk furniture/obstruction furniture/obstruction •...
