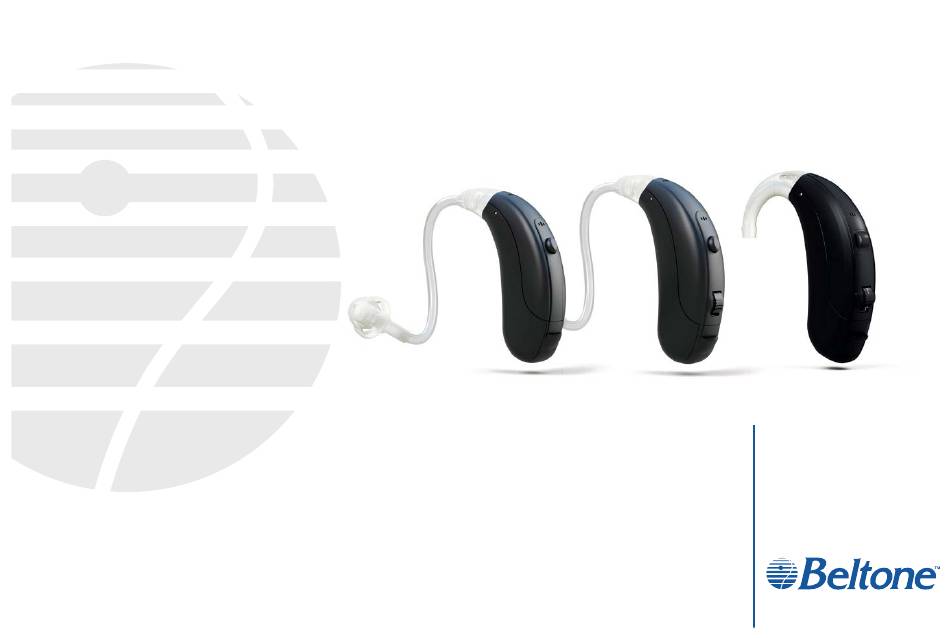

- Page 1 Technical Manual Beltone DELHI Platform Beltone A/S Global Technical Operations http://gto.gnresound.com Lautrupbjerg 7 DK-2750 Ballerup Denmark...
-
Page 2: Table Of Contents
Doc 0213860 rev L Table of Contents Form-Factor-Matrix & Product information ..............3-4 Part list..........................5 Part list - test equipment ......................6 Part list - programmed service modules/ASM FRAME............7 Part list - HSG parts....................... 8-10 Part list, thin tubes/domes ....................11-12 BICROS set up - Delhi 90....................13 Disassemble procedure .................... -
Page 3: Form-Factor-Matrix & Product Information
BOLD 2 BO295-DVI DELHI 70/80 DELHI 90 DELHI 60 Available colours: BEIGE (BGE), LIGHT GREY (LGR) GREY (GRY), DARK BROWN (BRN) & BLACK (BLK) Please note that BO295-DVI is available in 3 colours only: BGE, GRY & BLK OR175/185VI is available in 4 colours only: BGE, GRY, DBR & BLK ORx65 &... - Page 4 Product Information - DELHI 60/70/80 Doc 0213860 rev L Late 2012 new improved HSG parts, prog service module/ASM FRAME, hooks & thin tube adapt were introduced. A small overview for a repair situation: “Old” version: HSG parts require only one pin. TOP and BOT HSG are glued to be fixed and cannot be reused. HSG parts will fit old and new version of prog service modules.
-
Page 5: Part List
Part List Doc 0213860 rev L Description Part No Description Part No PIN,0.60X5.90 (for 60 HSG parts) 15344200 AUTOPHONE MAGNETS (3 pcs) 17294600 PIN,0.60X8.20 (for 60 HSG parts) 16342400 GENERIC BRUSH, BLK 17435000 PIN,0.60X6.05 (for 70/80/90 HSG parts) 16059700 AUD SHOE ASM,W/O TRMR,DELHI (60/70/80/90) 17631100 PIN,0.60X8.80 (for 70/80 HSG parts) 15344000... -
Page 6: Part List - Test Equipment
Part List - Test Equipment Doc 0213860 rev L TEST EQUIP DELHI90 Part No TEST EQUIP DELHI60 / 70 / 80 Part No TEST JIG, DELHI90 SERVICE JIG/FIXTURE 18097500 18985500 (white fixture attached to the brown test frame) TEST FRAME (HI test) 16902800 TEST RING 15472600... -
Page 7: Part List - Programmed Service Modules/Asm Frame
70/80/90 modules are available in different colours due to a VC in different colours is mounted Description Part No ASM,FRAME,OR365DI,PROG 18737400 Programmed Service modules/ASM FRAME are nano coated Service Module DELHI 60 Service Module DELHI 70/80 Service Module DELHI 90 (dual mic is shown) Page 7 of 21 Not subject to issue control when printed... -
Page 8: Part List - Hsg Parts
Part List - Housing Parts DELHI 60 Doc 0213860 rev L HSG BOT, PTD BATT COLOUR PB COVER HSG TOP (printed) DOOR 18202400 18737500 18737700 20960200 18202401 18737501 18737701 20960201 18202402 18737502 18737702 20960202 18202404 18737504 18737704 20960204 18202408 18737508... - Page 9 Part List - Housing Parts DELHI 70 & 80 Doc 0213860 rev L COLOUR HSG TOP HSG BOT, PTD (printed) OR175VI OR275DVI OR375DVI OR185VI OR285DVI OR385DVI (single mic) (dual mic) 18738000 18740100 18739900 18740200 18740400 18740600 18740800 18746000 18740101 18740201 18740401 18740801 18746001...
- Page 10 Part List - Housing Parts DELHI 90 Doc 0213860 rev L HSG BOT BATT HSG PART COLOUR HSG TOP PB COVER DOOR printed) BO395-DVI BO295-DVI 18994400 18996100 18996200 18191000 18994500 18994401 18996101 18191001 18994501 18994402 18996102 18996202 18191002 18994502 18994405 18996103 18191005 18994505...
- Page 11 Part List - SureFit Thin Tubes & Domes (for DELHI 60/70 only) Doc 0213860 rev L THIN TUBE BLISTER PACKS THIN TUBE DOMES RIGHT LEFT (3 x cleaning tubes / 5 x thin tubes) Description THIN TUBE,SF,0A 19402600 19403500 (10 pcs)
-
Page 12: Part List, Thin Tubes/Domes
Part List - Thin Tubes & Domes (for DELHI 60/70 only) Doc 0213860 rev L THIN TUBE BLISTER PACKS THIN TUBE DOMES Part No (5 tubes & 3 cleaning wires) Description THIN TUBE 2,0A,R,BLSTR 18628600 (10 pcs) THIN TUBE 2,0B,R,BLSTR... -
Page 13: Bicros Set Up - Delhi 90
BICROS Set Up (90 models only) Doc 0213860 rev L DELHI 90 DELHI 90 BICROS (MBL) 18939002 Audio shoe BICROS w/trimmer Audio shoe 17598100 * 17637300 Audio cord in a suitable length 7000-4x * trimmer allows to adjust input signal. Note that also p/n 17631100 AUD SHOE ASM,W/O TRIMMER **can be used Page 13 of 21 Not subject to issue control when printed... -
Page 14: Disassemble Procedure
Disassemble Procedure Doc 0213860 rev L Remove the hook by turning it counterclockwise. Pull it out. Locate the two pins holding top and bot HSG and push them out using a pin removal tool. Lift them out by using a tweezer Separate top HSG from bot HSG by slowly removing the top HSG. - Page 15 Disassembled HI’s Doc 0213860 rev L DELHI 60 DELHI 70 / 80 DELHI 90 Page 15 of 21 Not subject to issue control when printed...
-
Page 16: Replace / Reassembling
Replace / Reassembling Doc 0213860 rev L Hold the bot HSG in the pos as shown and insert PC cover into the HSG with the tap pointing towards the hook. Be carefull not to damage the PC cover during reassembling as it is not an available spare part. Insert the module and gently push until it is complete in place. Mount the bat door PB cap shown from both sides Hold the top HSG in the pos as shown and insert PB into the HSG with the tap pointing towards the batt door. -
Page 17: Test Equipment
Test Equipment Doc 0213860 rev L Prog adaptor P/n 15472600 CS44 Prog cable Batt pill must be used p/n 17598200 Test ring (to be plugged into prog adapt) during test for 90 models 9022 907 69019 (R) p/n 17449400 size 13+ 9022 907 69029 (L) p/n 17449300 size 312+ p/n 17449500 size 675+... -
Page 18: Prepare For Hi Test
Prepare for HI Test - All Models Doc 0213860 rev L Push the PC cover open to get access to the connection points Make sure it is complete open. Otherwise there is not enough Open batt door and add a batt pill. Close batt door space for connecting the programming adaptor Page 18 of 21 Not subject to issue control when printed... - Page 19 Prepare for HI Test - All Models Doc 0213860 rev L Prog Adaptor: Press down Insert the one end of prog adapt into the square prog port of the device. Push the bot- the button to unlock after use tom part of prog adapt until it clicks to lock it on the device marks Connect CS44 prog cable to prog adapt in correct pos/direction (note the red marks) Connect the prog cable either directly to DSA6000 or to the PROG.
-
Page 20: Testing
Testing - DELHI 60 / 70 / 80 Doc 0213860 rev L Use of test fixture is mandatory for all BTE during DSA6000 final HI testing. To use the fixture, place the HI in the fixture according to pic. Place it in the test chamber as shown and select the correct test tpix and make sure to follow instructions coming up on the screen. - Page 21 Testing - DELHI 90 Doc 0213860 rev L Important points to obtain a good & stable HI test: Test ring to make good sealing HI to be placed in a straight line HI almost floating, only touch the foam slightly HI prog adapt must not touch test jig Prog./Batt.
