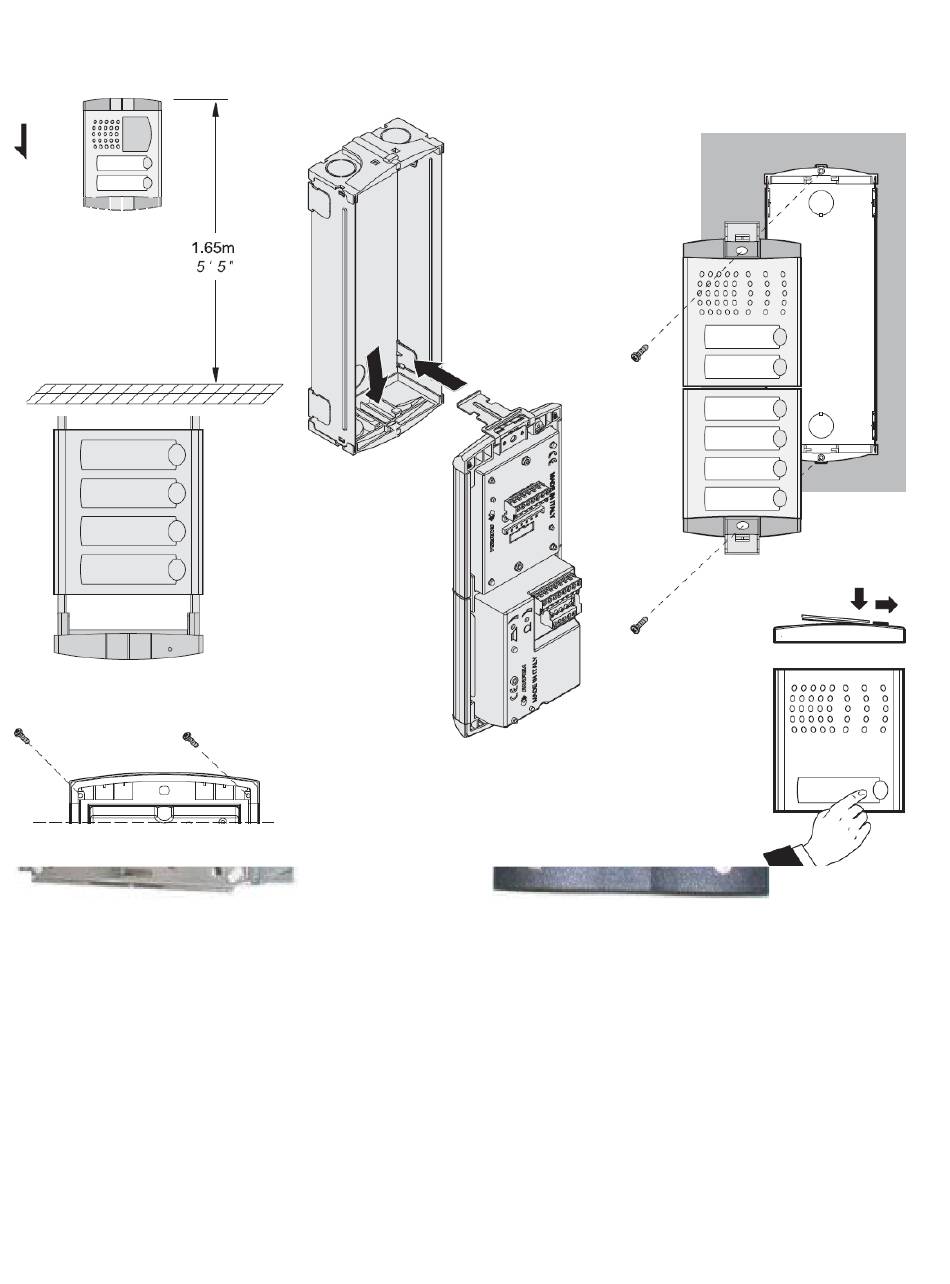

Installation Diagram
Note: The diagram above shows 2 button systems DS01 has only 1 button
DS02 Door Station
The DS02 consists of the following combination of parts, ordered separately
MA11P - Audio Intercom Module
MA43 - Audio/Monochrome, MA43C audio/color
Fixed 3.6 mm lens
MA71 – Backbox for flush mount
MA61 – Front Frame
