The DS01 consists of the following combination of parts, ordered separately
PL11P - Audio Intercom Module
PL71 – Backbox for flush mount
PL91 Rain Shelter (For surface mount – does not require PL71 and PL81)

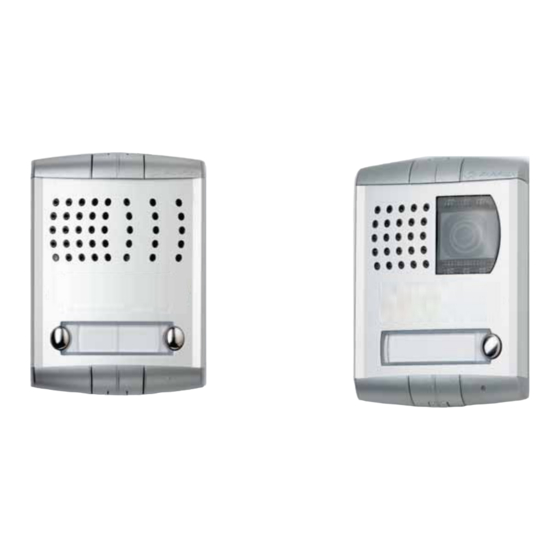

DS01 Door Station
PL41P - Audio/Monochrome, PL41PC audio/color
Fixed 3.6 mm lens
Dimensions
PL11P/PL41P/PL41PC: w99 x h110 x d77mm
PL71: w133 x h91 x d47 mm
PL81: w118 x h41 x d153 mm
PL91: w118 x h80 x d154 mm
PL81 – Hood (optional, with PL71 Backbox)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cytech DS01
Summary of Contents for Cytech DS01
- Page 1 DS01 Door Station The DS01 consists of the following combination of parts, ordered separately PL11P - Audio Intercom Module PL41P - Audio/Monochrome, PL41PC audio/color Fixed 3.6 mm lens PL71 – Backbox for flush mount PL81 – Hood (optional, with PL71 Backbox)
- Page 2 Installation Diagram Note: The diagram above shows 2 button systems DS01 has only 1 button DS02 Door Station The DS02 consists of the following combination of parts, ordered separately MA11P - Audio Intercom Module MA43 - Audio/Monochrome, MA43C audio/color Fixed 3.6 mm lens MA71 –...
- Page 3 Dimensions MA11P/MA43/MA43C: w115 x h55 x d115mm MA61: w140 x h9 x d140 mm MA71: w128 x h68 x d128 mm MA91: w146 x h92 x d145 mm MA91 Rain Shelter (For surface mount – does not require MA71) Installation Diagram...
- Page 4 Connections from DM02 to Comfort are shown in the DM02 manual which can be downloaded from http://www.cytech.biz/dm02_manual.html History 28 Jan 2014 – added link to DM02 Manual 26 Jan 2010 – 1.0.2 Added DS02 descriptions 5 May 2008 – 1.0.1 Corrected DS01 connections 5 April 2008 – 1.0.0 Initial Release...
