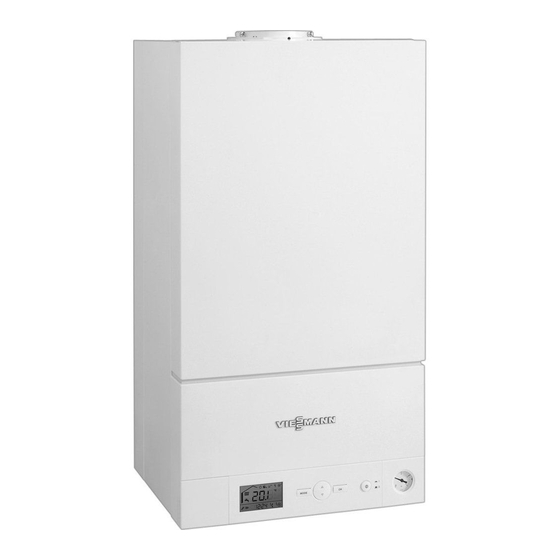

Viessmann Vitodens 050-W Installation Instructions
Replacing the gas train
Hide thumbs
Also See for Vitodens 050-W:
- User manual ,
- Installation and service instructions manual (100 pages) ,
- Technical manual (60 pages)
Advertisement
Quick Links
Installation instructions
for contractors
Replacing the gas train
for Vitodens 050-W
Safety instructions
Please follow these safety instructions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!
Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Installation, initial start-up, inspection,
maintenance and repairs must only be
carried out by a competent person
(heating engineer/installation contrac-
tor).
Opening the Vitodens
Installation and service instruc-
tions
5513827 GB
8/2014
VIESMANN
Before working on the equipment/heat-
ing system, isolate the power supply
(e.g. by removing a separate mains
fuse or by means of a mains isolator)
and safeguard against unauthorised
reconnection.
When using gas as fuel, also close the
main gas shut-off valve and safeguard
against unauthorised reopening.
Repairing components which fulfil a
safety function can compromise the
safe operation of your heating system.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Dispose after installation.
Advertisement
Related Manuals for Viessmann Vitodens 050-W
Summary of Contents for Viessmann Vitodens 050-W
- Page 1 VIESMANN Installation instructions for contractors Replacing the gas train for Vitodens 050-W Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Danger This symbol warns against the Before working on the equipment/heat- risk of injury.
- Page 2 Replacing the gas train 1. Pull cable from gas train A. 6. Start the boiler and check for tight- ness. 2. Undo union nut B and remove old Danger gas gasket. Escaping gas leads to a risk of explosion. 3. Undo 2 screws C and remove gas Check all gas equipment for train A.
- Page 3 Checking the CO content 4. Set the higher heating output (100 %) and check the CO con- tent. The CO content must be within the following range for the respective gas type: Gas type content in % 7.5 – 10.5 7.5 –...
- Page 4 1. Shut down the boiler, remove the 2. Mount front panel and start the flue gas analyser and close flue boiler. gas test port A. Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0...
