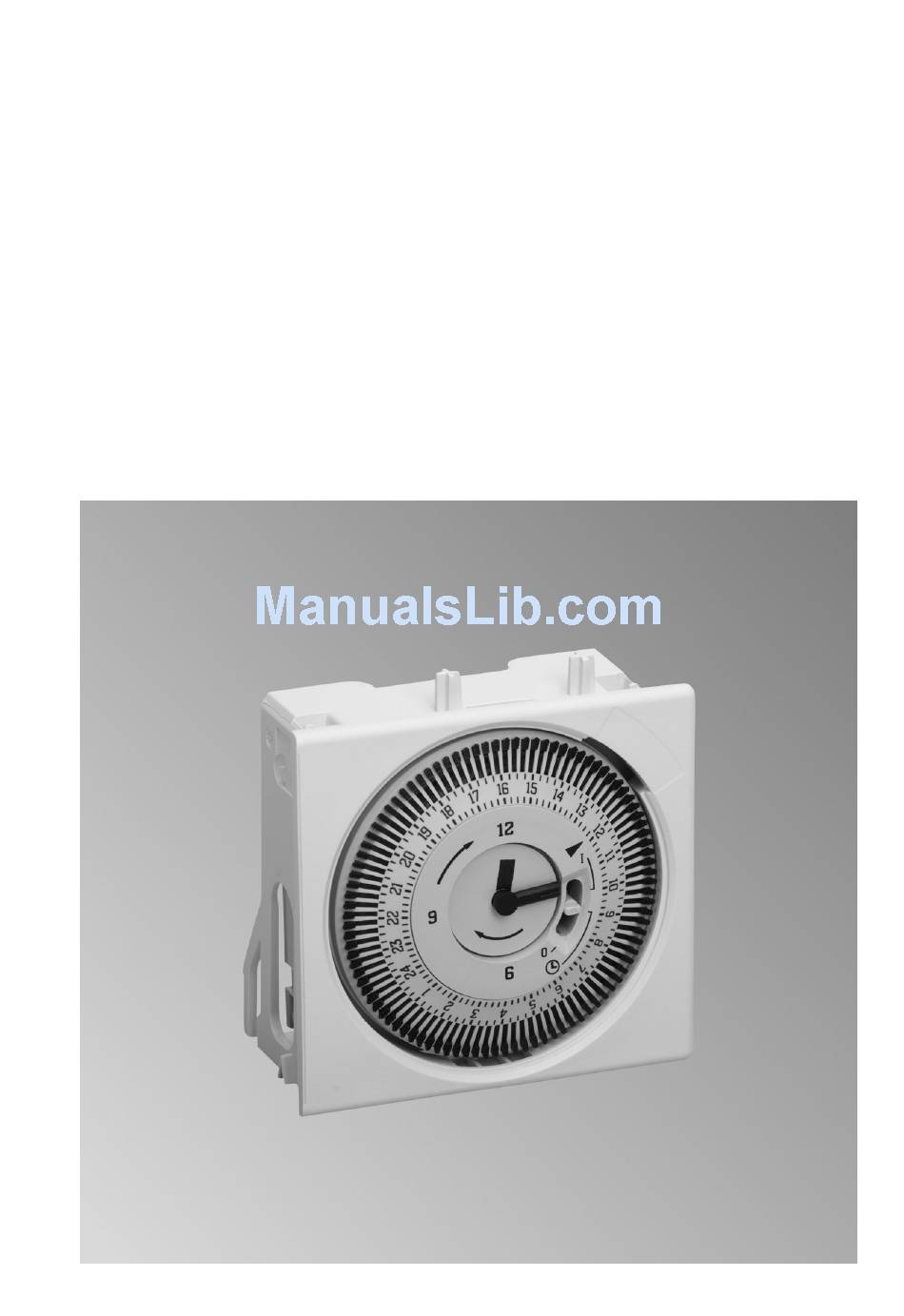

- Page 1 VIESMANN Operating instructions for the system user for Vitodens 050-W Analogue time switch Please keep safe. 5461 050 GB 1/2014...
- Page 2 Safety instructions For your safety Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained Connecting the appliance Danger ■ Connection and commissioning of the This symbol warns against the appliance may only be carried out by risk of injury.
- Page 3 Safety instructions For your safety (cont.) Danger In case of fire Hot surfaces can cause burns. ■ Never open the appliance. Danger ■ Never touch the hot surfaces of Fire presents a risk of burns and uninsulated pipes, fittings or explosion.
- Page 4 Safety instructions For your safety (cont.) Danger Danger Easily flammable liquids and The simultaneous operation of materials (e.g. petrol, solvents, the boiler and appliances that cleaning agents, paints or paper) extract air to the outside can can cause deflagration and fire. result in life threatening poison- Never store or use such materials ing due to reverse flow of the flue...

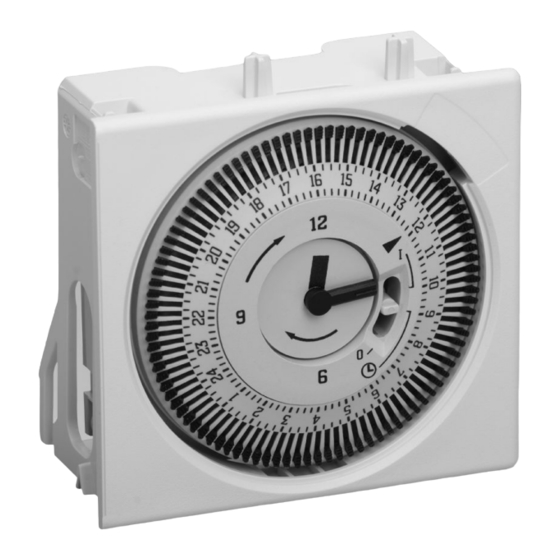

- Page 5 Setting the current time Turn ring 1 on the time switch until arrow 2 points to the current time and the hands of the clock show the current time.
- Page 6 Setting heating periods Note You can set several heating periods. For periods when central heating is required, pull the tabs out. Example: Central heating daily from 06:00 to 22:00 h A Central heating B No central heating...
- Page 7 Setting the operating mode selector The operating mode selector enables you to set 3 operating modes: ■ Centre position: Central heating according to the set heating periods ■ Lower end-stop: Always OFF (no central heating) ■ Upper end-stop: Constant central heating (when you wish to override the set heating peri- ods)
- Page 8 Contact your local contractor if you have any questions regarding the maintenance and repair of your system. You may, for example, find local contractors on the internet under www.viessmann.com. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford...
