Desco TB-3081 Installation, Operation And Maintenance Manual

Body Voltage Meter
Installation, Operation and Maintenance

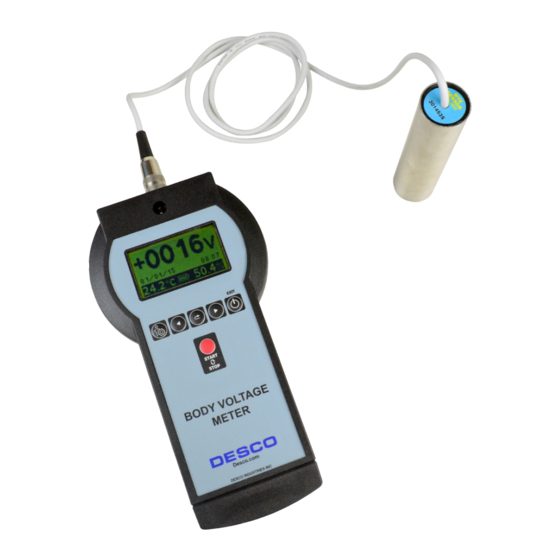

Figure 1. Desco 19431 Body Voltage Meter

Description

The Desco 19431 Body Voltage Meter is a portable
measuring system that allows analysis of charge levels
accumulated on the human body according to ANSI/
ESD STM97.2. The Body Voltage Meter measurement
may be logged using internal memory. Logged
measurements can be exported and further reviewed on
a PC. Graphs of measurements can be displayed on the
LCD display for quick evaluation.
Each Body Voltage Meter is calibrated with accepted
procedures and standards traceable to the National
Institute of Standards and Technology (NIST) and
includes a NIST certificate.
TB-3081 Page 1 of 6 June 2021
TECHNICAL BULLETIN TB-3081
DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178
DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Website:
"A compliance verification plan shall be established to
ensure the organization's fulfilment of the requirements
of the plan. Process monitoring (measurements) shall be
conducted in accordance with a compliance verification
plan that identifies the technical requirements to be
verified, the measurement limits and the frequency at
which those verifications shall occur. The compliance
verification plan shall document the test methods
used for process monitoring and measurements. If the
organization uses different test methods to replace
those of this standard, the organization shall be able
to show that the results achieved correlate with the
referenced standards. Where test methods are devised
for testing items not covered in this standard, these shall
be adequately documented including corresponding
test limits. Compliance verification records shall be
established and maintained to provide evidence of
conformity to the technical requirements. The test
equipment selected shall be capable of making the
measurements defined in the compliance verification
plan." (EN 61340-5-1 clause 5.2.4)

Packaging

1 Body Voltage Meter
1 Walking Test Probe
1 Black 8-Pin DIN to USB Cable, 1.8 m long
1 Black Ground Cord with Crocodile Clip, 5 m long
1 Lanyard with Hook
1 Certificate of Calibration
