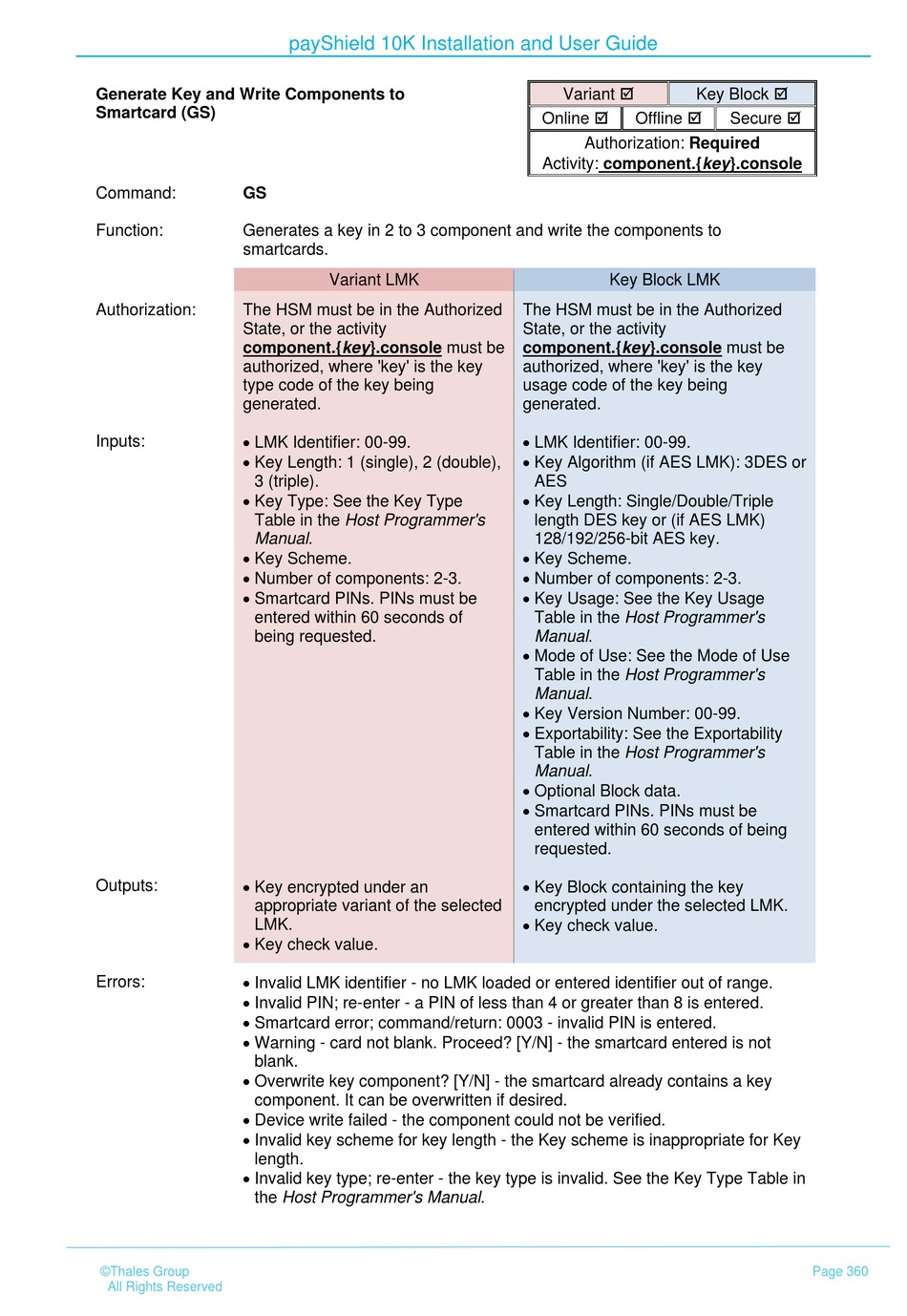

Generate Key and Write Components to
Smartcard (GS)
Command: GS
Function: Generates a key in 2 to 3 component and write the components to
smartcards.
Authorization: The HSM must be in the Authorized
State, or the activity
component.{key}.console must be
authorized, where 'key' is the key
type code of the key being
generated.
• LMK Identifier: 00-99.
Inputs:
• Key Length: 1 (single), 2 (double),
3 (triple).
• Key Type: See the Key Type
Table in the Host Programmer's
Manual.
• Key Scheme.
• Number of components: 2-3.
• Smartcard PINs. PINs must be
entered within 60 seconds of
being requested.
• Key encrypted under an
Outputs:
appropriate variant of the selected
LMK.
• Key check value.
• Invalid LMK identifier - no LMK loaded or entered identifier out of range.
Errors:
• Invalid PIN; re-enter - a PIN of less than 4 or greater than 8 is entered.
• Smartcard error; command/return: 0003 - invalid PIN is entered.
• Warning - card not blank. Proceed? [Y/N] - the smartcard entered is not
blank.
• Overwrite key component? [Y/N] - the smartcard already contains a key
component. It can be overwritten if desired.
• Device write failed - the component could not be verified.
• Invalid key scheme for key length - the Key scheme is inappropriate for Key
length.
• Invalid key type; re-enter - the key type is invalid. See the Key Type Table in
the Host Programmer's Manual.
©Thales Group
All Rights Reserved
payShield 10K Installation and User Guide
Variant LMK
Variant 
Online  Offline 
Authorization: Required
Activity: component.{key}.console
Key Block LMK
The HSM must be in the Authorized
State, or the activity
component.{key}.console must be
authorized, where 'key' is the key
usage code of the key being
generated.
• LMK Identifier: 00-99.
• Key Algorithm (if AES LMK): 3DES or
AES
• Key Length: Single/Double/Triple
length DES key or (if AES LMK)
128/192/256-bit AES key.
• Key Scheme.
• Number of components: 2-3.
• Key Usage: See the Key Usage
Table in the Host Programmer's
Manual.
• Mode of Use: See the Mode of Use
Table in the Host Programmer's
Manual.
• Key Version Number: 00-99.
• Exportability: See the Exportability
Table in the Host Programmer's
Manual.
• Optional Block data.
• Smartcard PINs. PINs must be
entered within 60 seconds of being
requested.
• Key Block containing the key
encrypted under the selected LMK.
• Key check value.
Key Block 
Secure 
