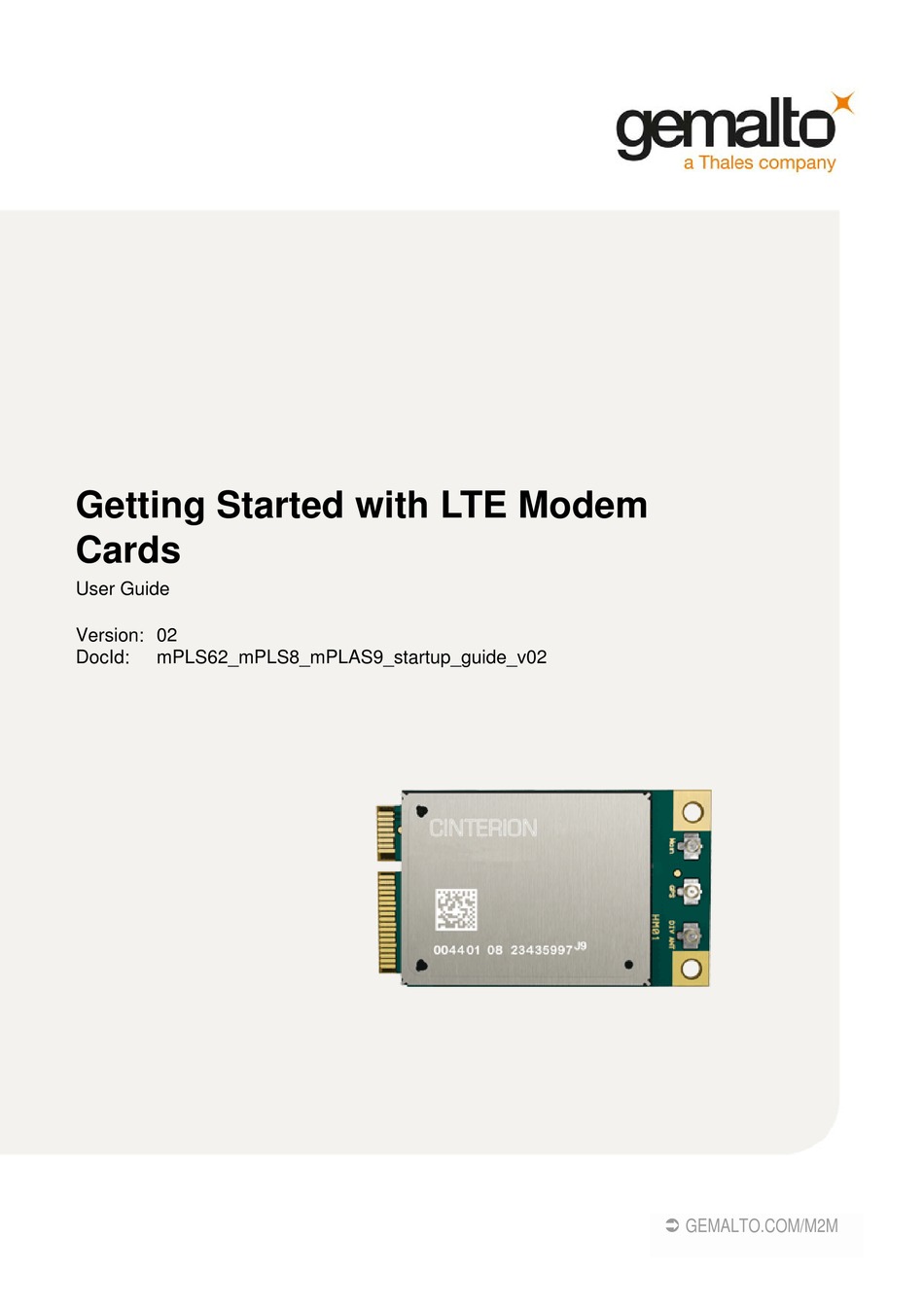

- Page 1 Getting Started with LTE Modem Cards User Guide Version: 02 DocId: mPLS62_mPLS8_mPLAS9_startup_guide_v02 GEMALTO.COM/M2M...
- Page 2 All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright © 2019, Gemalto M2M GmbH, a Thales Company Trademark Notice Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain countries.
-
Page 3: Table Of Contents
Getting Started with LTE Modem Cards Page 3 of 17 Contents Contents Document History ...................... 4 Introduction ......................... 5 Supported Products ................... 5 Related Documents ................... 5 Getting Started with LTE Modem Cards ..............6 Technical Requirements for Using LTE Modem Cards........6 Connecting the LTE Modem Card to the LTE Modem Card Adapter Board .. -
Page 4: Document History
Getting Started with LTE Modem Cards Page 4 of 17 0 Document History Document History New document: "Getting Started with LTE Modem Cards" Version 02 Previous document: "Getting Started with LTE Modem Cards" Version 01 Chapter What is new 3.1.2 Revised Figure 7 Revised... -
Page 5: Introduction
Getting Started with LTE Modem Cards Page 5 of 17 1 Introduction Introduction This document describes a ready-to-use development and test environment for the Gemalto M2M LTE Modem Cards. The development and test environment comprises the following hardware components • LTE Modem Card mPLAS9-W, mPLAS9-X, mPLS8-US, mPLS8-E or mPLS62-W •... -
Page 6: Getting Started With Lte Modem Cards
Getting Started with LTE Modem Cards Page 6 of 17 2 Getting Started with LTE Modem Cards Getting Started with LTE Modem Cards Technical Requirements for Using LTE Modem Cards • LTE Modem Card (for details see Figure 1 and [2]) •... -
Page 7: Connecting The Lte Modem Card To The Lte Modem Card Adapter Board
Getting Started with LTE Modem Cards Page 7 of 17 2.2 Connecting the LTE Modem Card to the LTE Modem Card Adapter Board Connecting the LTE Modem Card to the LTE Modem Card Adapter Board To properly connect the LTE Modem Card and all accessories to the LTE Modem Card Adapter Board please complete the steps listed below. - Page 8 Getting Started with LTE Modem Cards Page 8 of 17 2.2 Connecting the LTE Modem Card to the LTE Modem Card Adapter Board Top side Bottom side Antenna U.FL-R SMT connectors: Main antenna Rx Diversity/MIMO antenna GPS antenna ® Cinterion SMT module PIN 1 PIN 51...
- Page 9 Getting Started with LTE Modem Cards Page 9 of 17 2.2 Connecting the LTE Modem Card to the LTE Modem Card Adapter Board Figure 2: mPLS8-US mounted on LTE Modem Card Adapter Board mPLS62_mPLS8_mPLAS9_startup_guide_v02 2019-07-12 Confidential / Released...
-
Page 10: Start Up The Module
Getting Started with LTE Modem Cards Page 10 of 17 2.3 Start Up the Module Start Up the Module After connecting the E Modem Card to the LTE Modem Card Adapter Board as described in Section 2.2, the module can be switched on. Note: The USB drivers provided by Gemalto M2M need to be available. - Page 11 Getting Started with LTE Modem Cards Page 11 of 17 2.3 Start Up the Module mPLS8-E/US: The assignment of the module’s installed USB CDC ACM ports 1-4 (see Figure 3), the ASC0 UART interface and the possible Multiplex channels to the two AT command service instances MDM and APP as well as the NMEA streaming service interfaces is done by the AT command AT^SSRVSET.
- Page 12 Getting Started with LTE Modem Cards Page 12 of 17 2.3 Start Up the Module With PLAS9-W for example, Service Set 2 is configured as delivery default: • the MDM service is available at the USB0 interface (CDC ACM LTE USB Modem port) •...
- Page 13 Getting Started with LTE Modem Cards Page 13 of 17 2.3 Start Up the Module • For example, to connect to the mPLS9-W LTE Modem Card via USB interface, check the properties of the enumerated CDC ACM LTE USB serial port 1, call a terminal program on the PC and connect to the assigned COM port - in the below Figure 6 to COM port 47...
-
Page 14: Appendix
Getting Started with LTE Modem Cards Page 14 of 17 3 Appendix Appendix LTE Modem Card Adapter Board 3.1.1 Package content The LTE Modem Card Adapter Board will be delivered together with • 1 USB Cable (USB Connector A to USB Mini Connector B) •... -
Page 15: Lte Modem Card Adapter Board Schematic
Getting Started with LTE Modem Cards Page 15 of 17 3.2 LTE Modem Card Adapter Board Schematic Antenna connectors Power Supply PWR OK PWR_ON Main Diversity GNSS GND +3.3V Interface ® Reset PCI Express Mini Card system connector for LTE Modem Card Interface Switch Figure 7: LTE Modem Card Adapter Board Jumper and Connectors... -
Page 16: Mpls62_Mpls8_Mplas9_Startup_Guide_V02
Getting Started with LTE Modem Cards Page 16 of 17 3.2 LTE Modem Card Adapter Board Schematic Figure 8: Schematic of the LTE Modem Card Adapter Board mPLS62_mPLS8_mPLAS9_startup_guide_v02 2019-07-12 Confidential / Released... - Page 17 About Gemalto Since 1996, Gemalto has been pioneering groundbreaking M2M and IoT products that keep our customers on the leading edge of innovation. ® We work closely with global mobile network operators to ensure that Cinterion modules evolve in sync with wireless networks, providing a seamless migration path to protect your IoT technology investment.
