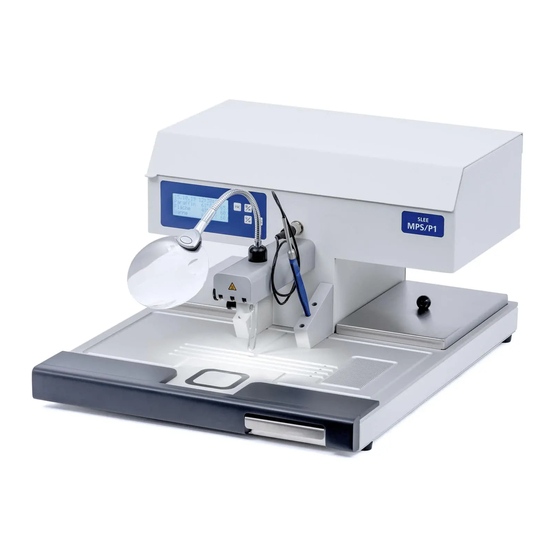

- Page 1 O P E R A T I N G M A N U A L E M B E D D I N G C E N T E R S M P S P I / M P S P I I M P S P , W , C / C X COMPACT AND MODULAR PARAFFIN EMBEDDING CENTER,...
- Page 2 2/28 Manual_MPS_2021-10-022.00_EN.docx...
-
Page 3: Table Of Contents
CONTENTS 1. INTENDED USE ..............4 2. SYMBOLS ..............4 3. SAFETY NOTES ..............5 4. COMPONENTS ..............6 5. SPECIFICATIONS ..............7 6. UNPACKING AND INSTALLATION ..............9 7. OPERATION ..............10 8. MAINTENANCE ............... 22 9. SERVICE ............... 23 10. -
Page 4: Intended Use
-5 °C). Optionally heated forceps for orientation of the specimen during embedding are available. MPS P I consists of a heated paraffin container (capacity 3.8 liters; 30 – 80 °C), a heated working area (450 x 240 mm; 30 – 80 °C), two heated cassette and mould storage containers (30 –... -
Page 5: Safety Notes
3. SAFETY NOTES Slee paraffin wax embedding center are provided with the following safety features: MPS P MPS P I • • Hand heat protectors In order to guarantee the performance of the device and ensure safe operation, the user must observe the instructions, recommendations and warnings. -
Page 6: Components
4. COMPONENTS Slee paraffin wax embedding centers are provided with the following standard components: MPS P I MPS P II MPS C or MPS P MPS W MPS CX • • Heated paraffin (wax) container • • Heated dispenser element Heated cassette / mould storage •... -
Page 7: Specifications
5. SPECIFICATIONS MPS P MPS P I MPS W MPS C MPS CX 115 V 230 V 115 V 230 V 115 V 230 V 115 V 230 V 115 V 230 V Nominal supply 115 V AC 230 V AC... - Page 8 MPS P MPS P I MPS W MPS C MPS CX Work area 270 x 370 mm 270 x 570 mm 80 cassettes, 120 cassettes, 250 moulds 375 moulds Cassette bath, approx. 120 approx. 320 cassettes, storage for moulds cassettes, approx.
-
Page 9: Unpacking And Installation
6. UNPACKING AND INSTALLATION 6.1 UNPACKING THE DEVICE Remove the upper cover and the upper supporting foams. Lift the device out of the wooden transportation case. The devices may only be lifted holding them at the sides of the base plate of the housing. For repacking use the original cases. -
Page 10: Operation
There are two kinds of HMI’s, first one for MPS C and MPS W and the second one for the MPS P version as shown below. The functions of the buttons are explained later in the respective part of this chapter. HMI MPS C, MPS CX & MPS W HMI MPS P, MPS P I 10/28 Manual_MPS_2021-10-022.00_EN.docx... - Page 11 • MPS P Paraffin / Surface / Cooling Spot (only On / Off) • MPS P I Paraffin / Surface / Bowl / Cooling Spot (only On / Off) Devices which are not equipped with every single function have an empty line instead of actual and target temperature for the built-in feature, e.g., MPS C only has a line for...
- Page 12 7.4 MAIN MENU The table Main Menu provides the possible settings of the MPS P and MPS P I software. The columns Cursor, Function and Settings are a representation of the characters shown on the display.
- Page 13 Set actual date Date 17.09.10 Set actual time Time 16:45:00 Change language (English, German) Language English Setting of Contrast for the display Contrast Software Version and Date Version Switch to configuration menu (Configuration per SLEE medical GmbH Configuration authorized technician) Manual_MPS_2021-10-022.00_EN.docx...
- Page 14 Main Menu display for MPS P I: Explanation Cursor Function Settings Manual activation of Standby mode > Standby Manual activation of Operation mode Operation Timer MPS P I Timer Tank heating function On / Off Paraffin Adjustment of tank heating temperature Paraffin Temp.
- Page 15 (Configuration per SLEE medical GmbH Configuration authorized technician) With (for MPS P and MPS P I ) you can move the cursor (column Cursor) to the appropriate menu item (column Function). By pressing (for MPS P II ) you can activate the setting and the value begins to flash. Now the value can be adjusted...
- Page 16 7.5 ACTUAL DATE AND TIME Before you can use the timer function as explained in chapter 7.6 TIMER you need to adjust the actual time and date to match your current location. Following explanation is valid for all devices out of the MPS Series. Go into the Main Menu and use to go to the line showing Date.
- Page 17 The design of the MPS P and MPS P I allows two ways of working with your device. The first common one is using the timer, which is explained in chapter 7.6 TIMER. This allows you to have a ready to use unit in the morning with liquid paraffin in it.
- Page 18 As mentioned in chapter 7.7 HEATED PARAFFIN (WAX) CONTAINER you can heat the working surface of your MPS P or MPS P I to allow you to place and align your tissue sample while the paraffin keeps liquid. Even the temperature can be influenced in the Main Menu.
- Page 19 7.11 HEATED PARAFFIN DISPENSER (MPS P and MPS P I module) The heated paraffin dispensing arm can be operated manually or via a footswitch. Manual operation The heated paraffin dispensing arm is equipped with a hanger directly behind the dispense outlet.
- Page 20 7.15 HEATED FORCEPS (MPS P and MPS P I module) [if device is equipped with this accessory] The device can also be equipped with electrically heated forceps. The forceps will be activated by...
- Page 21 7.16 HEATED CASSETTE/MOULD STORAGE AREA (MPS W module) The MPS W has two areas where you can store and preheat your steel and plastic cassettes. Usually, the upper area is for preheating the steel cassettes and the lower area is used for the plastic cassettes. Both areas can be regulated separately in the Main Menu by going down to the items Upper, upper Temp.
-
Page 22: Maintenance
Paraffin is flammable and therefore must be handled with care. Avoid spillage of liquid paraffin. All components of the Slee embedding center MPS P I and MPS P II that come into contact with paraffin and the interior of the devices are carefully sealed to prevent wax from entering. -
Page 23: Service
If it is necessary to return the device, it must be cleaned before delivery. It must be returned in its original packing. If the device or parts thereof are sent back in a dirty condition, SLEE medical GmbH reserves the right to return the parts to the debit of the customer. -
Page 24: Optional Accessories
10. OPTIONAL ACCESSORIES MPS P I MPS P II MPS C Heated Forceps • • #10196000 (2.5 mm) #10196001 (1.25 mm) Anatomic Forceps, 130 mm, stainless steel • • #30030090 (pointed) #30030091 (blunt) Heated Forceps straight #10196012 (0.5 mm) •... - Page 25 Base moulds (stainless steel) #30030050 7 mm x 7 mm x 7 mm #30030051 30 mm x 24 mm x 7 mm • • #30030052 15 mm x 15 mm x 7 mm #30030053 24 mm x 24 mm x 7 mm #30030054 37 mm x 24 mm x 7 mm #30030056...
-
Page 26: Warranty
11. WARRANTY SLEE medical GmbH guarantees that the product delivered has been subjected to a comprehensive quality control procedure, and that the product is faultless and complies with all technical specifications and / or agreed characteristics warranted. SLEE medical GmbH guarantees that the device is manufactured under an ISO 9001:2015 and ISO 13485:2016 quality management system. - Page 27 Notes...
- Page 28 SLEE medical GmbH • Am Neuberg 14 55268 Nieder-Olm • Germany www.slee.de T: +49 (0) 6136 76997-0 E: mail@slee.de www.slee.de YouTube LinkedIn Instagram INS3200GB ∙ Manual_MPS_2021-10-022.00_EN...
